Description
| Specifications | |
|---|---|
| Graphics Engine | |

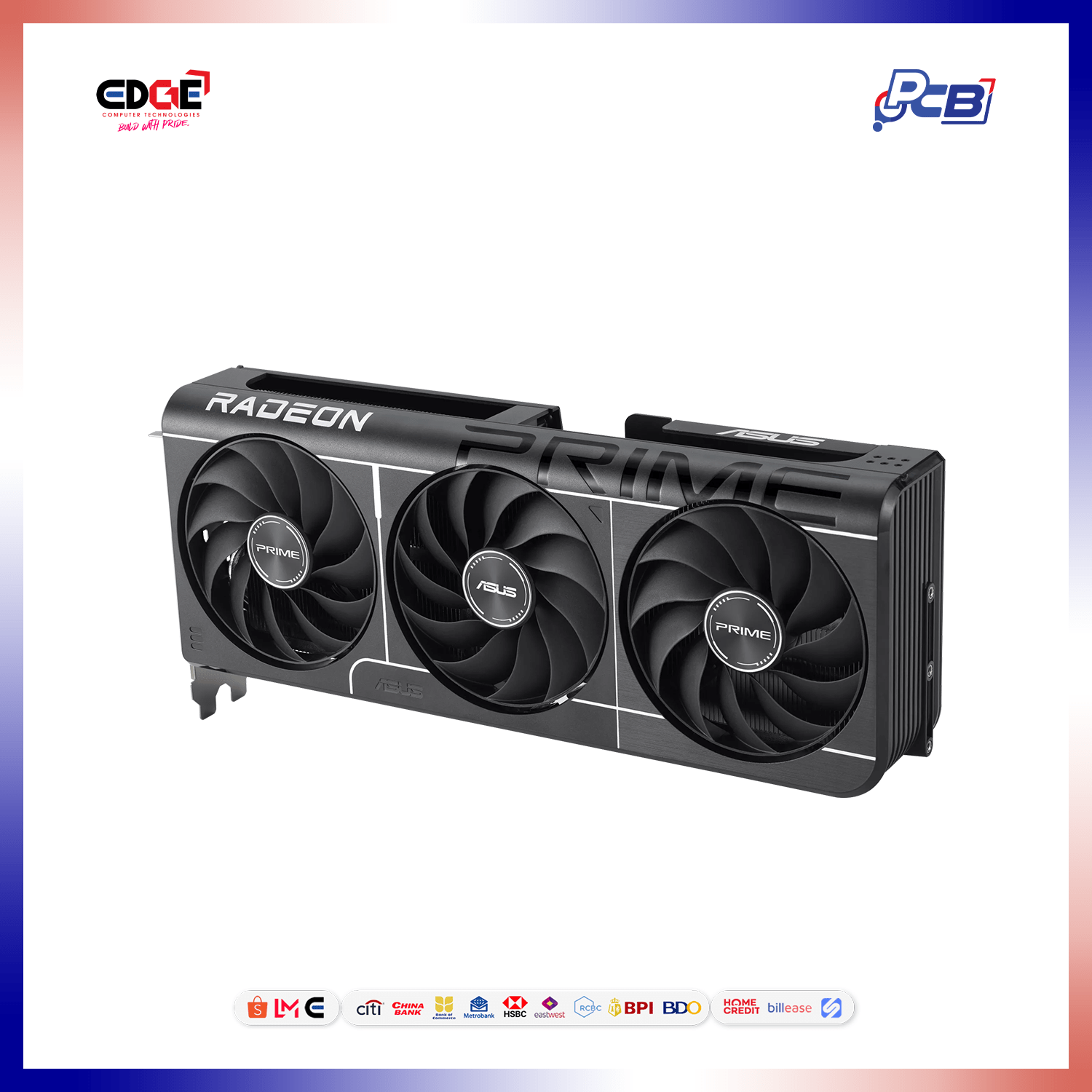

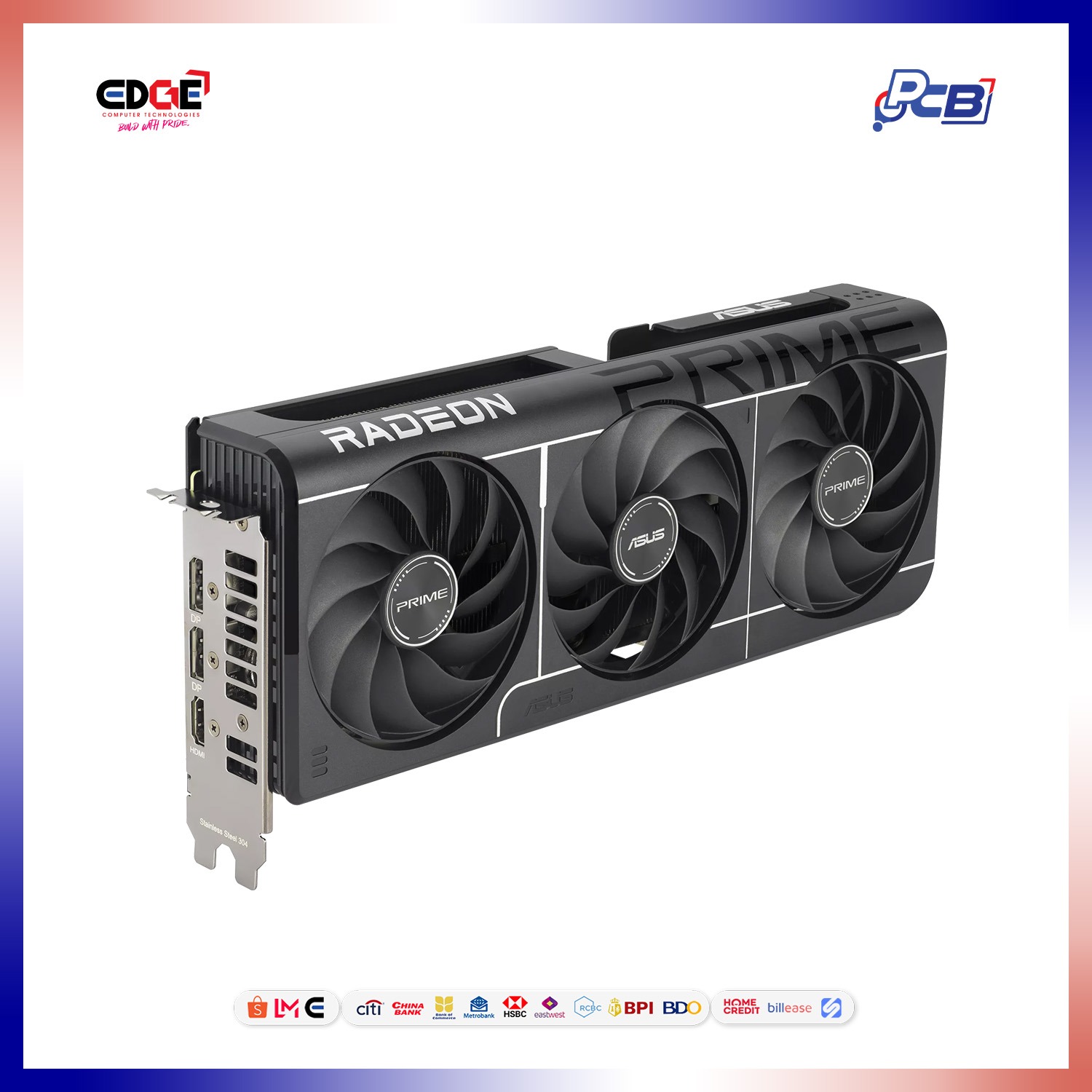

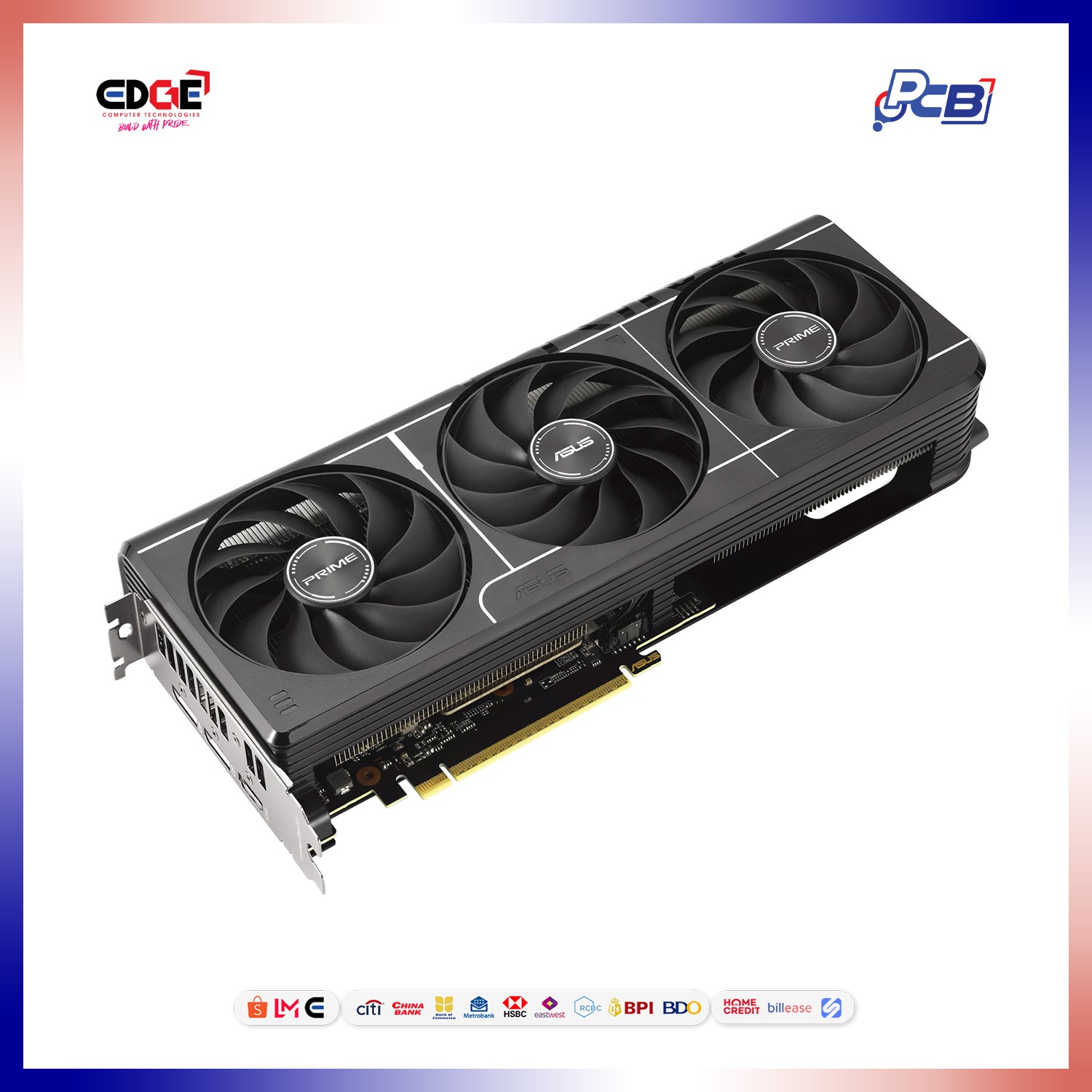

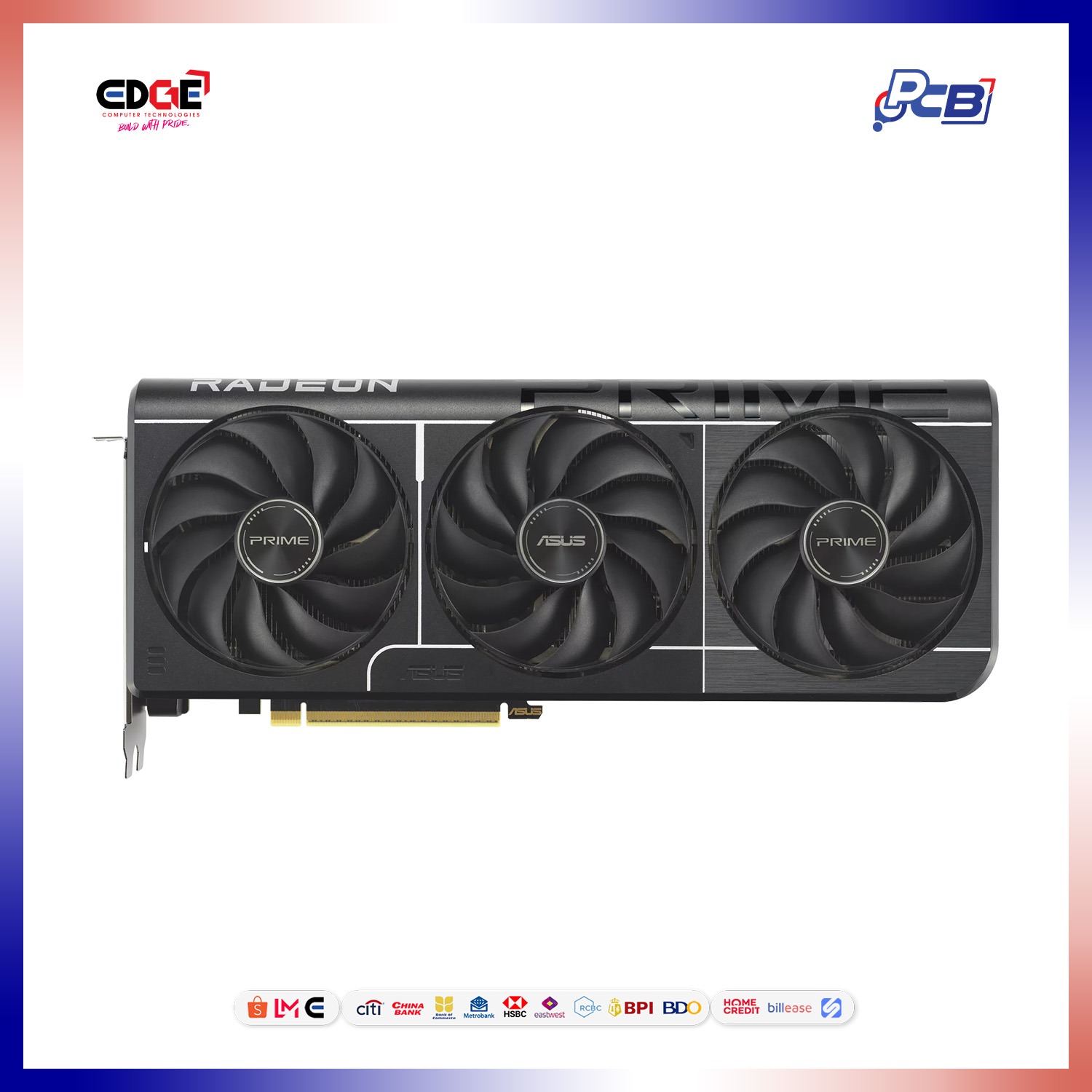

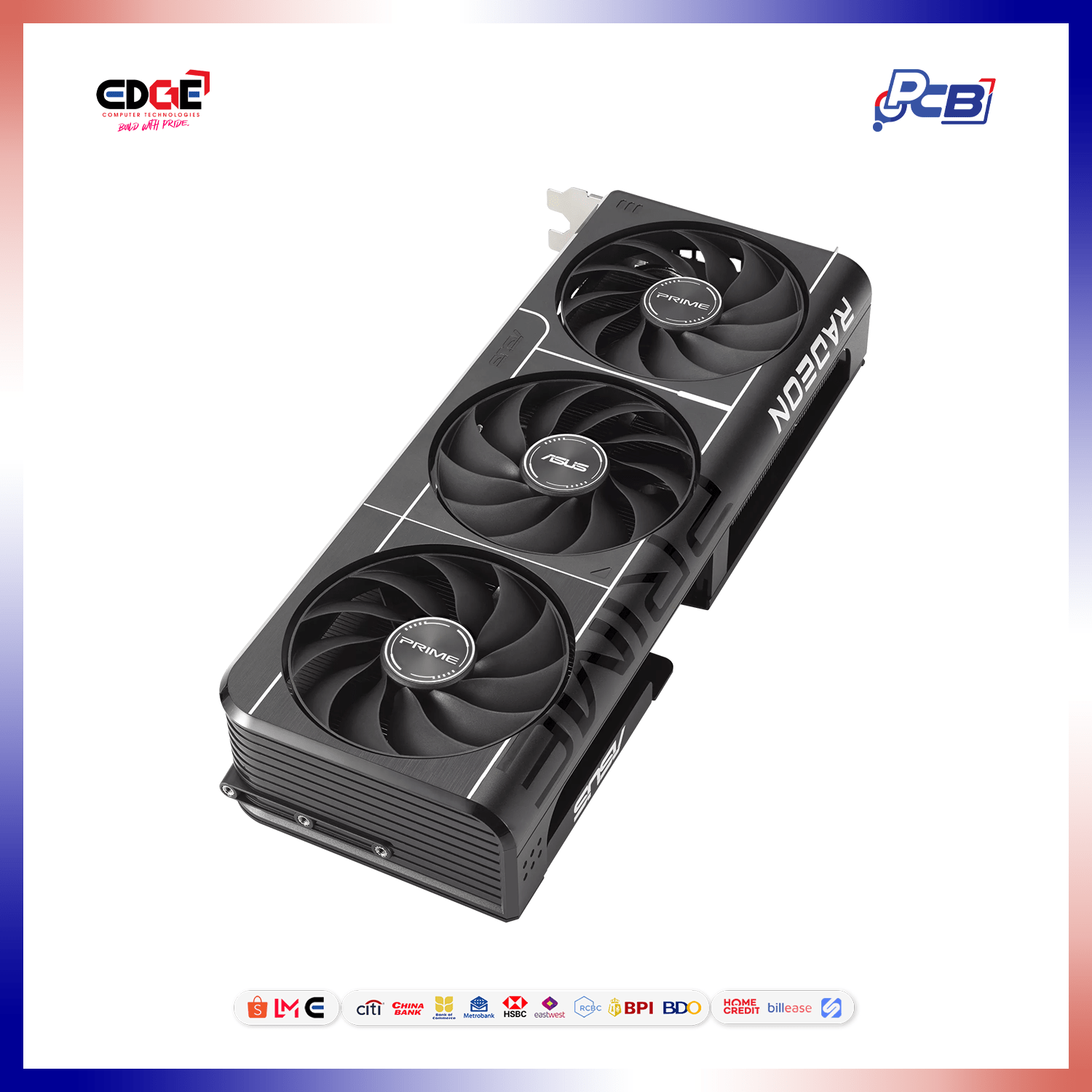

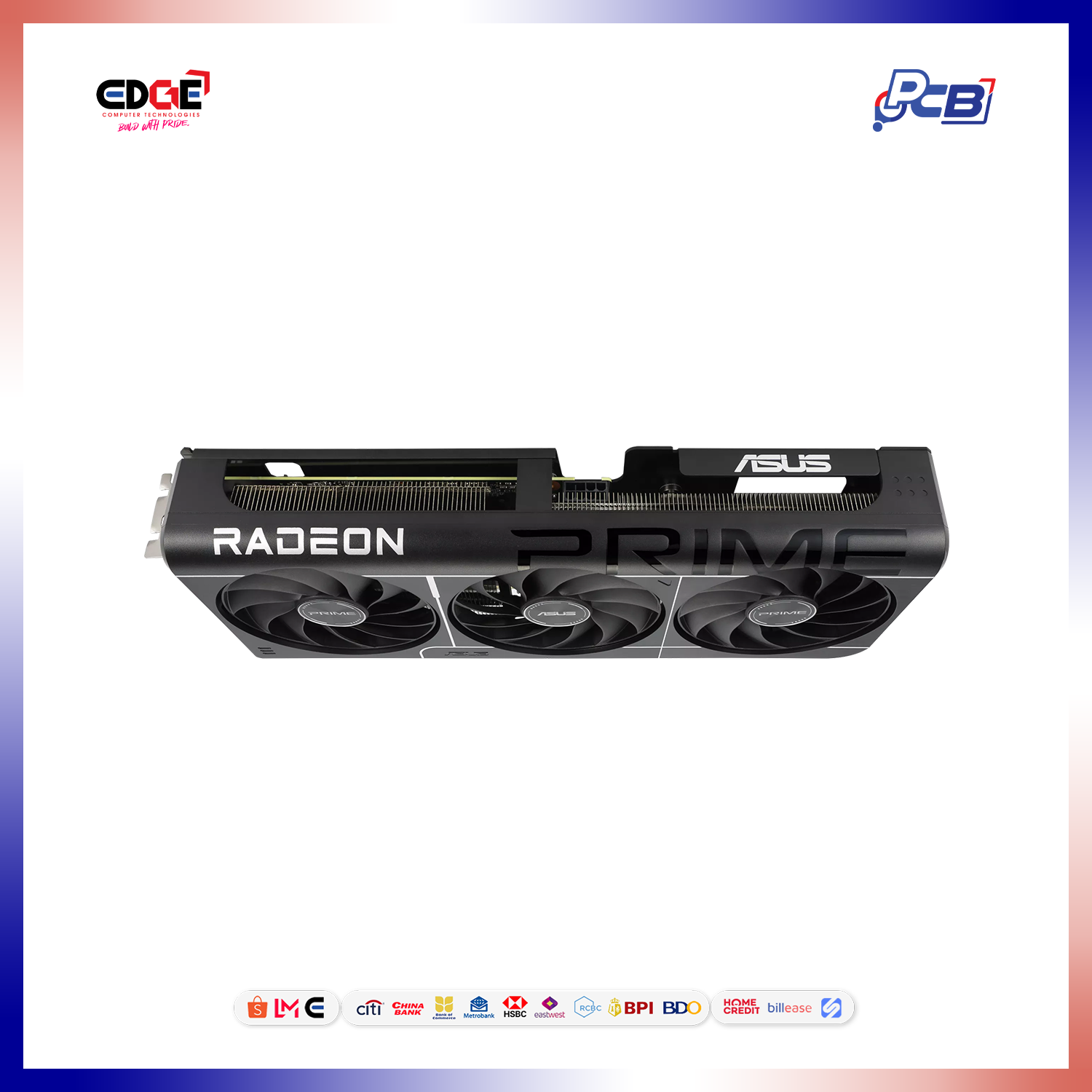

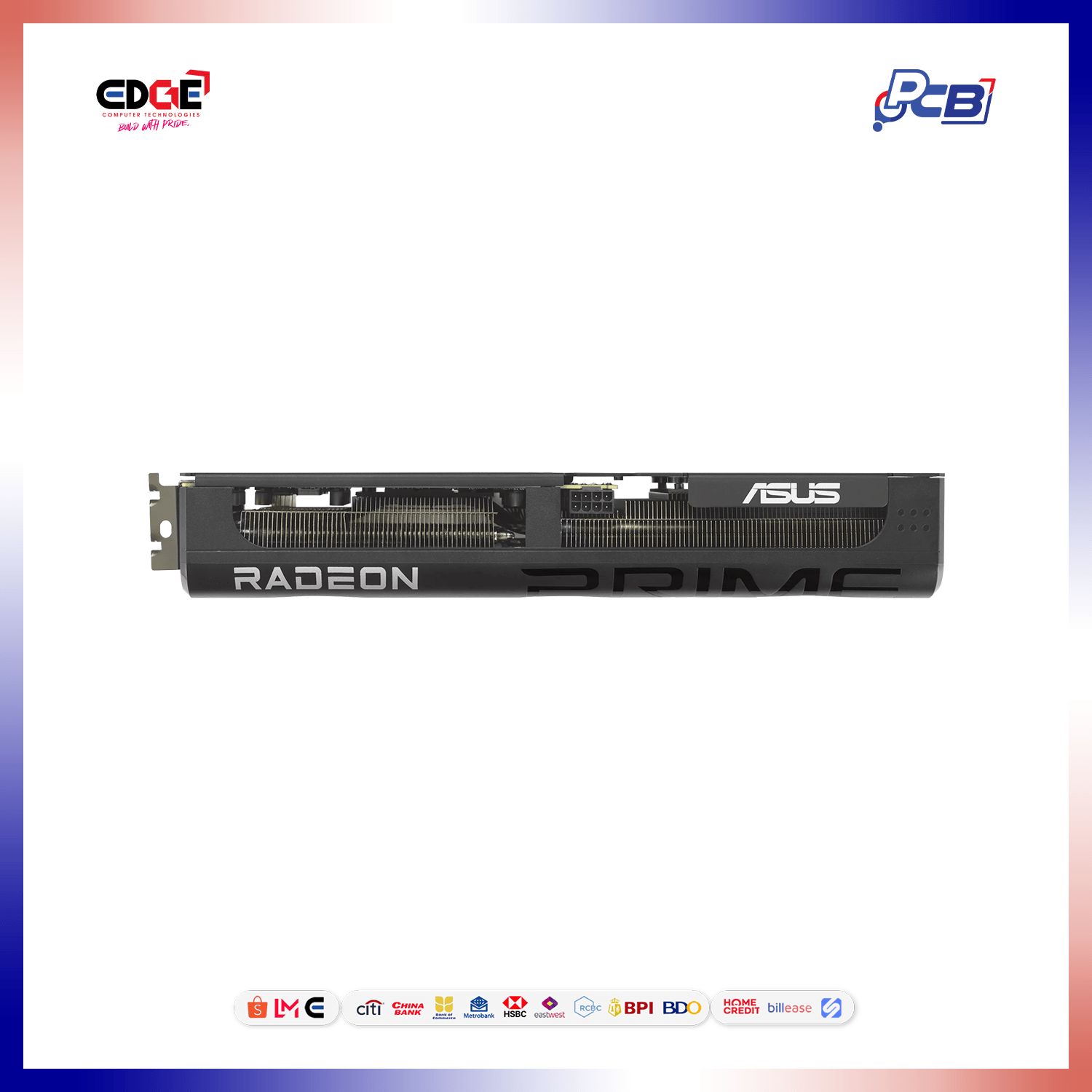

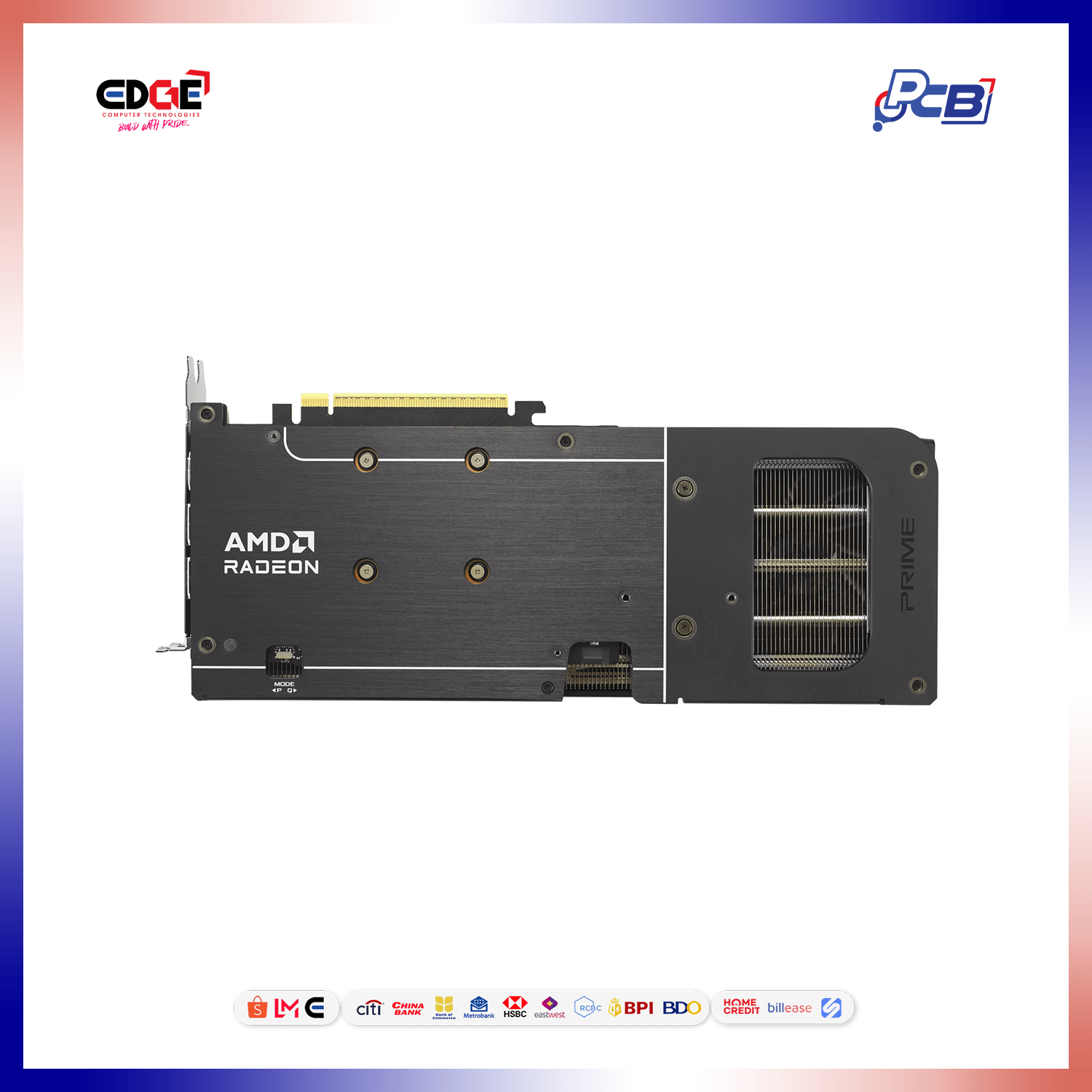

| Model | PRIME-RX9060XT-O16G |
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Stream Processors | 2048 |
| Memory | |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Interface | 128-bit |
| Engine Clock | |
| OC Mode (GPU Tweak III) | Up to 3330 MHz (Boost Clock) / Up to 2760 MHz (Game Clock) |
| Default Mode | Up to 3310 MHz (Boost Clock) / Up to 2740 MHz (Game Clock) |
| Display & Connectivity | |
| Digital Max Resolution | 7680 × 4320 |

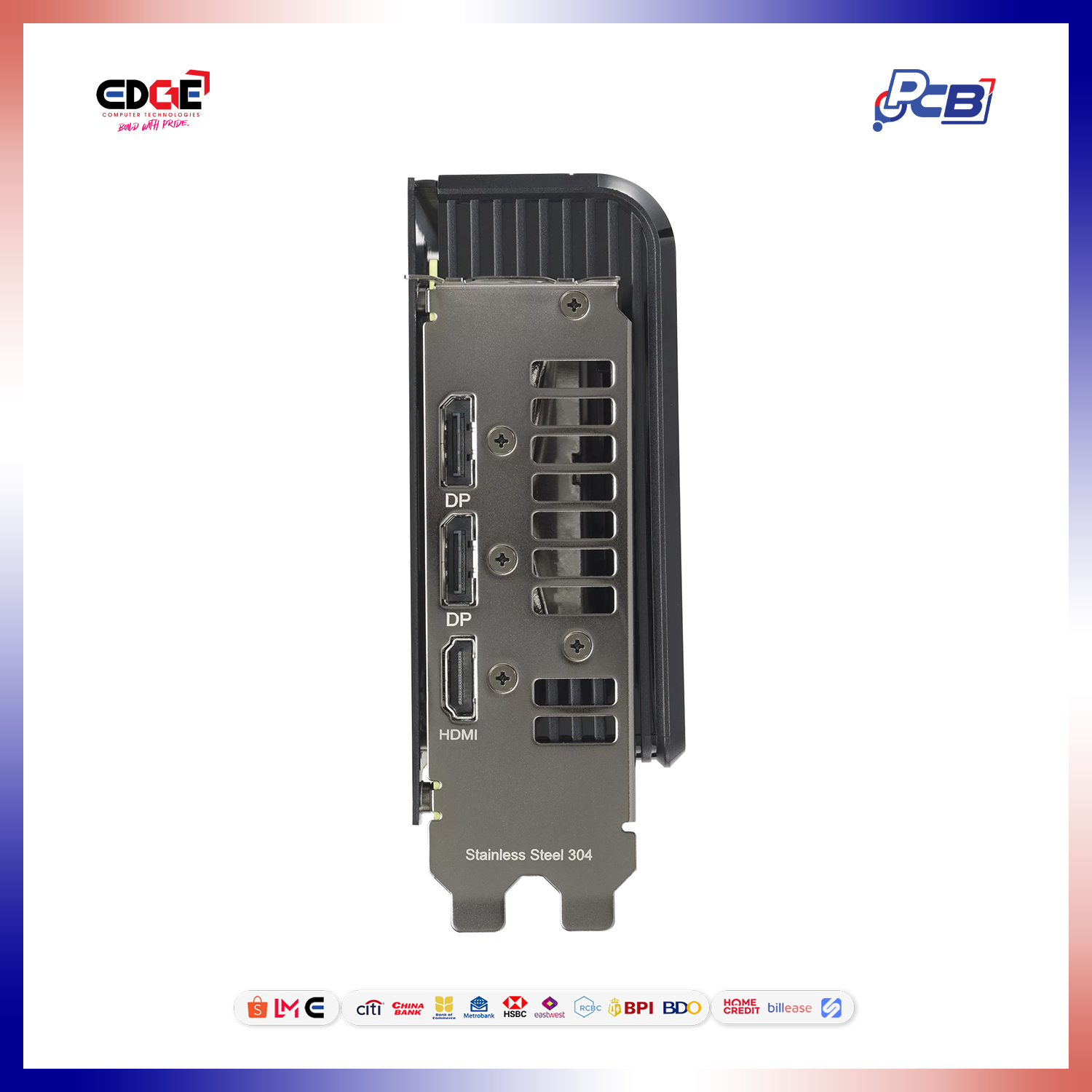

| HDMI | 1 × Native HDMI 2.1b |
| DisplayPort | 2 × Native DisplayPort 2.1a |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 3 Displays |
| Multi-GPU Support | |
| NVLink / CrossFire Support | No |
| Power | |
| Recommended PSU | 550W |
| Power Connectors | 1 × 8-pin |
| Physical Specifications | |
| Slot | 2.5-Slot |
| Dimensions | 304 × 126 × 50 mm |
| Software | |
| Supported Software | ASUS GPU Tweak III & Drivers |
| Software Availability | Please download the latest software from the ASUS support site. |
| Accessories | |
| Included Accessories | 1 × Thank You Card 1 × Speedsetup Manual |
| Notes | |
| Power Recommendation | ASUS’s wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored recommendation, use the ASUS PSU wattage selection tool. |
| Game Clock | The expected GPU clock when running typical gaming applications at typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Boost Clock | The maximum frequency achievable on the GPU during a burst workload. Actual boost clock frequency and sustainability vary depending on thermal conditions, applications, and workloads. |
| Specification Disclaimer | All specifications are subject to change without notice. Product availability and exact specifications may vary by market and supplier. |
