Description
Specification:
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Model Name | RX9060XT 16G-L/OC |
| Series | Hellhound |
| Stream Processor | 2048 Units |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20.0 Gbps |
| Memory Interface | 128-bit |
| Engine Clock (OC) | up to 2740MHz (Game)¹ up to 3310MHz (Boost)² |
| Engine Clock (STD/Silent) | up to 2620MHz (Game)¹ up to 3230MHz (Boost)² |
| Bus Standard | PCIE 5.0 x16 |

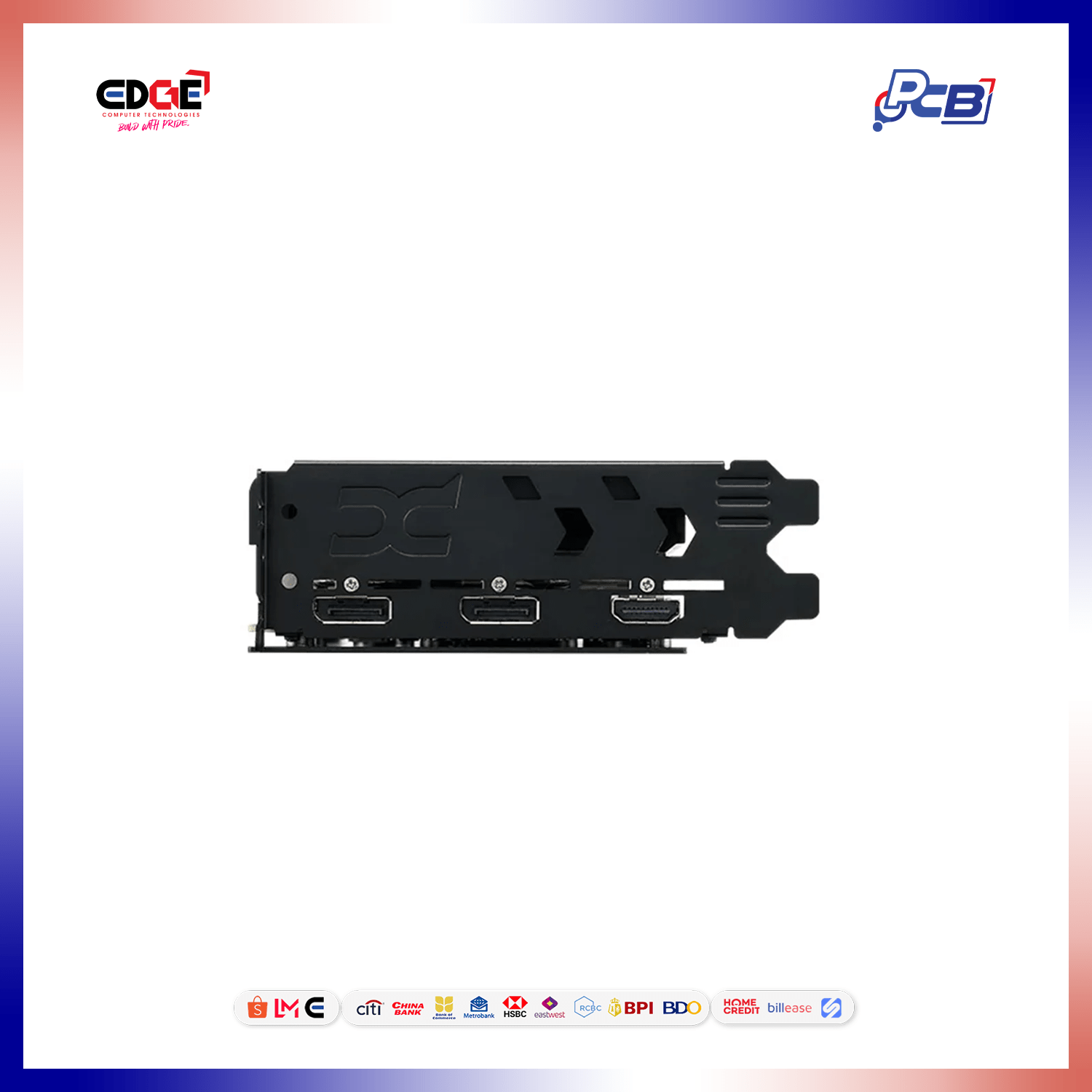

| Standard Display Connectors | 1 x HDMI 2.1b, 2 x DisplayPort 2.1a |
| DirectX® Support | 12 |
| OpenGL | 4.6 |
| AMD Eyefinity Technology | Support |
| AMD Stream Technology | Support |
| AMD Smart Access Memory | Support |
| Maximum Resolution (DisplayPort) | 7680 × 4320 |
| Maximum Resolution (HDMI) | 7680 × 4320 |
| Board Dimensions | 310mm × 100mm × 40mm 330mm × 120mm × 40mm (with bracket) |
| Slot | 2 |
| Minimum System Power Requirement | 550W |
| Extension Power Connector | One 8-pin PCI Express Power connector |
| Remark | ¹ Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. ² Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
