Description
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2452 MHz (MSI Center)

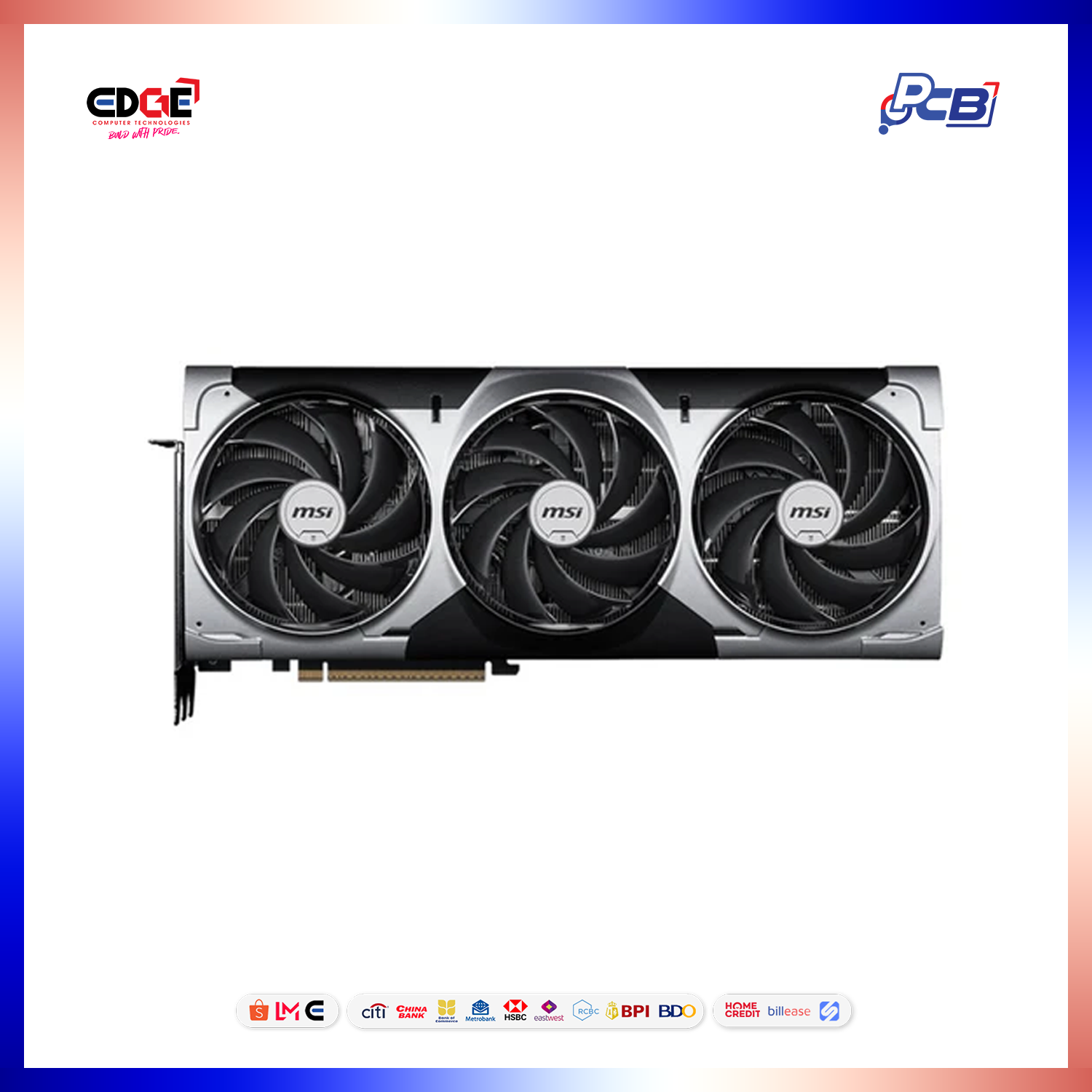

Boost: 2437 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

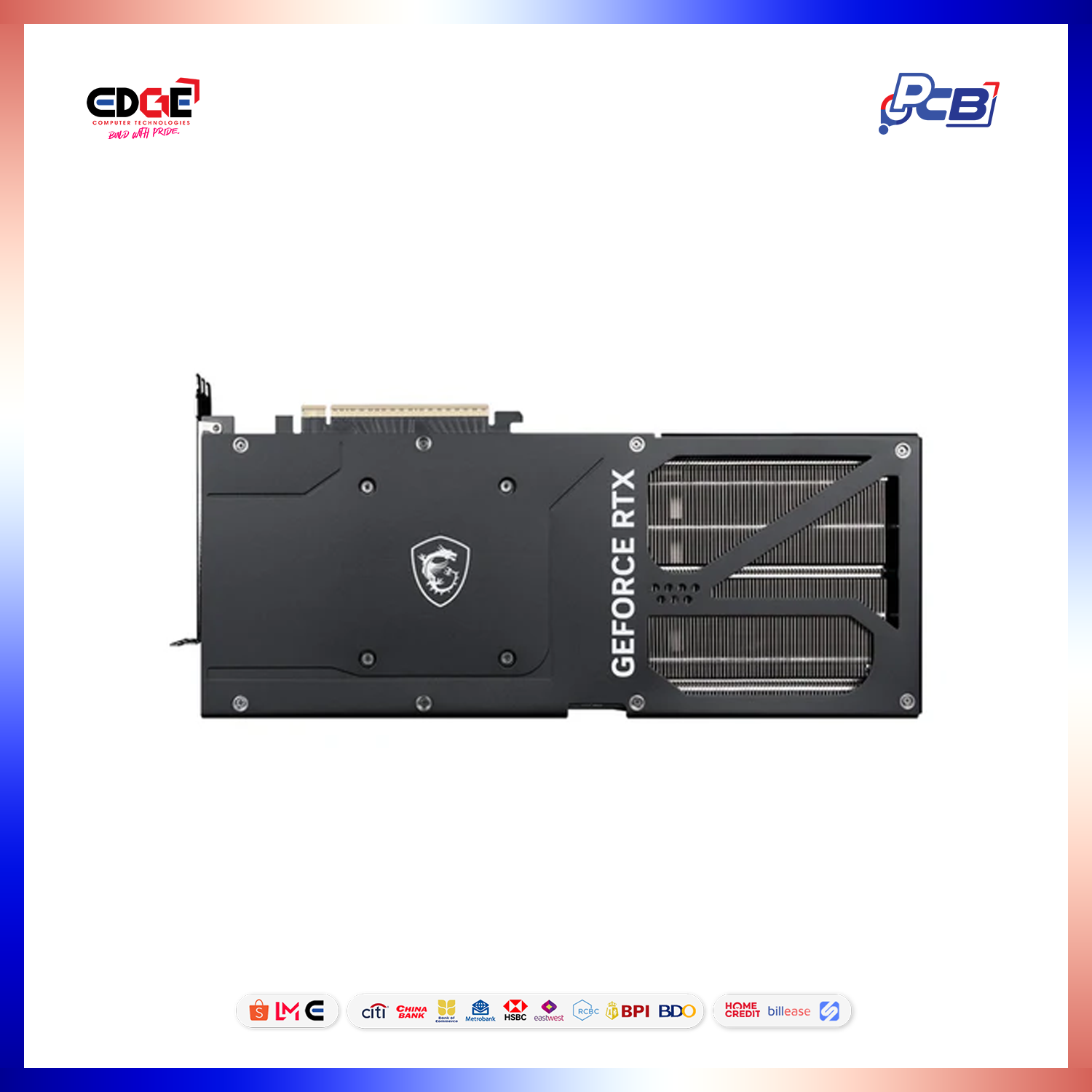

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications:
| Marketing Name |

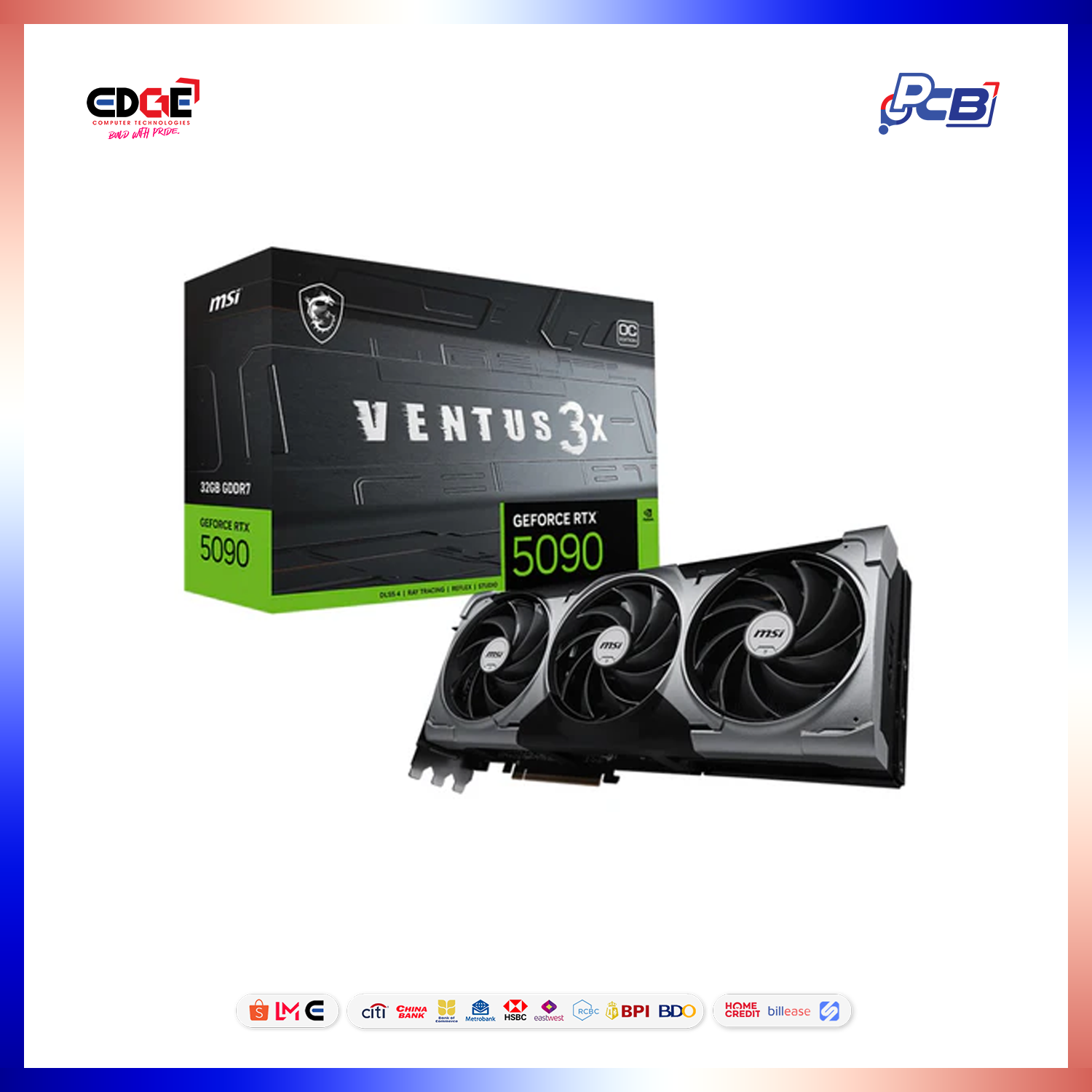

GeForce RTX™ 5090 32G VENTUS 3X OC
|
| Model Name |
G5090-32V3C
|
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5090
|
| Interface |
PCI Express® Gen 5
|
| Core Clocks | Extreme Performance: 2452 MHz (MSI Center) Boost: 2437 MHz |
| CUDA® CORES |
21760 Units
|
| Memory Speed |
28 Gbps
|
| Memory |
32GB GDDR7
|
| Memory Bus |
512-bit
|

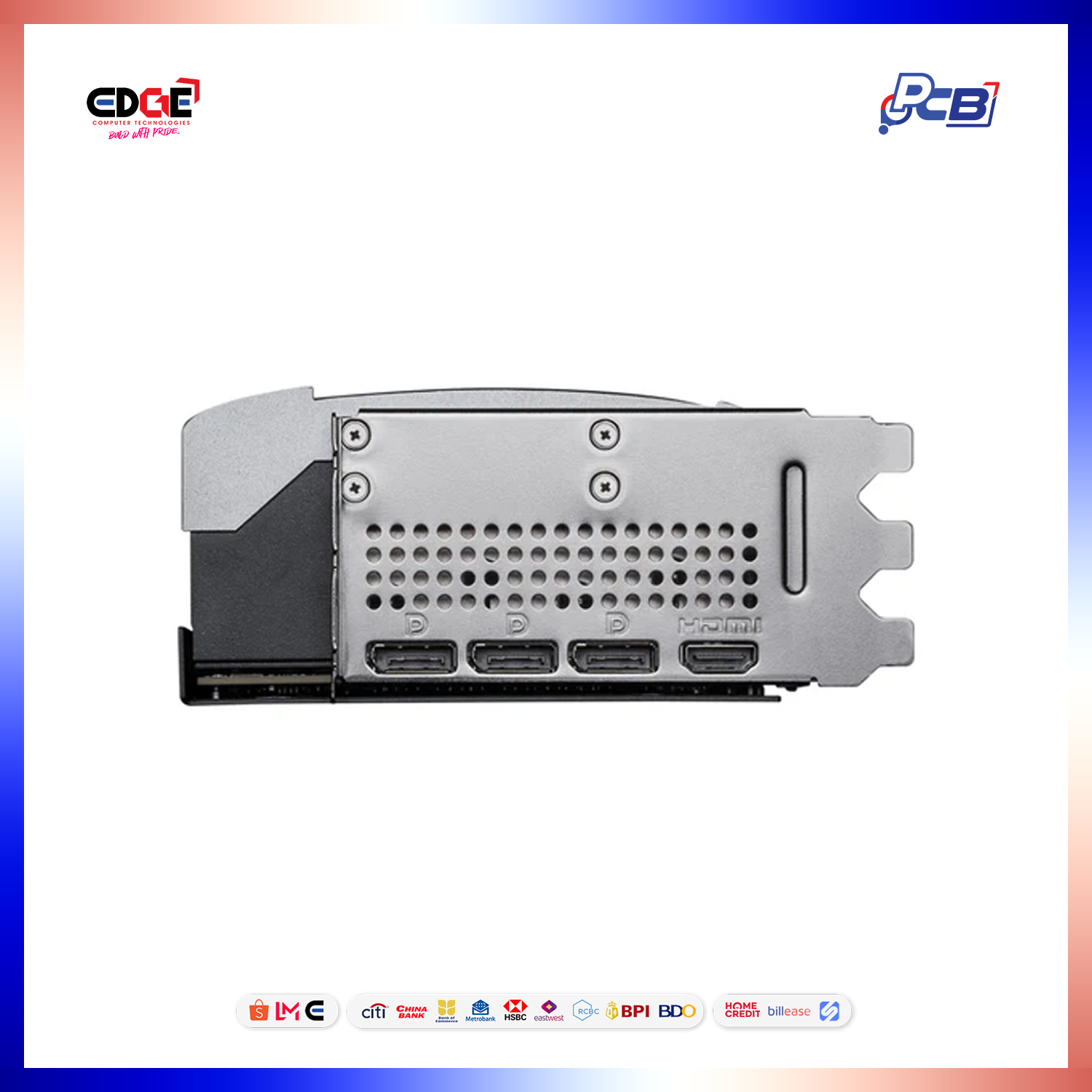

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support |
Y
|
| Power consumption |
575 W
|
| Power connectors |

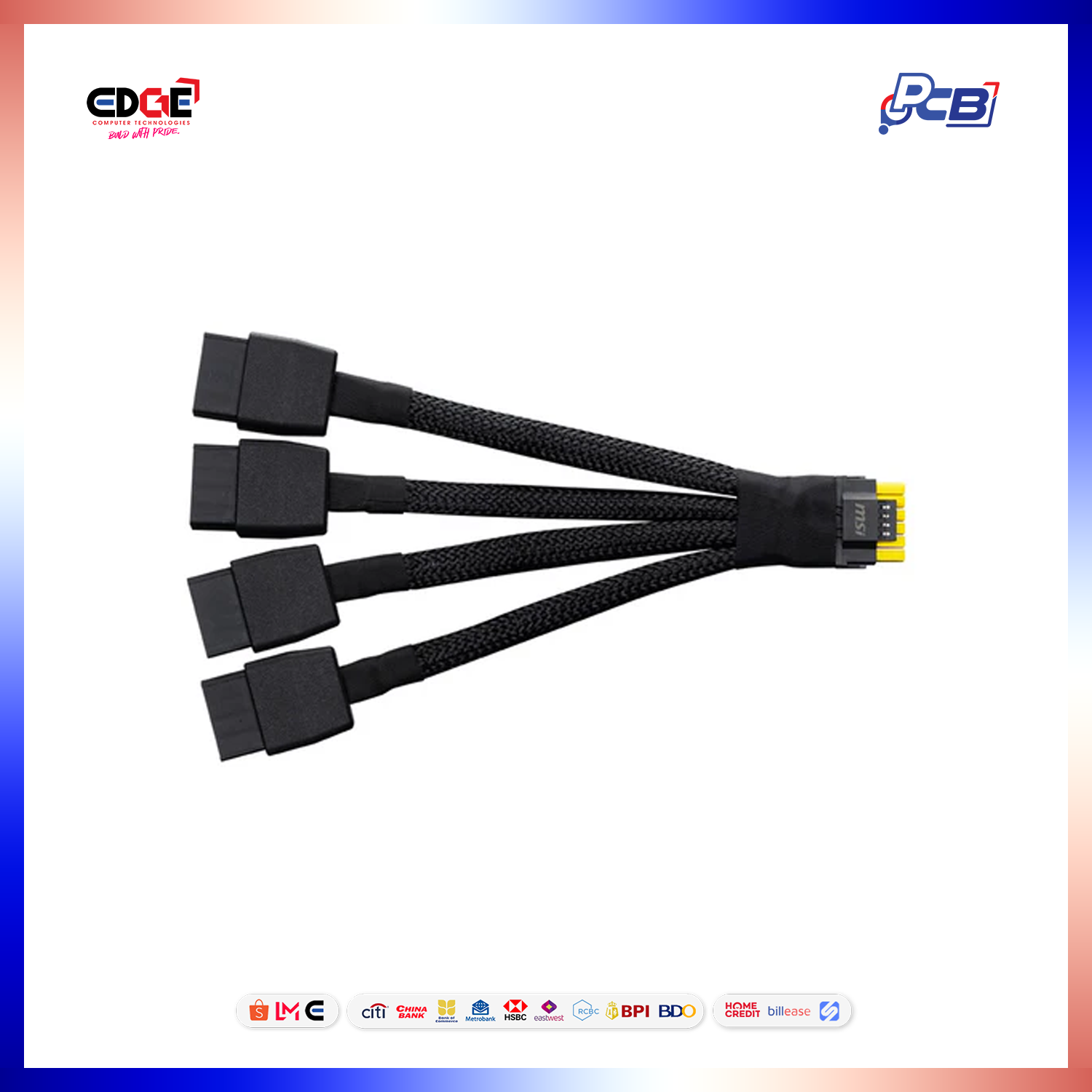

16-pin x 1
|
| Recommended PSU |
1000 W
|
| Card Dimension (mm) |
325 x 139 x 67 mm
|
| Weight (Card / Package) |
1875 g / 2489 g
|
| DirectX Version Support |
12 Ultimate
|
| OpenGL Version Support |
4.6
|
| Maximum Displays |
4
|
| G-SYNC® technology |
Y
|
| Digital Maximum Resolution |
7680 x 4320
|
