Description
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5060 |
| Core Clock | 2512 MHz (Reference Card: 2497 MHz) |
| CUDA® Cores | 3840 |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 × 4320 |
| Multi-View | 4 |
| Card Size | L=199 W=116 H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Power Connectors | 8-Pin × 1 |
| PCIe Connector Length | Standard OC: Shortened x8 length with open/cutout section | MAX: Full-length x16 physical connector (both operate at x8 electrically) |

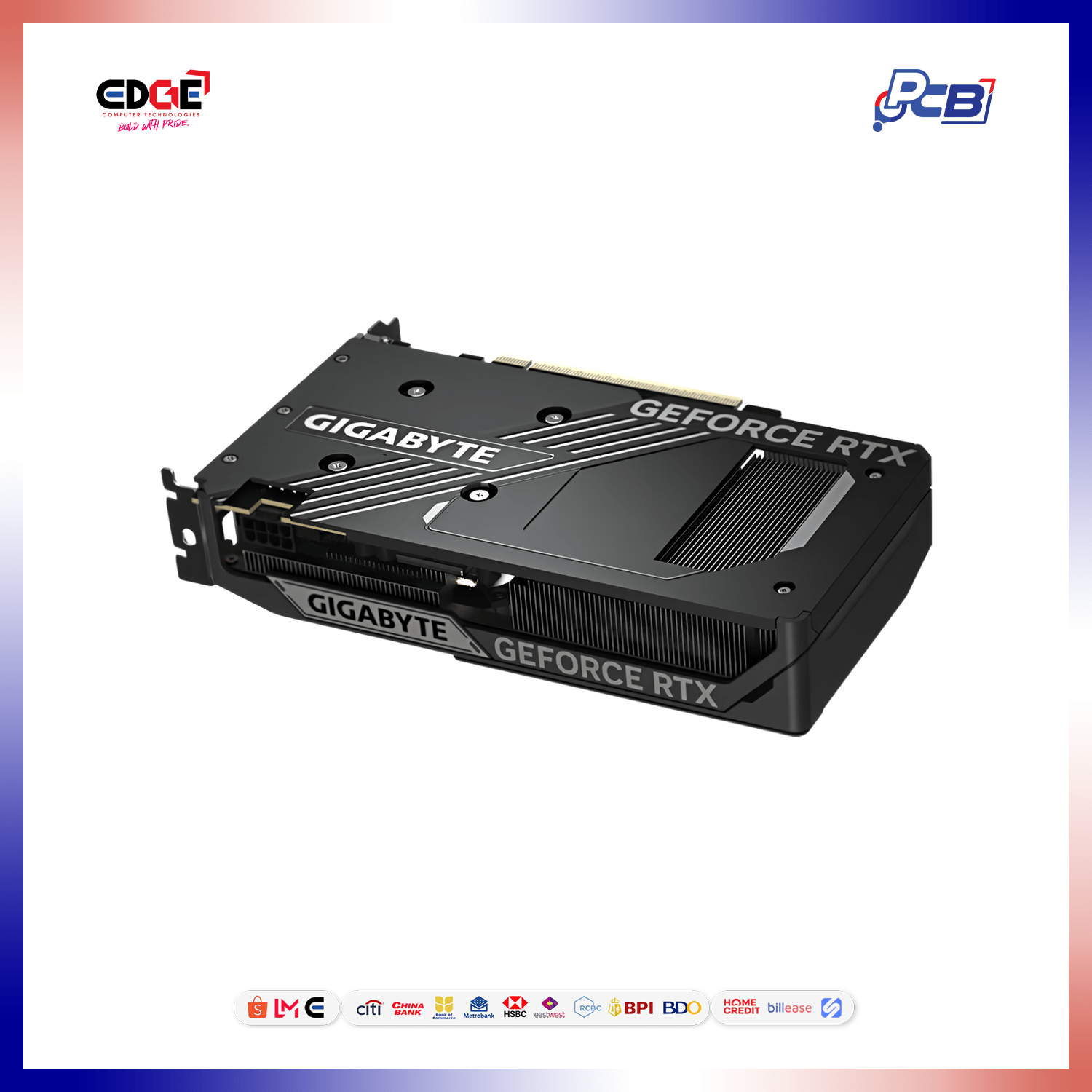

| Build / Backplate | Standard OC: Standard backplate design | MAX: White stripe on backplate + full-length PCIe connector for additional physical support |
| Output | DisplayPort 2.1b × 3HDMI 2.1b × 1 |
| Accessories | Quick Guide |
