Description
Overview
| Specification | Details |
|---|---|

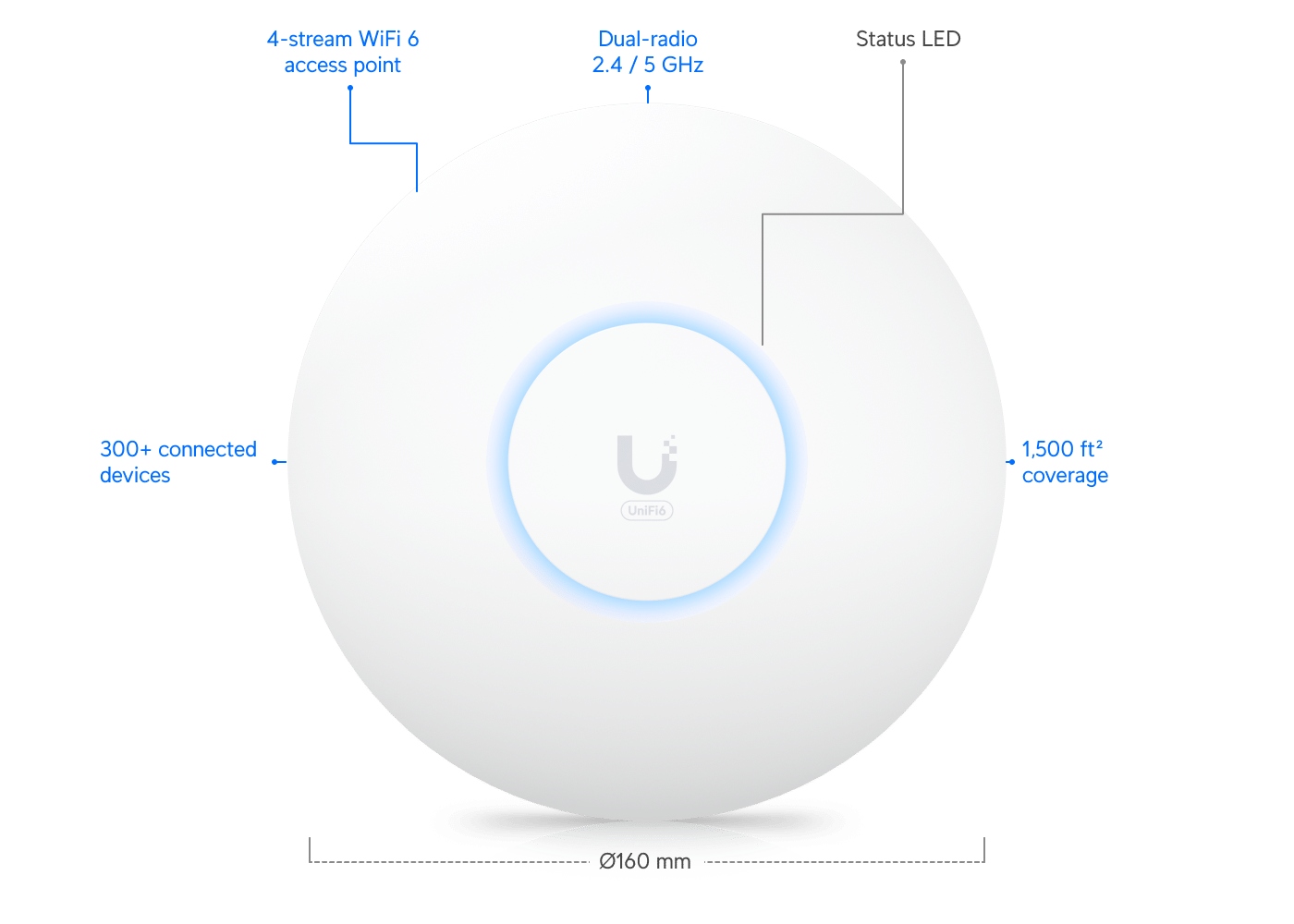

| Dimensions | ⌀160 x 33 mm (⌀6.3 x 1.3″) |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | GbE |

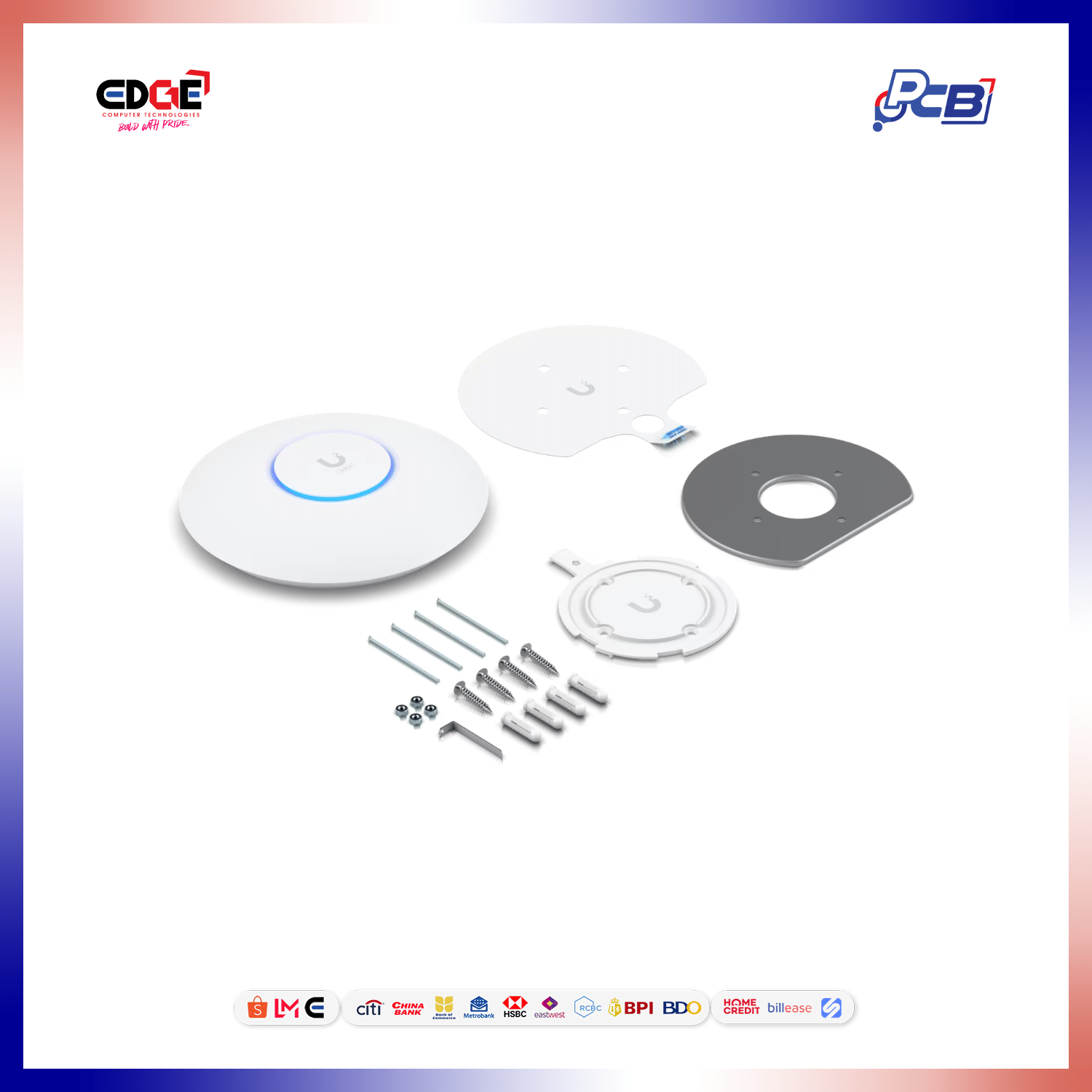

| Mounting | Ceiling, Wall (Mounts Included) |
| Power Method | PoE |
Performance
| Specification | Details |
|---|---|
| MIMO – 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO – 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate – 5 GHz | 2.4 Gbps (BW160) |
| Max. Data Rate – 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain – 5 GHz | 5.4 dBi |
| Antenna Gain – 2.4 GHz | 3 dBi |
| Max. TX Power – 5 GHz | 23 dBm |
| Max. TX Power – 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates – 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates – 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates – 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Hardware
| Specification | Details |
|---|---|
| Max. Power Consumption | 9W |
| Supported Voltage Range | 44–57V DC |

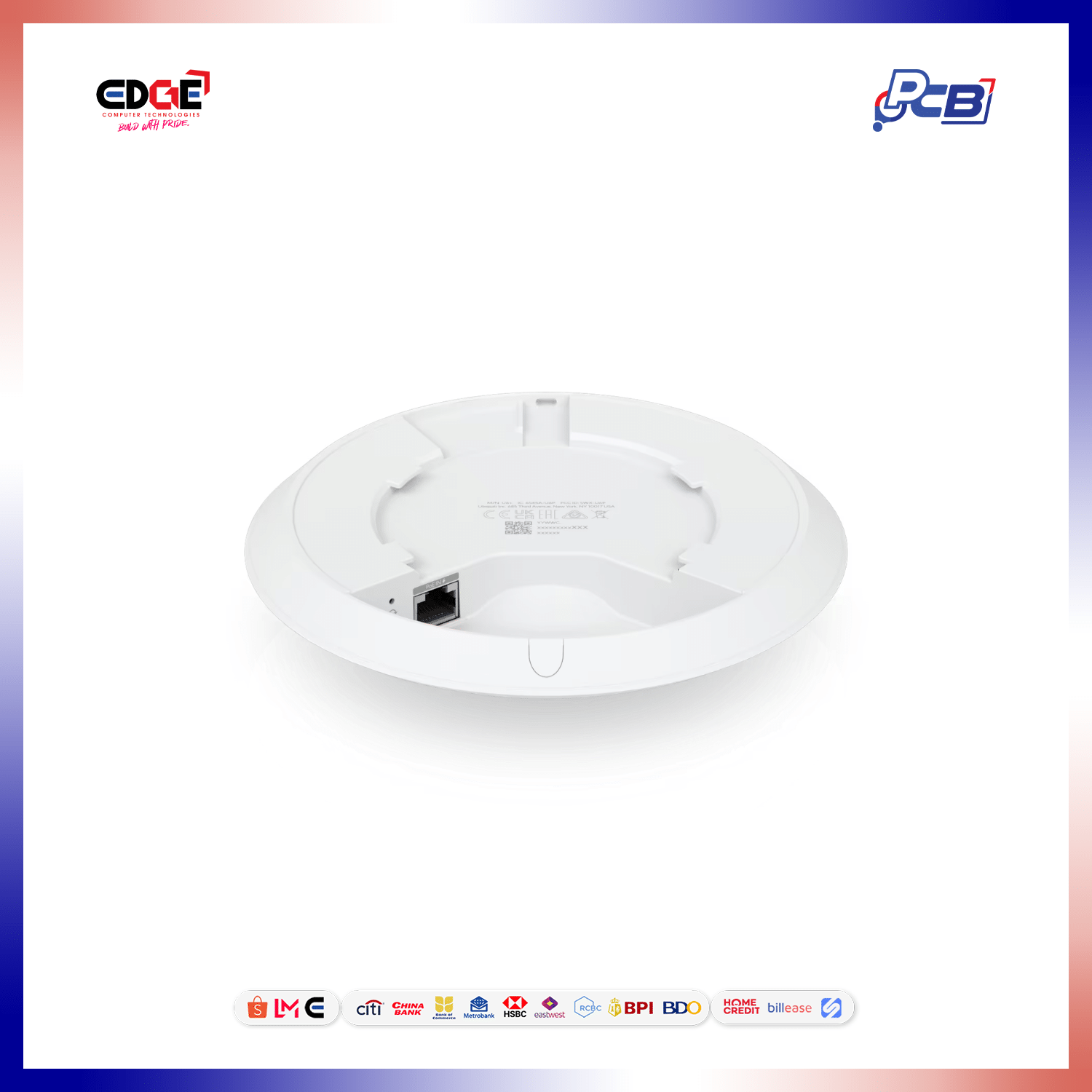

| Networking Interface | (1) GbE RJ45 port |
| Weight | Device: 338 g (11.9 oz) With mount: 413 g (14.6 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | ABS, SGCC steel |
| LEDs | System |
| LED Colors | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 10539-23-08356 |
Software
| Specification | Details |
|---|---|
| Application Requirements | UniFi Network |
| Version | 7.3.76 and later |
