Description

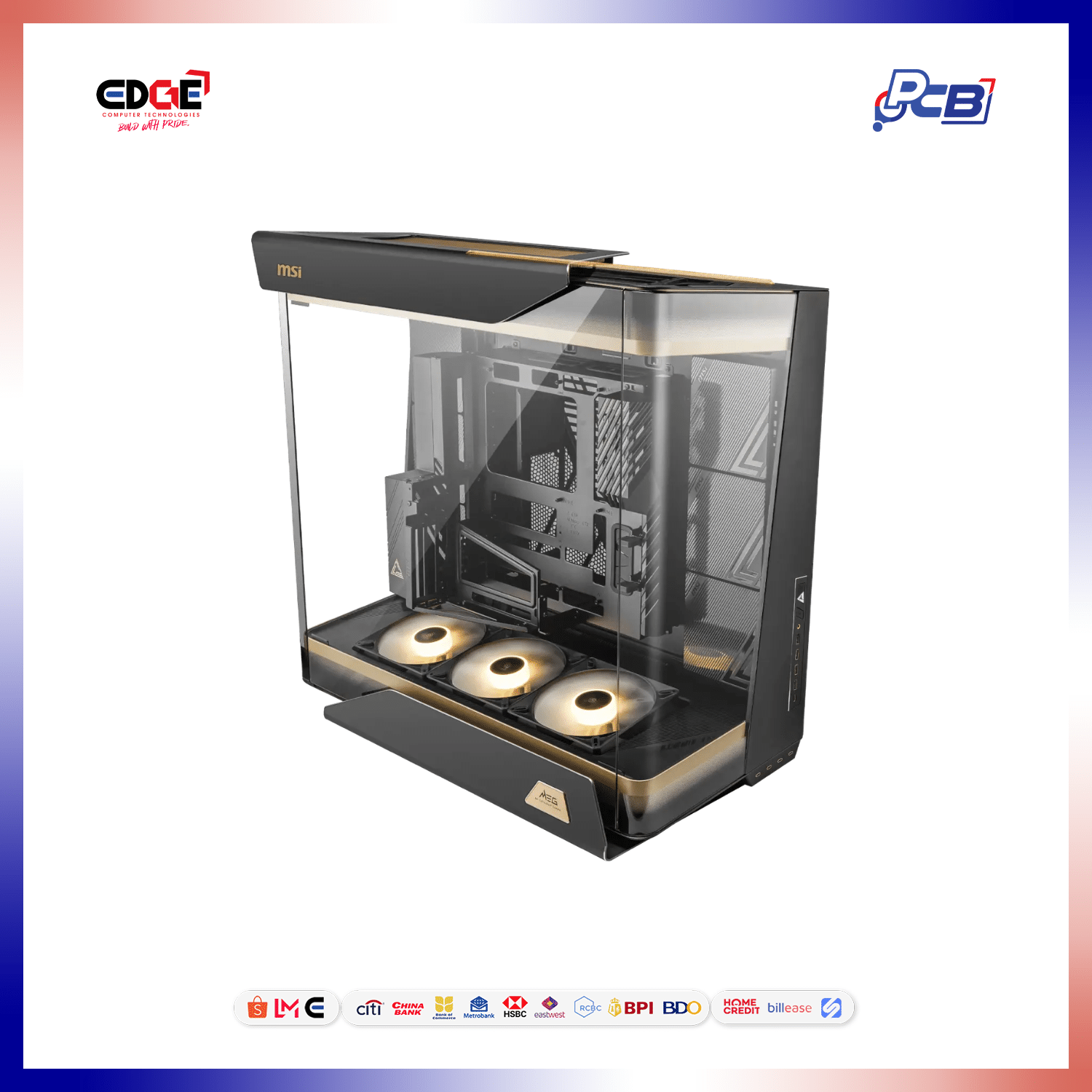

MEG MAESTRO 900R
| Category | Specifications |
|---|---|
| Product Name | MEG MAESTRO 900R |
| Case Form Factor | Full Tower |
| Motherboard Support | E-ATX / ATX / Micro-ATX / Mini-ITX |
| I/O Ports | 1 × LED Switch Button |
| 1 × Mic-in / Audio-out | |
| 1 × Power Button | |
| 4 × USB 5Gbps (Type-A) | |
| 4 × USB 10Gbps (Type-C) | |
| 1 × USB 20Gbps (Type-C PD 60W) | |
| Drive Support | Up to 9 × 2.5″ SSD |
| Up to 5 × 3.5″ HDD | |
| Expansion Slots | 8 + 3 |
| Maximum GPU Length | 440 mm |
| Maximum CPU Cooler Height | 170 mm |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm |
| Fan Support | |
| Top | 4 × 120 mm / 3 × 140 mm / 3 × 160 mm |
| Side | 6 × 120 mm |
| Bottom | 4 × 120 mm / 3 × 140 mm / 3 × 160 mm |
| Pre-installed Fans | Bottom: 3 × 160 mm ARGB Fans |
| Radiator Support | |
| Top | 120 / 140 / 240 / 280 / 360 / 420 mm |
| Side | 120 / 240 / 360 mm |
| Bottom | 120 / 140 / 240 / 280 / 360 / 420 mm |
| Dimensions (D × W × H) | 695 × 379 × 671 mm |
| Dimensions (inches) | 27.36 × 14.92 × 26.42 inches |
| Net Weight | 33 kg / 72.75 lbs |
| Gross Weight | 38 kg / 83.78 lbs |
Front I/O Connections
| Port / Button | Quantity / Specification |
|---|---|
| USB 20Gbps Type-C | 1 × (PD 60W) |
| USB 5Gbps Type-A | 4 × |
| USB 10Gbps Type-C | 4 × |
| Audio Out / Mic In | 1 × |
| LED Switch Button | 1 × |
| Power Button | 1 × |

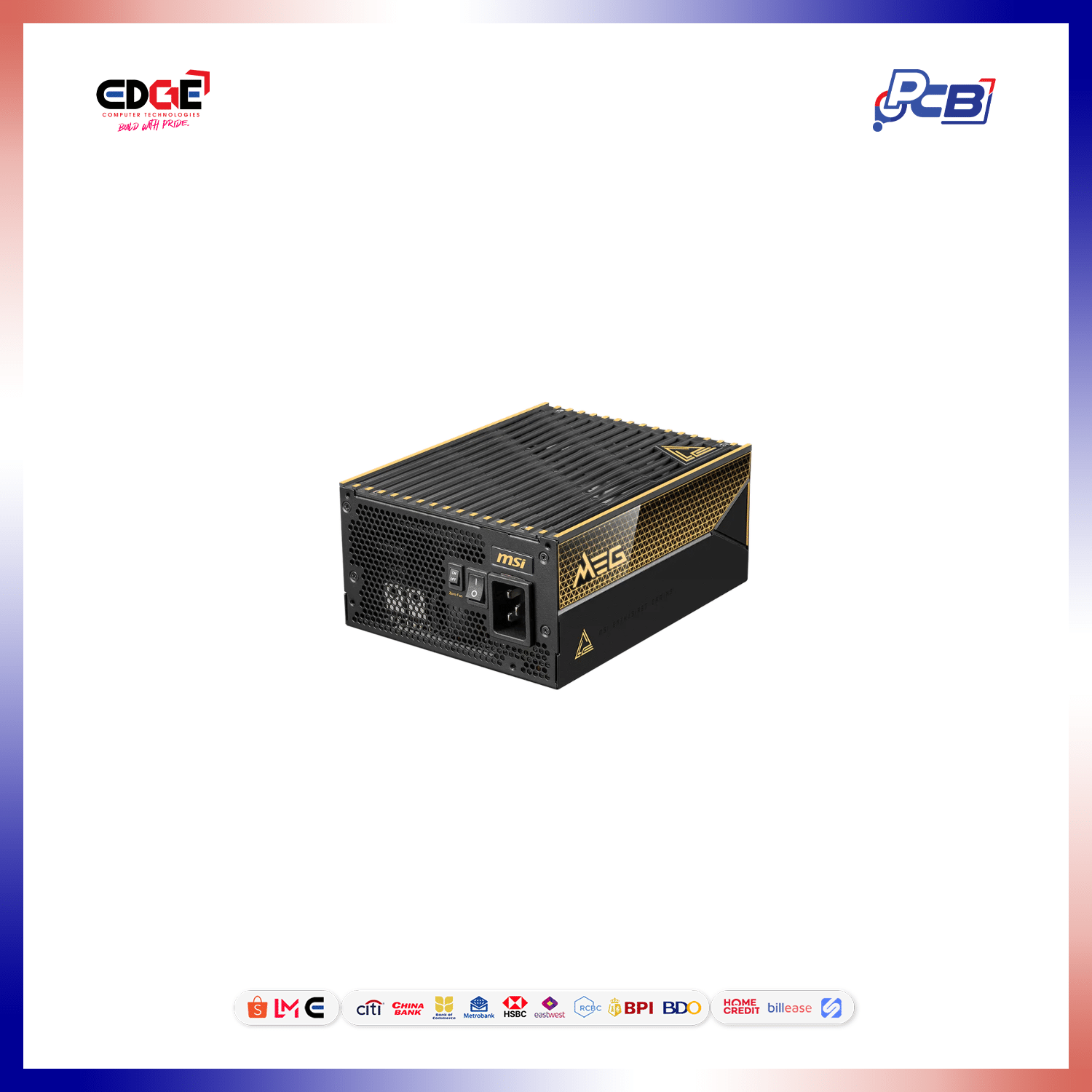

MEG Ai1600T PCIE5
| Category | Specifications |
|---|---|
| Power Wattage | 1600W |
| Efficiency Rating | 80 PLUS Titanium (Up to 94%) |
| Modular | Yes (Fully Modular) |
| PFC Type | Interleaved PFC |
| Input Voltage Range | 100–240V |
| Input Frequency Range | 50–60Hz |
| Power Excursion | 3840W (Up to 240% of rated power for 100μs) |
| Cooling | |
| Fan Size | 135 mm |
| Fan Bearing | Double Ball Bearing |
| Dimensions (D × W × H) | 190 × 150 × 86 mm |
| Connectors | |
| ATX (24-pin) | 1 |
| EPS (4+4-pin) | 2 |
| PCI-E 5.1 (16-pin) | 2 (600W) |
| PCI-E (6+2-pin) | 9 |
| SATA (15-pin) | 8 |
| Peripheral (4-pin) | 8 |
| Protection Features | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |

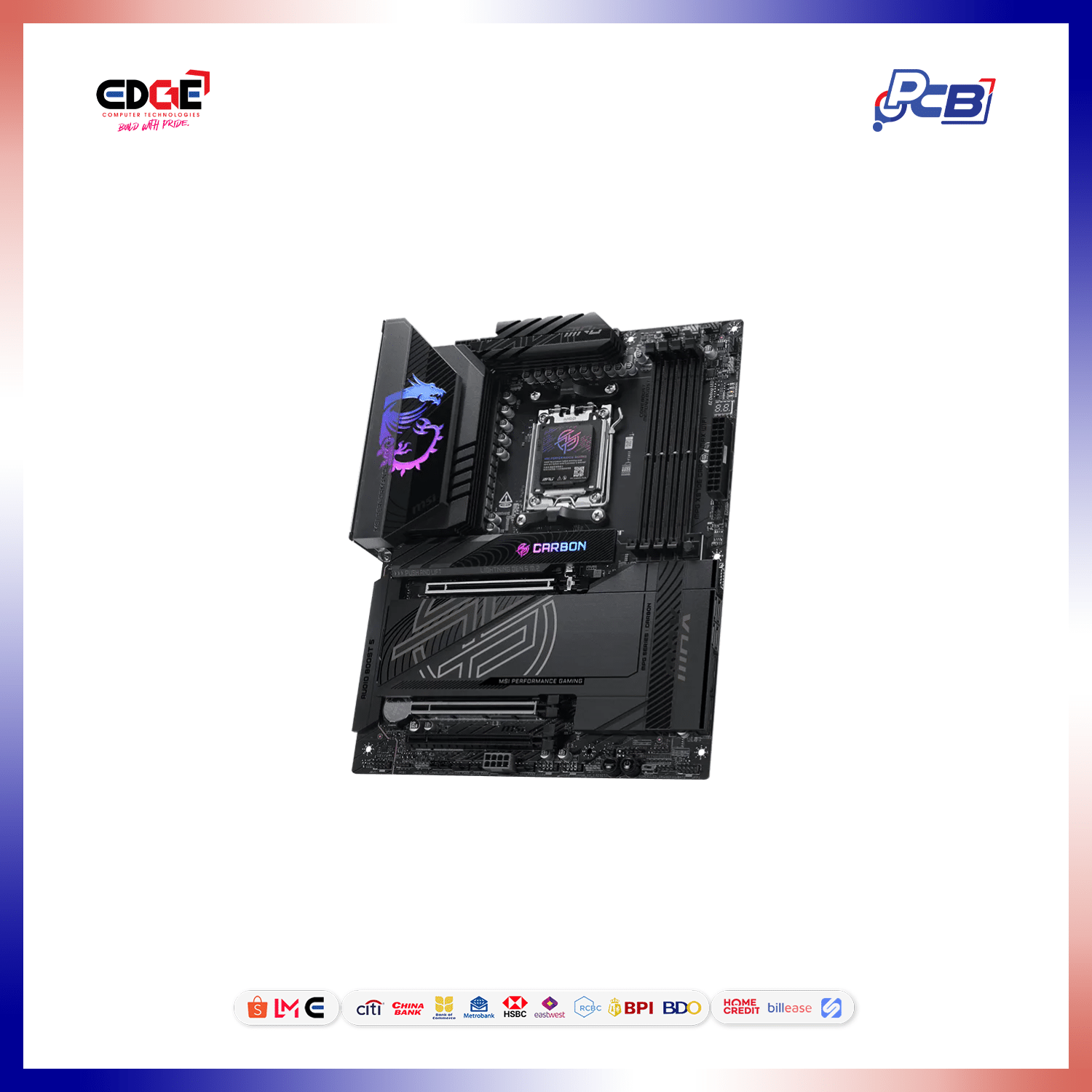

MPG X870E CARBON MAX WIFI
| Chipset | AMD X870E |
|---|---|
| CPU | Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzenâ„¢ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2*/** slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processorsM.2_3 slot • Supports up to PCIe 4.0 x4M.2_4 slot • Supports up to PCIe 4.0 x4 *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series. |
| RAID | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen™ 9000 series processors. ** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| LAN | 1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Digit Debug LED |
| BACK PANEL PORTS |
|

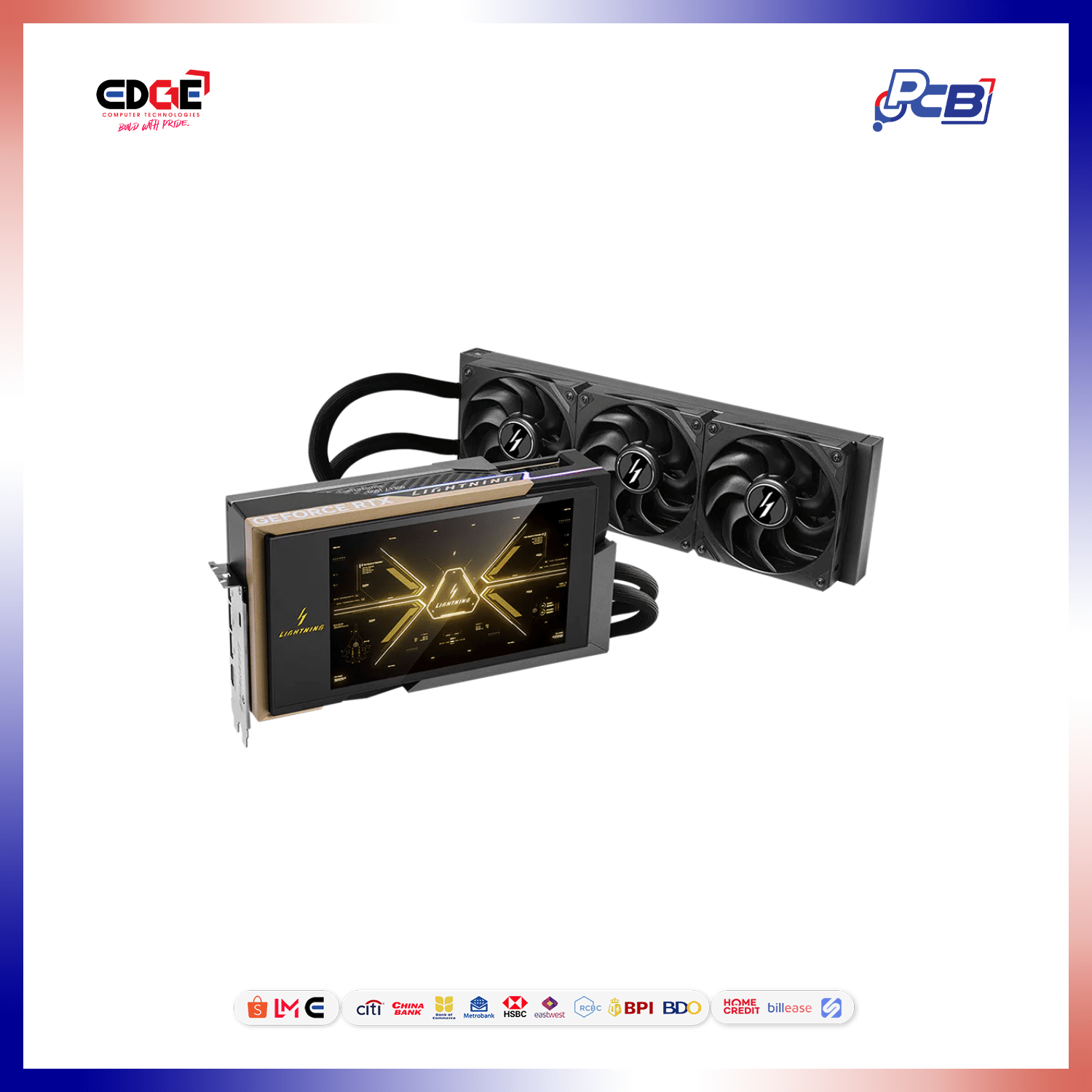

GeForce RTXâ„¢ 5090 32G LIGHTNING Z
| Category | Specifications |
|---|---|
| Marketing Name | GeForce RTXâ„¢ 5090 32G LIGHTNING Z |
| Model Name | G5090-32LZ |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5 x16 |
| Core Clocks | Extreme Performance: 2775 MHz (MSI Center) / Boost: 2730 MHz |
| CUDA® Cores | 21,760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512-bit |
| Output | USB Type-C × 1 (Dedicated for Lightning display panel only) / DisplayPort × 3 (2.1b) / HDMI™ × 1 |
| HDCP Support | Yes |
| Power Consumption | OC: 800W / Extreme: 1000W |
| Power Connectors | 16-pin × 2 (1-to-3 dongle not supported) |
| Recommended PSU | 1500W+ |
| Card Dimensions | Card: 260 × 151 × 61 mm / Radiator: 394 × 120 × 56 mm |
| Weight (Card / Package) | TBD g / TBD g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 × 4320 |

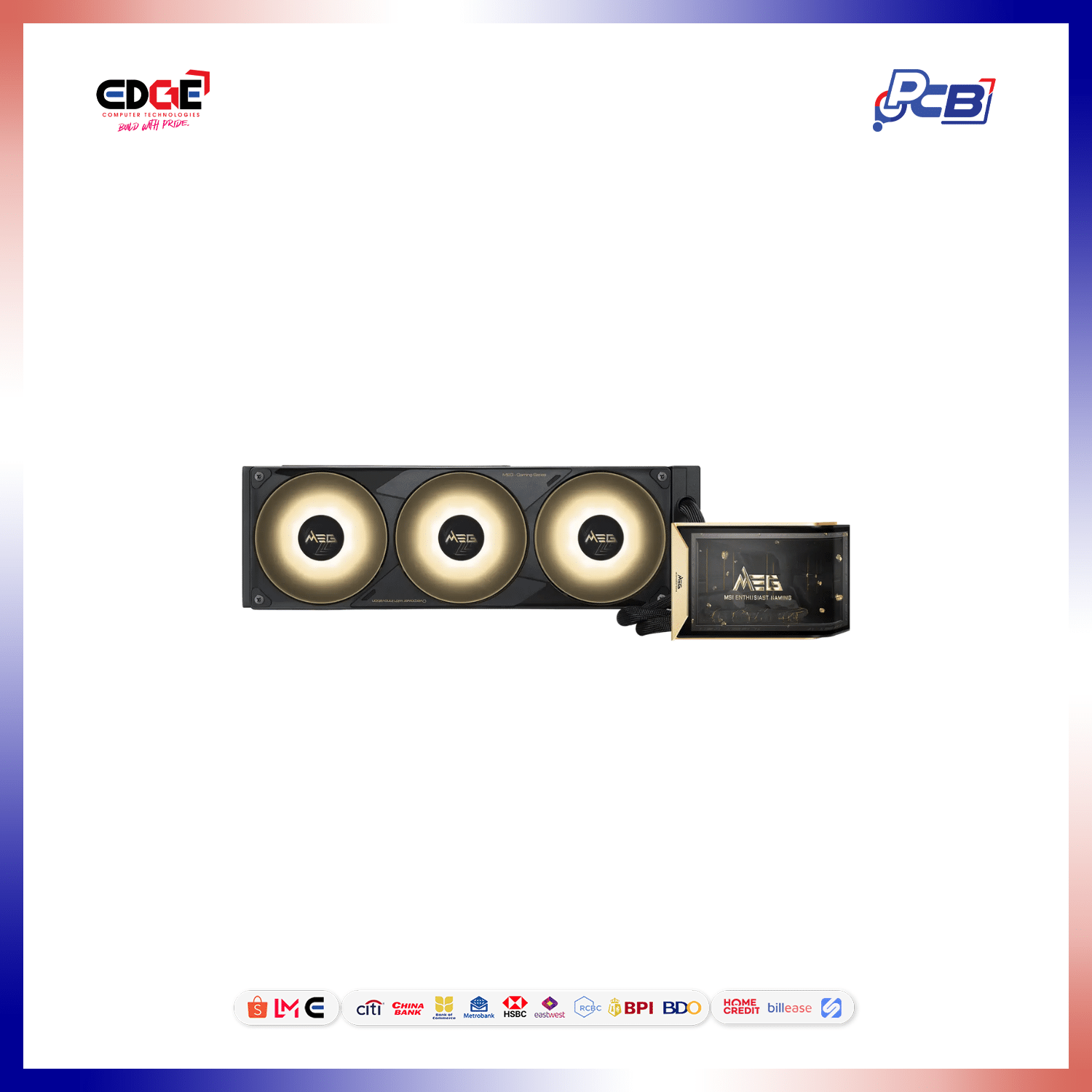

MEG CORELIQUID E15 360
| Category | Specifications |
|---|---|
| Pump | |
| Speed | 3000 ± 300 RPM |
| Load Current | 0.52 ± 0.104 A |
| Power Consumption | 6.24 ± 1.248 W |
| Life Expectancy | 50,000 hours at 40°C |
| Water Block | |
| Dimensions | 71.63 × 68.5 × 64.97 mm |
| Panel Size | 6.67 inches |
| Panel Type | OLED |
| Panel Resolution | 2240 × 1080 |
| Radiator | |
| Size | 360 mm |
| Dimensions | 397 × 124.5 × 30 mm |
| Material | Aluminum |
| Tube | |
| Length | 390 mm |
| Material | EPDM + IIR |
| Fan | |
| Size | 362 × 125 × 28.4 mm |
| Quantity | 3 |
| Speed | 800–2300 ± 230 RPM |
| Air Flow | 217.91 CFM |
| Air Pressure | 3.84 mm-Hâ‚‚O |
| Noise Level | 39.58 dBA |
| Bearing | FDB |
| Life Expectancy | 40,000 hours at 40°C |
| Rated Current | 0.68 ± 0.15 A (Set) |
| Power Consumption | 8.16 W (Set) |
| LED | ARGB GEN2 |
| Compatibility | |
| Intel | LGA 1700 / LGA 1851 |
| AMD | AM5 / AM4 |
