Description
| Specification | Details |
|---|---|
| TDP | 200W |
| CPU Socket | Intel LGA: 115X / 1200 / 1700 / 1851; AMD: AM4 / AM5 |
| Product Dimension | 123 × 90 × 147 mm (L × W × H) |
| Net Weight | 625 g |

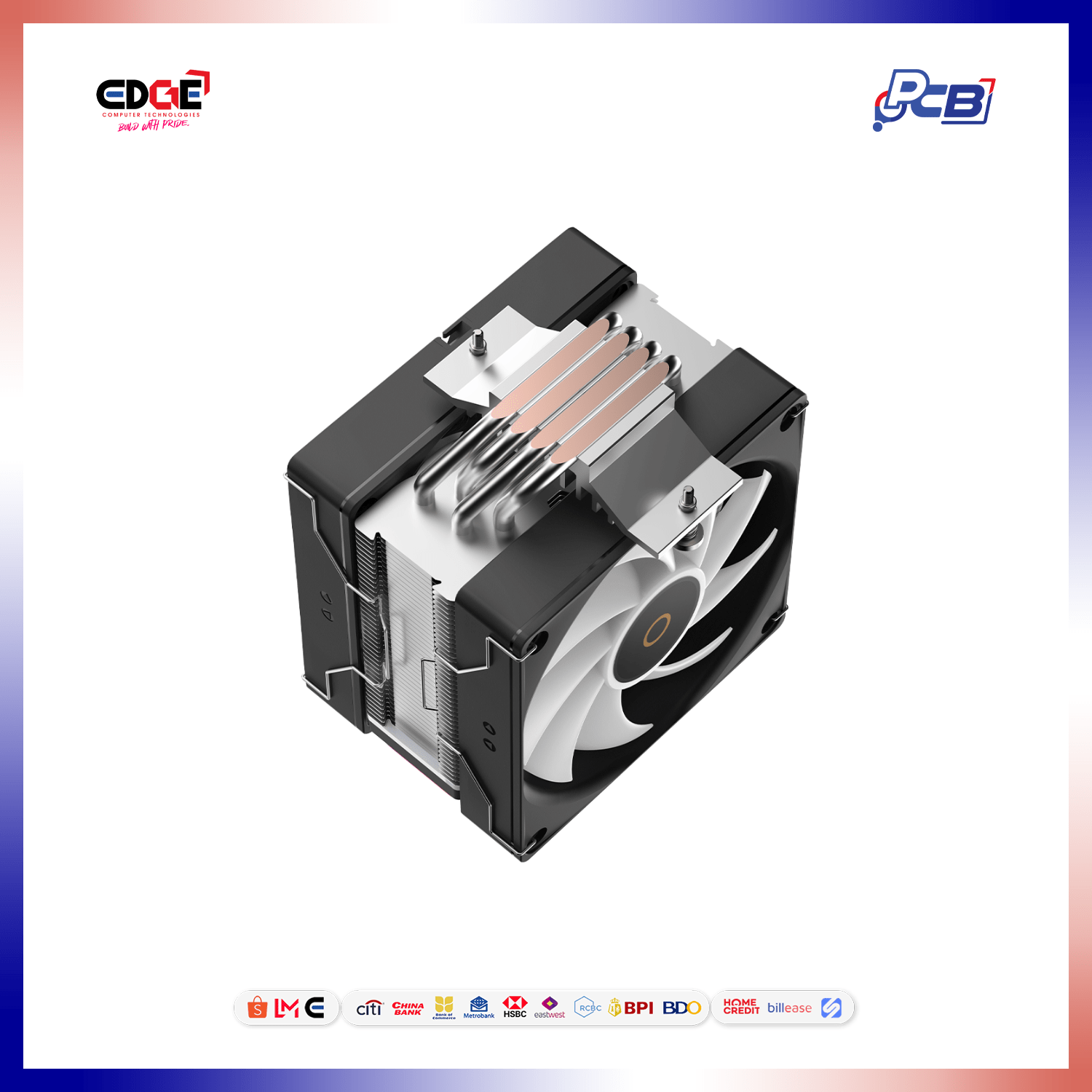

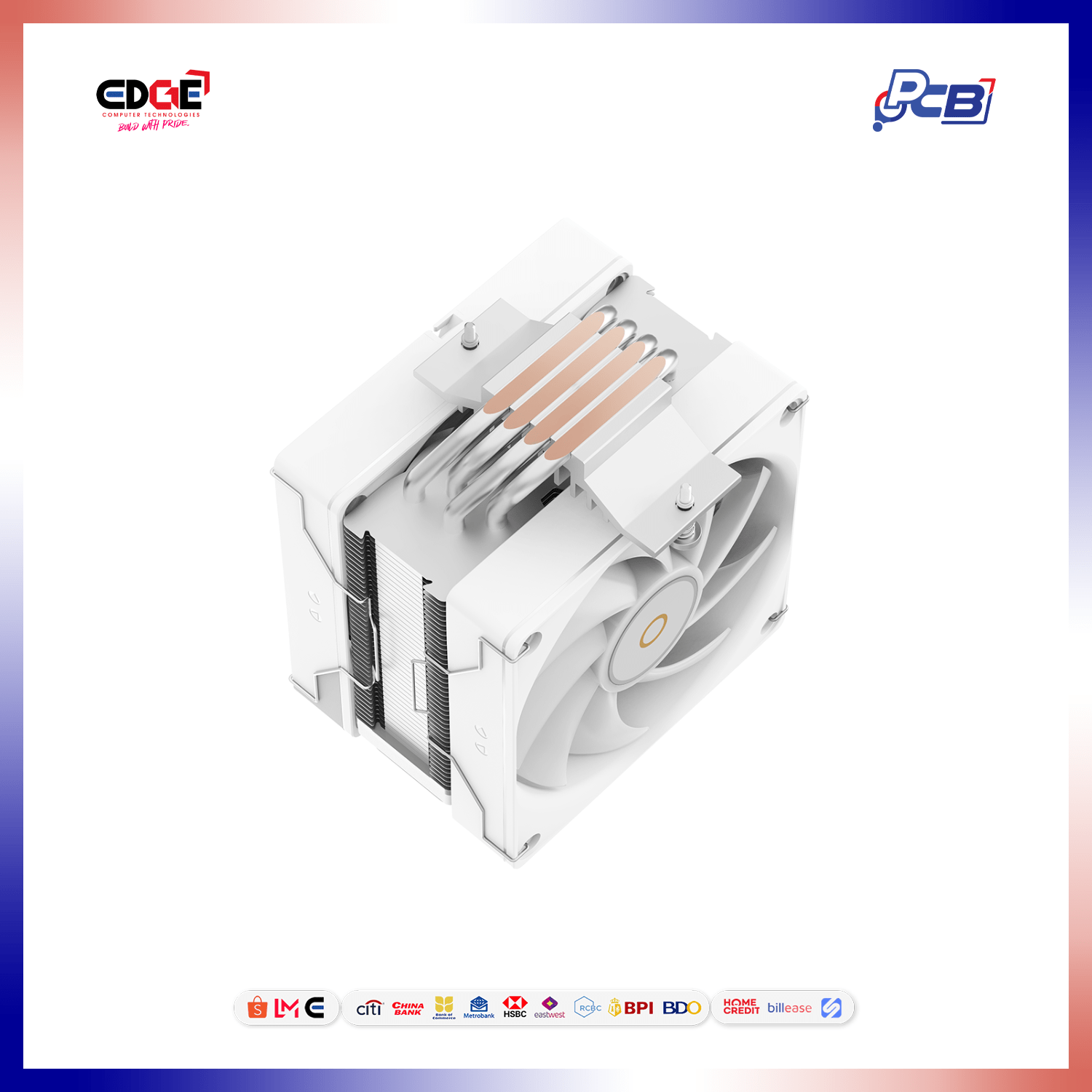

| Heatpipe | Φ6 mm × 4 |
| Fan Quantity | 2 |

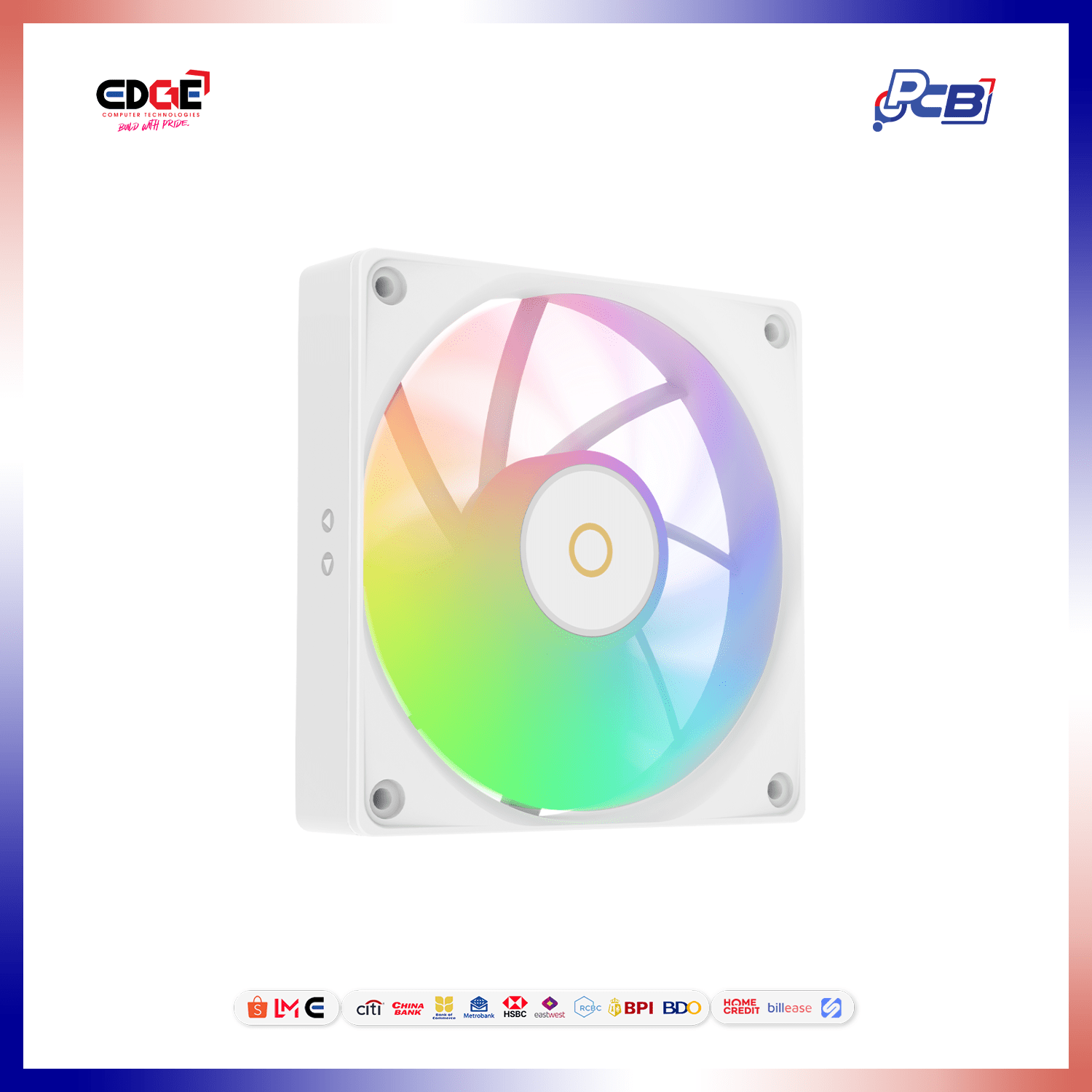

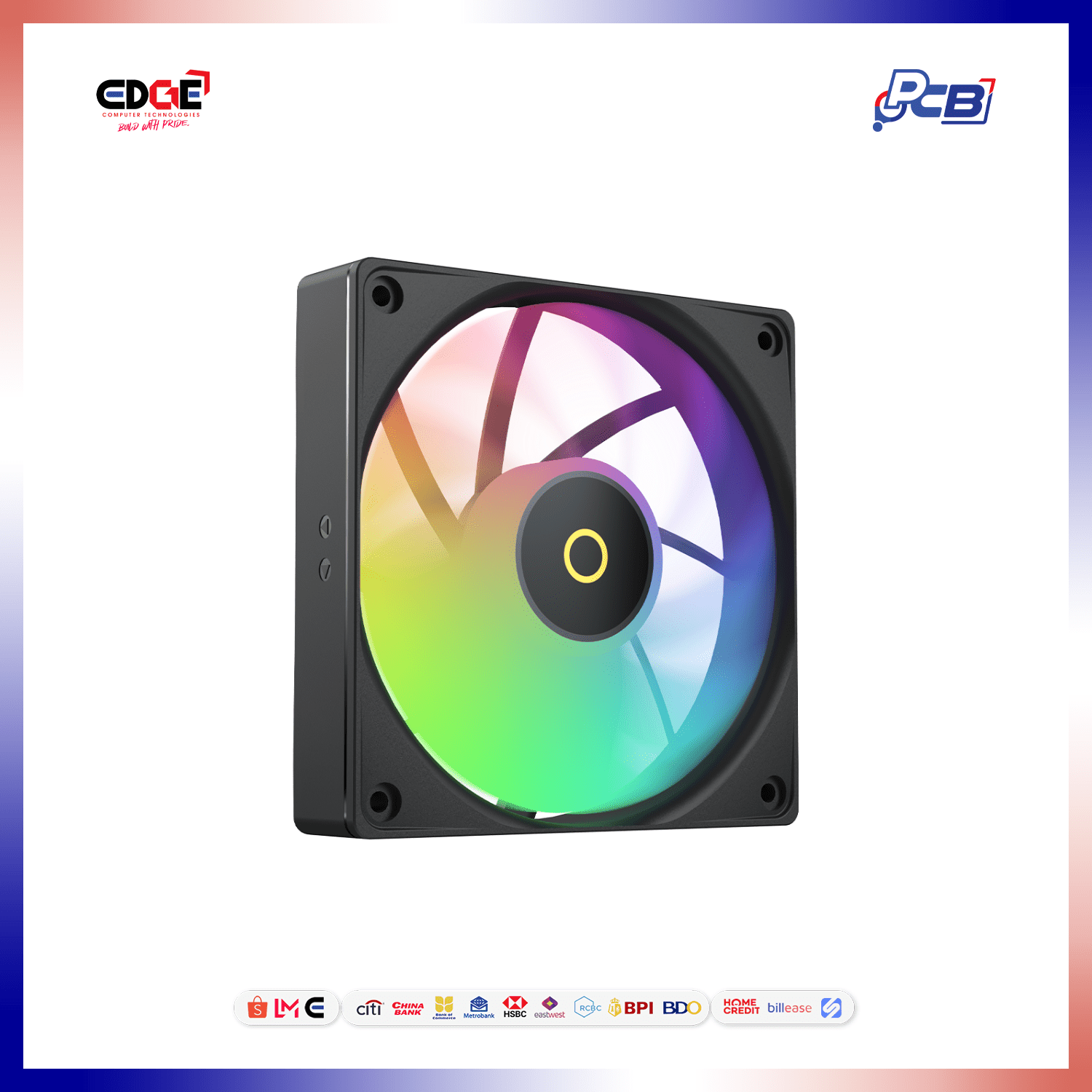

Fan
| Specification | Details |
|---|---|
| Dimension | 120 × 120 × 25 mm (L × W × H) |
| Bearing Type | Hydraulic Bearing |
| Speed | 800–1800 ±10% RPM |
| Air Flow (MAX) | 60 CFM |
| Air Pressure (MAX) | 1.66 mmHâ‚‚O |
| Noise | ≤31 dB(A) |
| Rated Voltage | 12 VDC |
| Rated Current | 0.27 A |
| Power Consumption | 3.24 W |
| Connector | 4-Pin PWM |
Fan LED
| Specification | Details |
|---|---|
| Type | ARGB |
| Connector | 3-Pin |
| Rated Voltage | 5 VDC |
| Rated Current | 0.27 A |
| Power Consumption | 1.35 W |

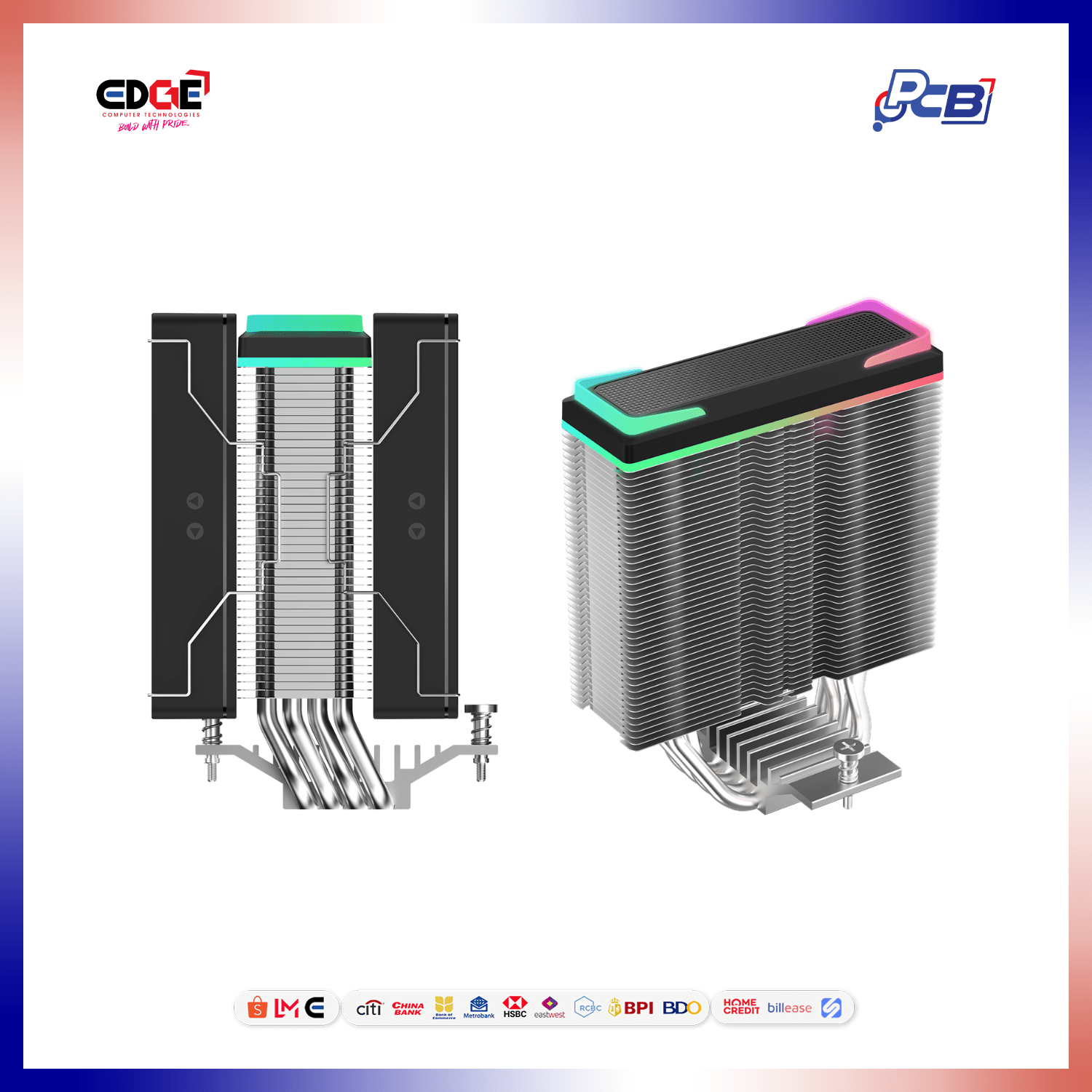

Exterior LED
| Specification | Details |
|---|---|
| Type | ARGB |
| Connector | 3-Pin |
| Rated Voltage | 5 VDC |
| Rated Current | 0.5 A |
| Power Consumption | 2.5 W |
