Description

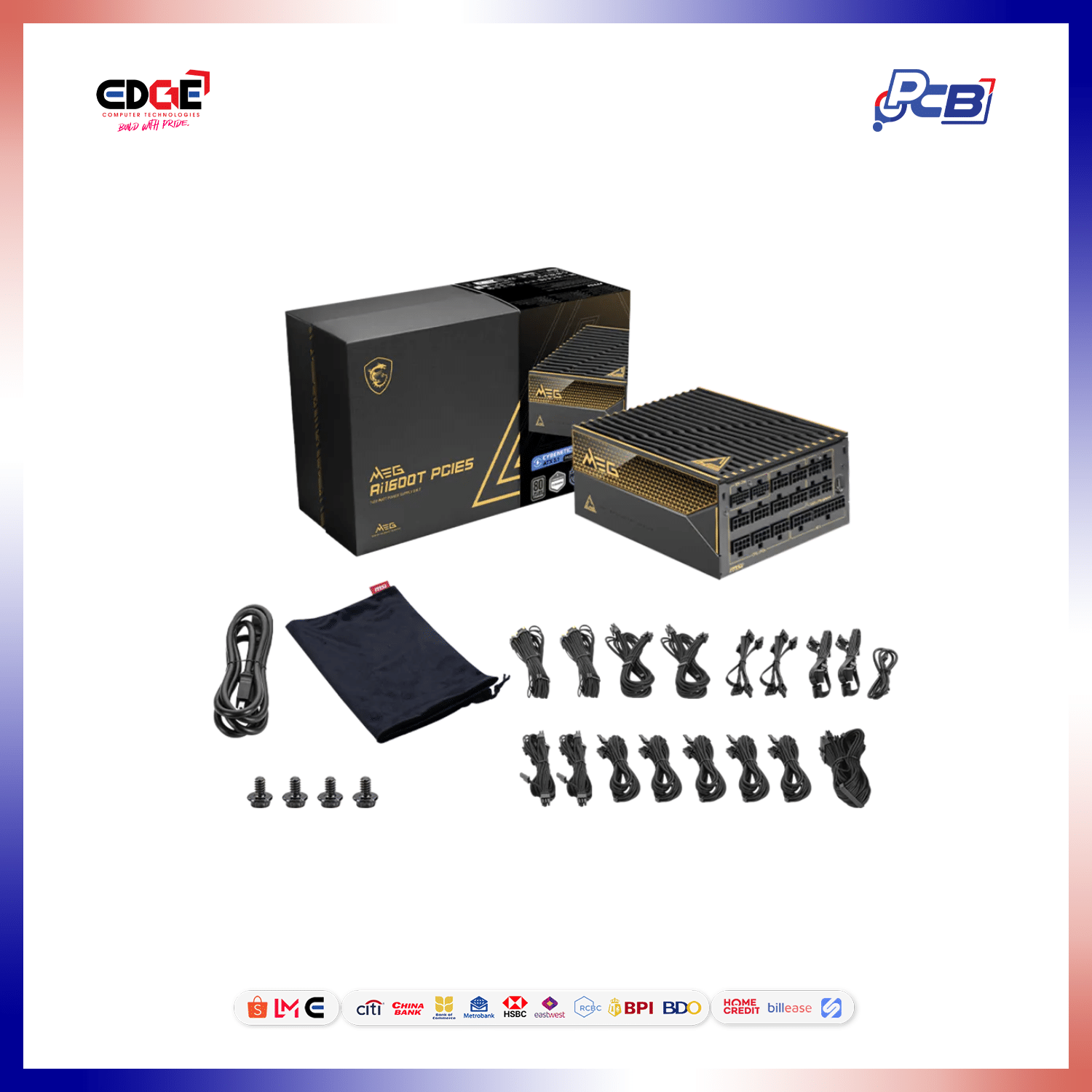

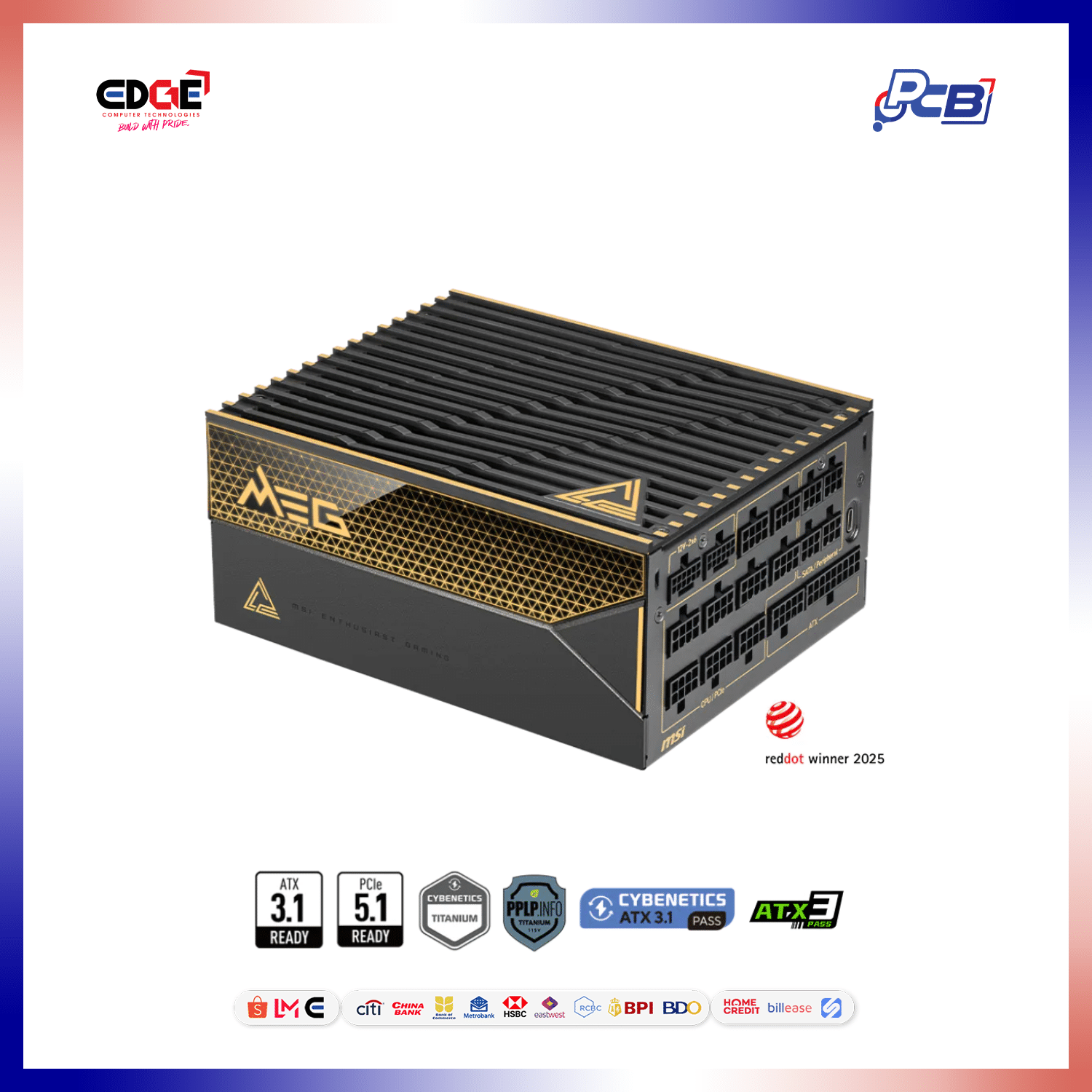

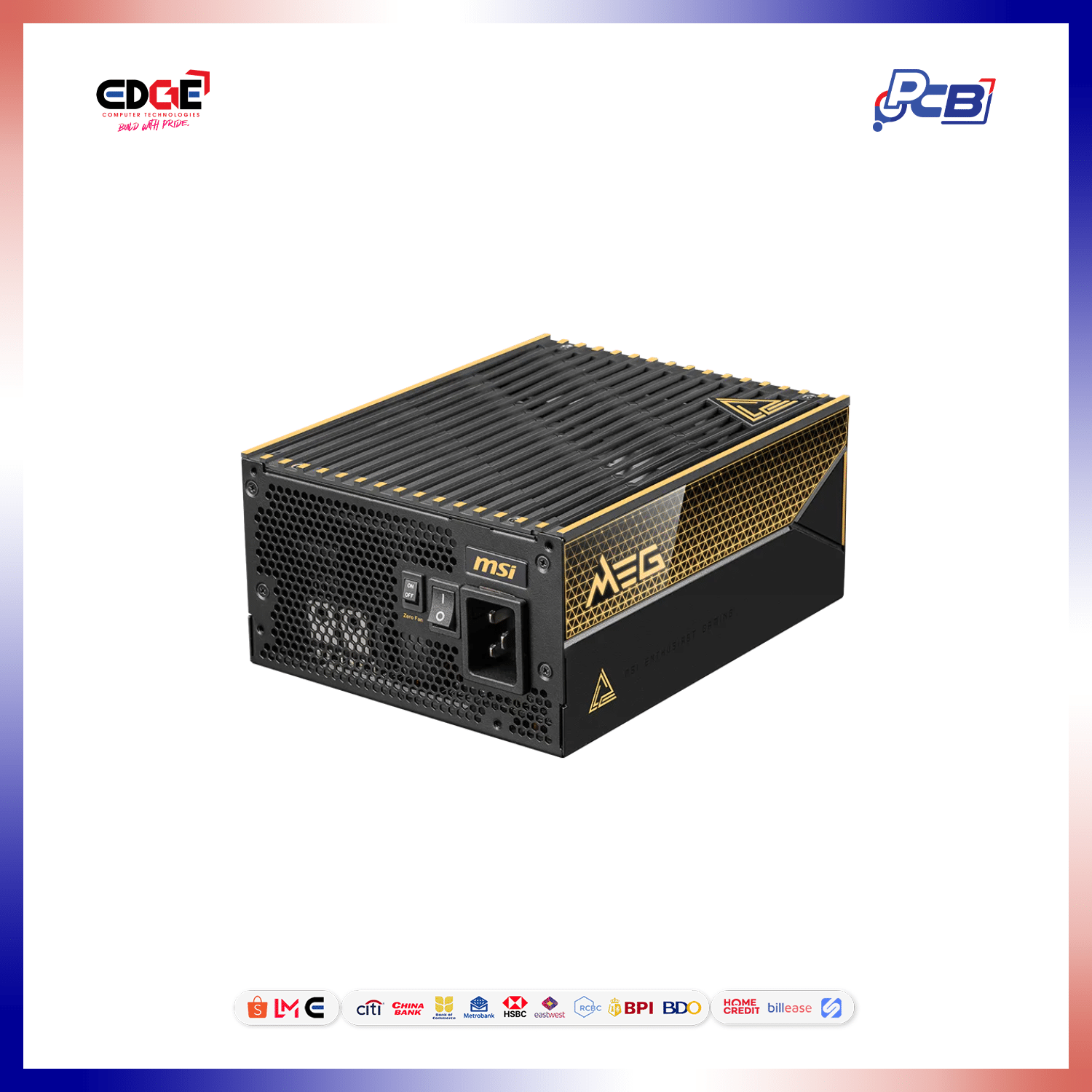

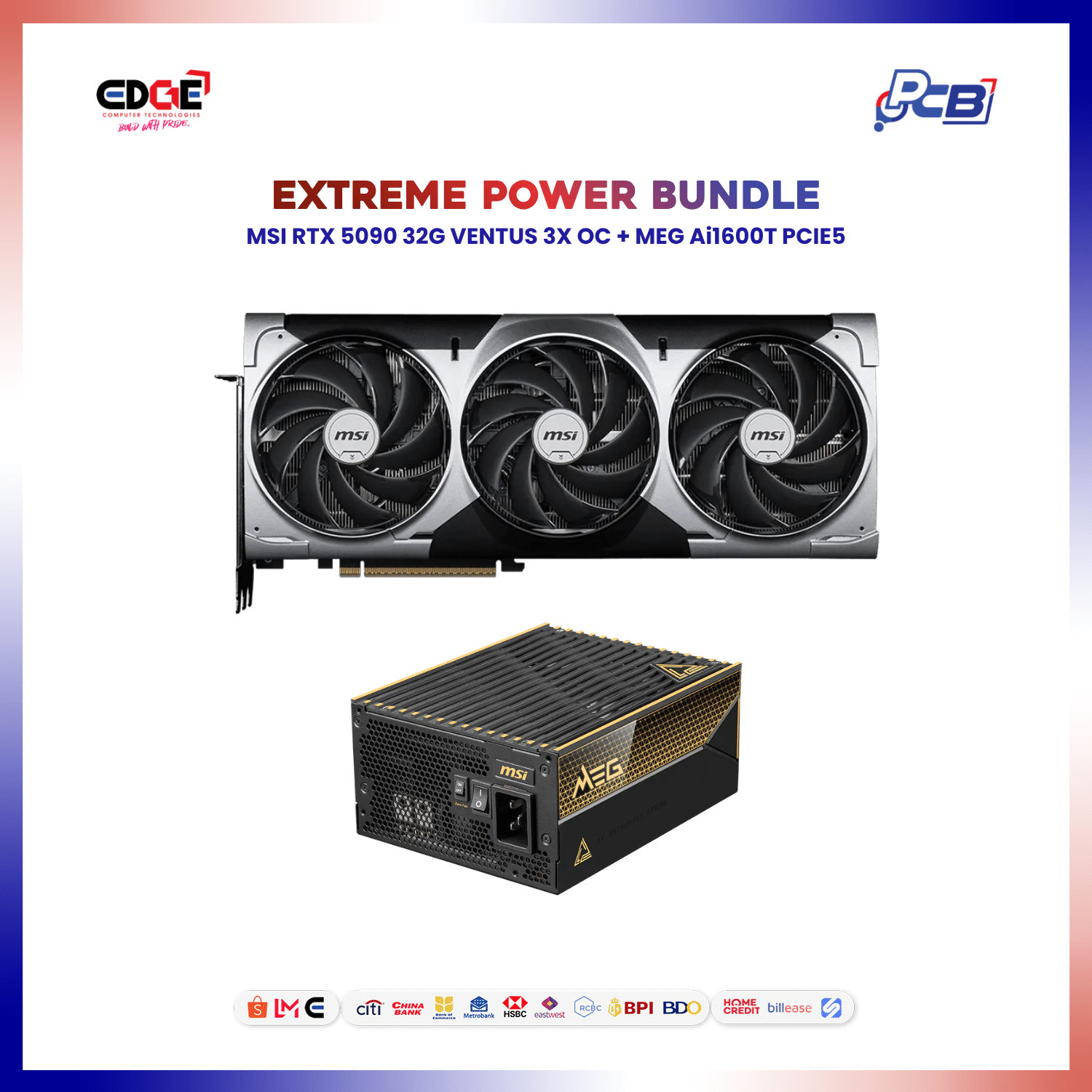

MEG Ai1600T PCIE5 Specifications:
| Specification | Details |
|---|---|
| Efficiency Rating | 80 PLUS Titanium (up to 94%) |
| Modular | Yes, Fully Modular |

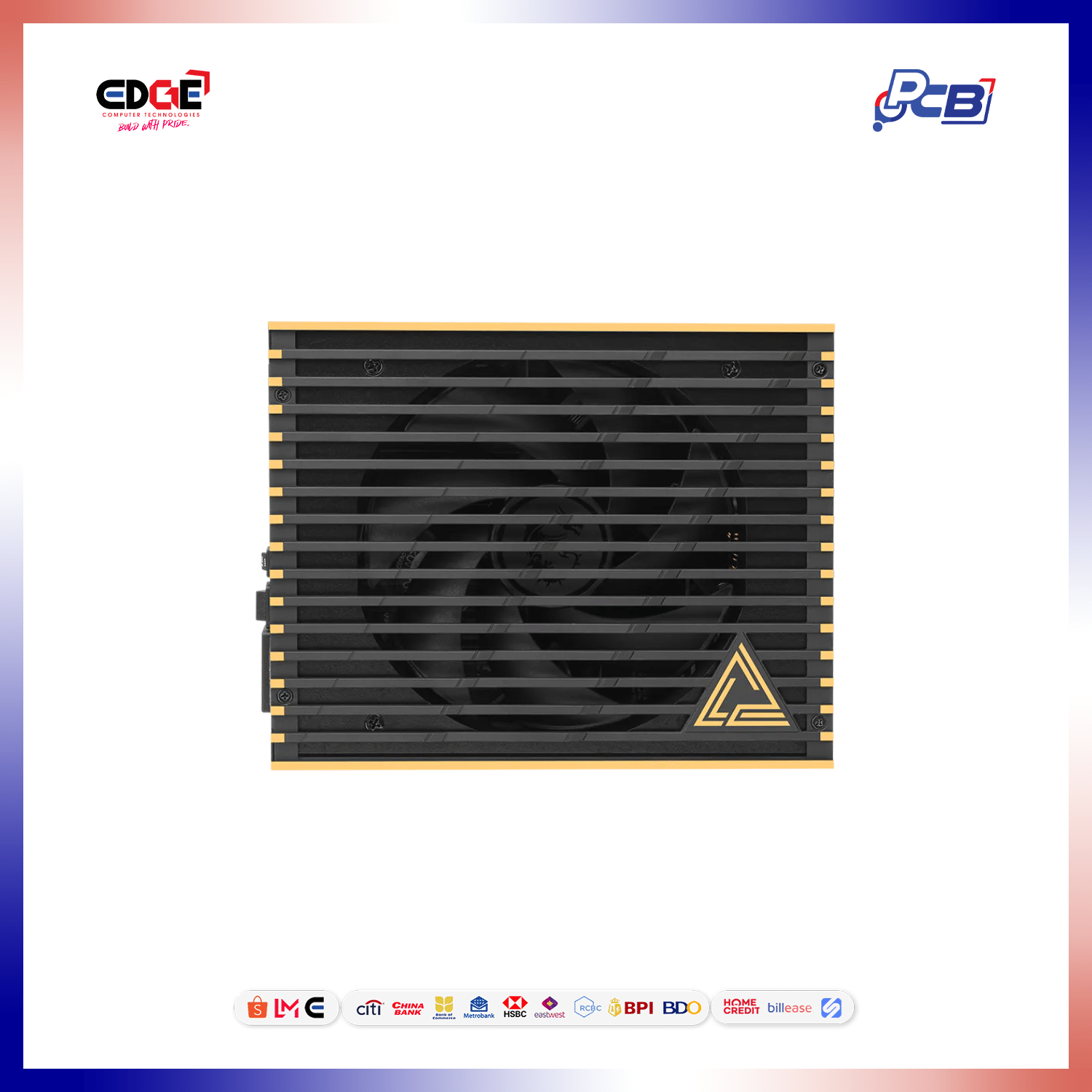

| Fan Size | 135 mm |
| Fan Bearing | Double Ball Bearing |
| Dimensions (D × W × H) | 190 × 150 × 86 mm |
| PFC Type | Interleaved PFC |
| Input Voltage Range | 100–240V |
| Power Output | 1600W |
| Input Frequency Range | 50–60 Hz |
| Power Excursion | 3840W (up to 240% of rated power for 100μs) |

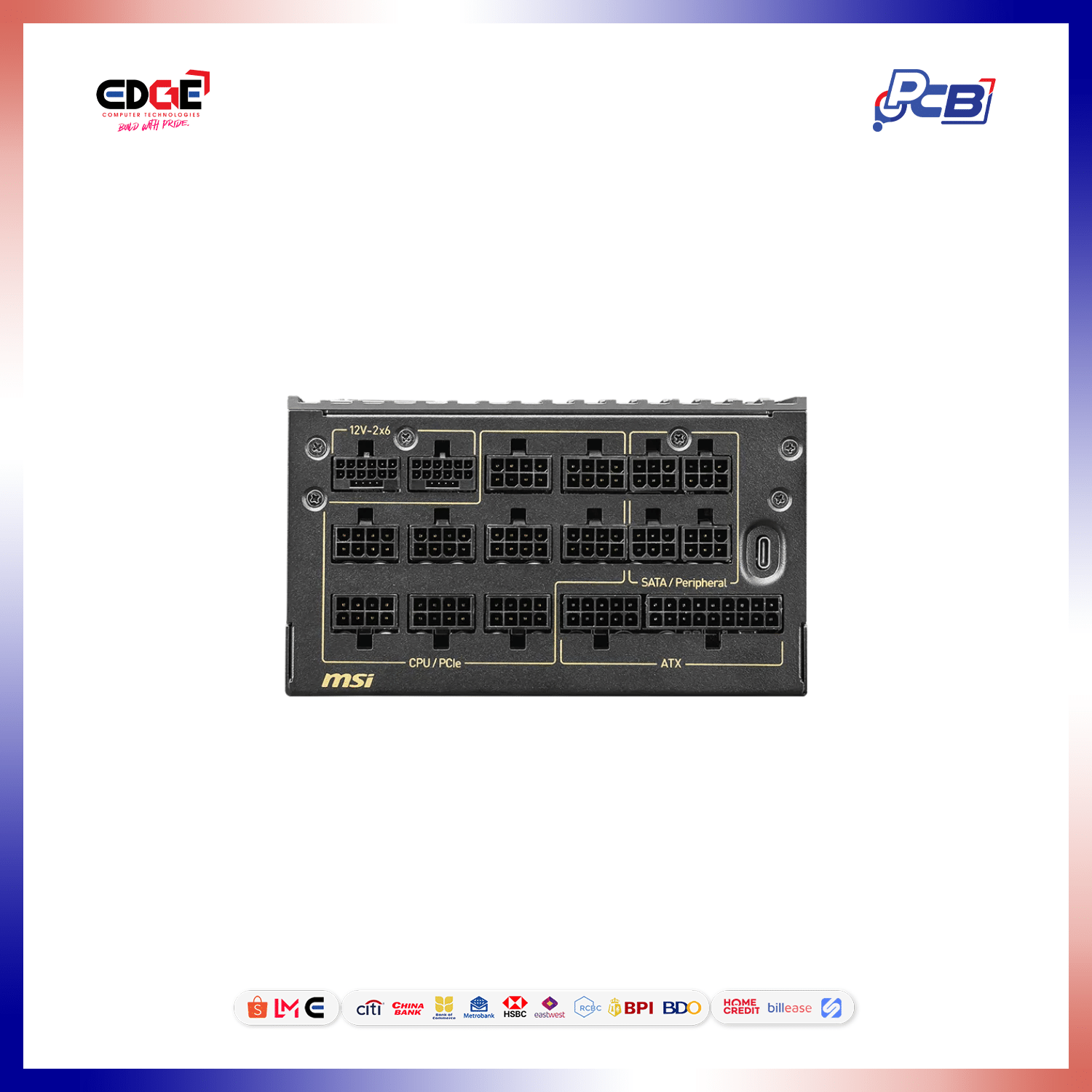

| ATX (24-pin) | 1 |
| EPS (4+4-pin) | 2 |
| PCI-E 5.1 (16-pin) | 2 × 600W |
| PCI-E (6+2-pin) | 9 |
| SATA (15-pin) | 8 |
| Peripheral (4-pin) | 8 |
| Protection | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |

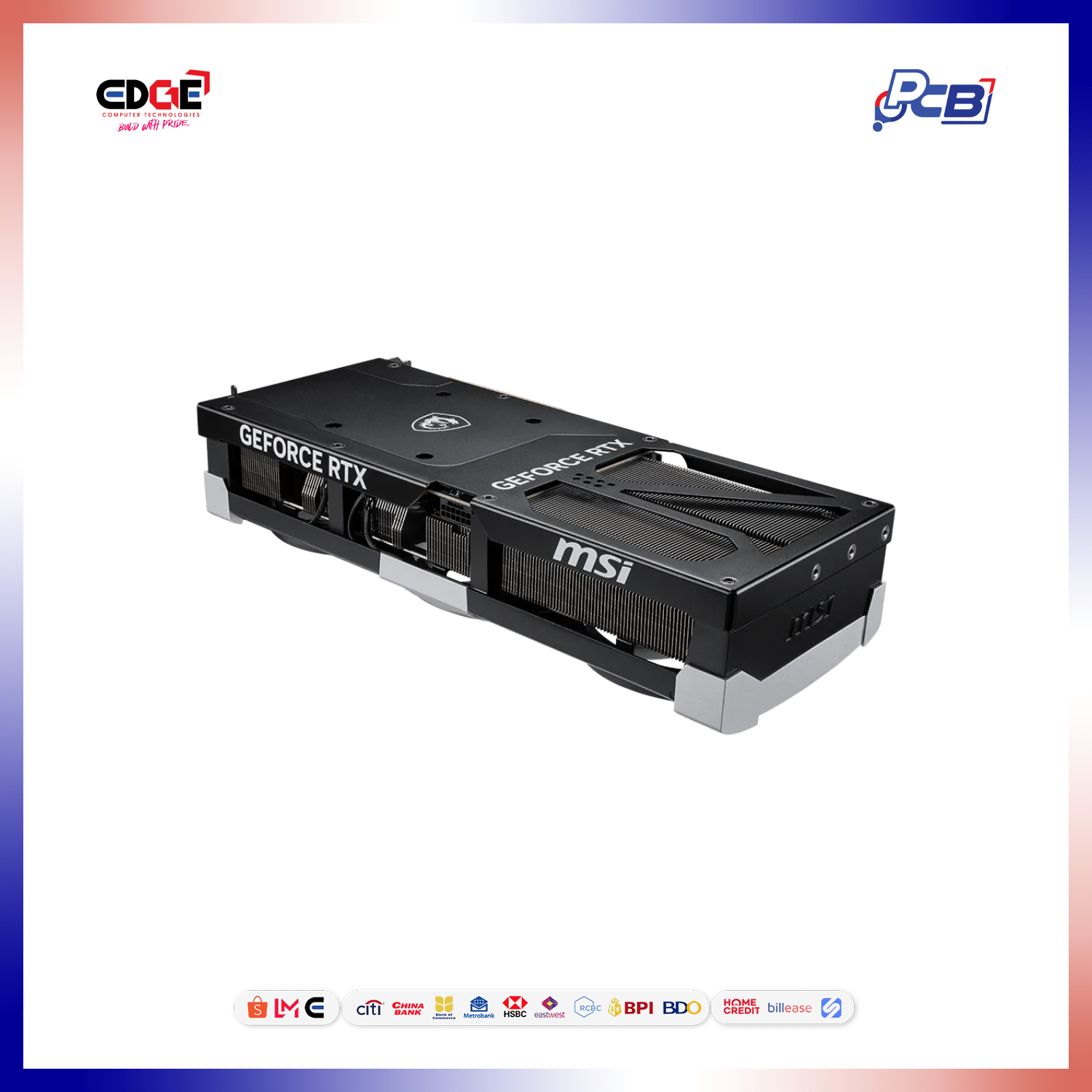

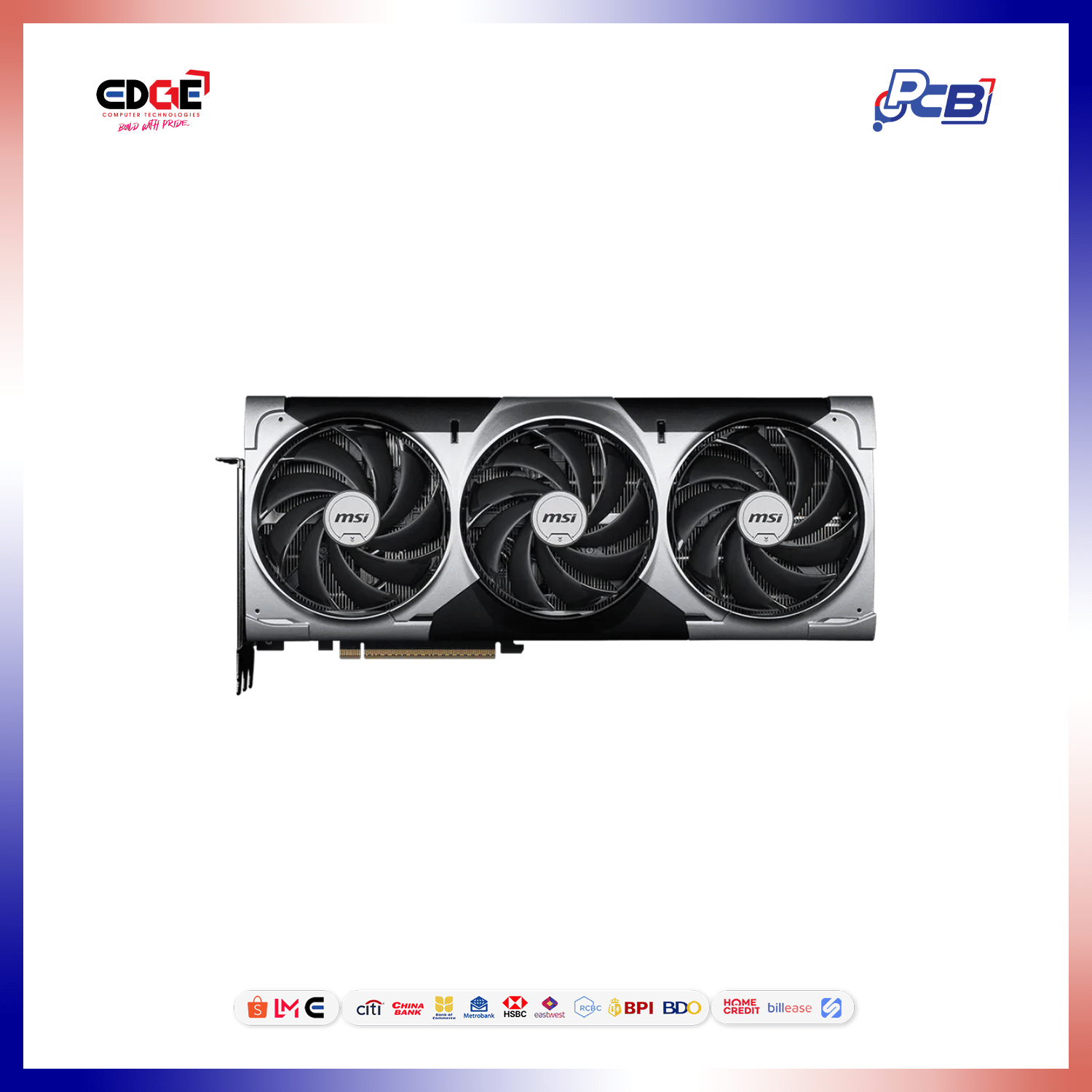

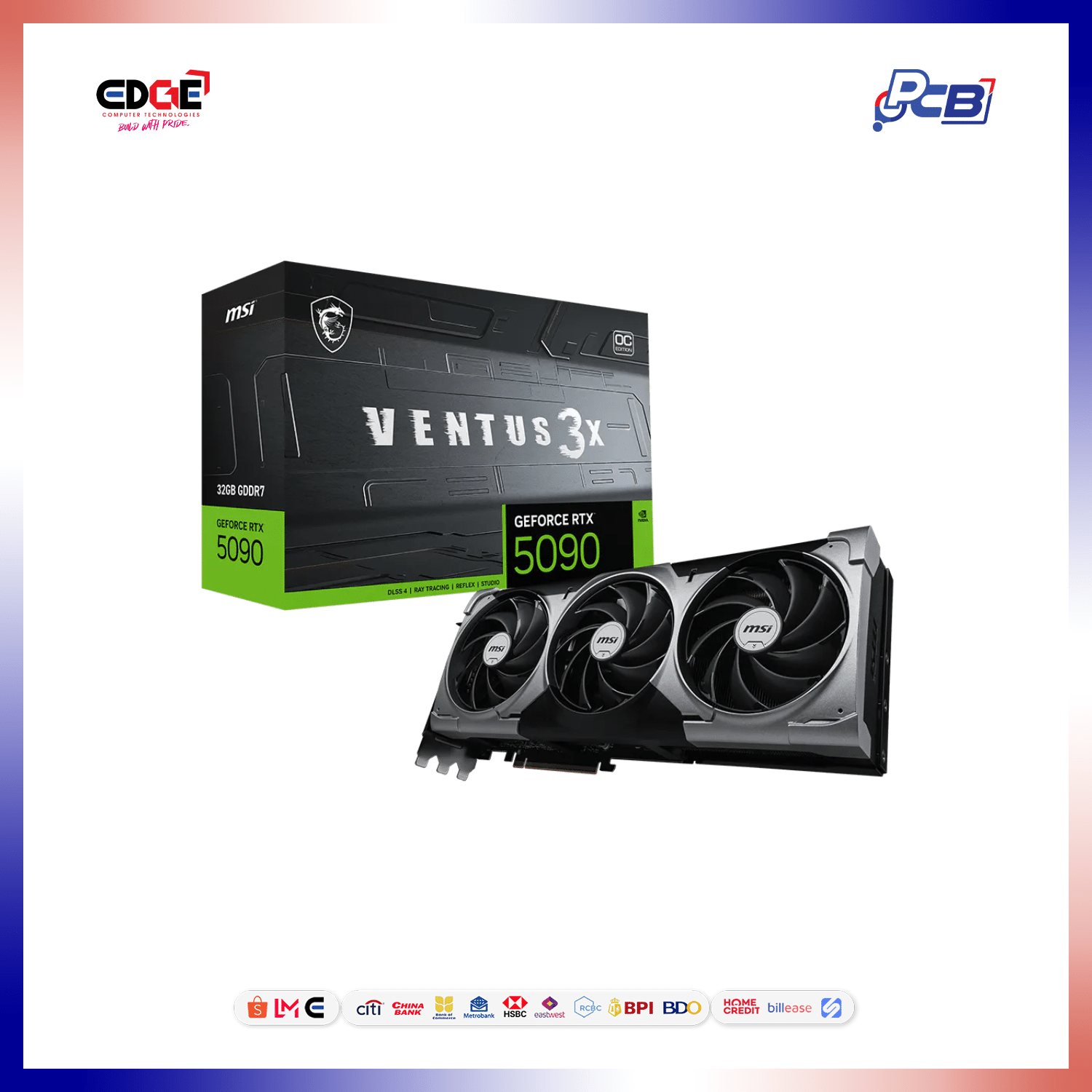

MSI RTX 5090 32G VENTUS 3X OC Specifications:Â
| Specification | Details |
|---|---|
| Marketing Name | GeForce RTXâ„¢ 5090 32G VENTUS 3X OC |
| Model Name | G5090-32V3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2452 MHz (MSI Center) / Boost: 2437 MHz |
| CUDA® Cores | 21,760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512-bit |

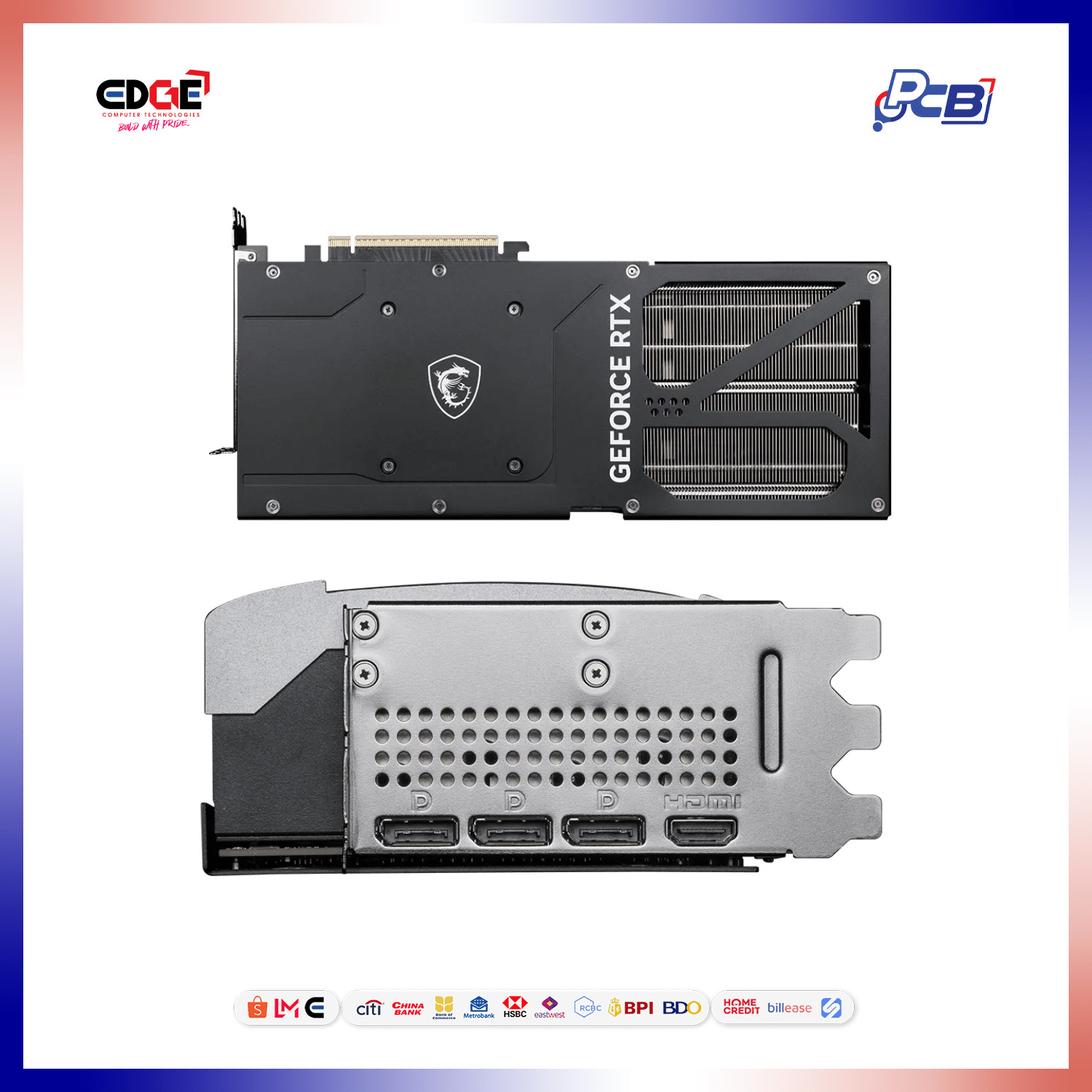

| Output | DisplayPort × 3 (v2.1b) / HDMI™ × 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 575W |
| Power Connectors | 16-pin × 1 (ATX 3.1 PSU recommended) |
| Recommended PSU | 1000W |
| Card Dimension (mm) | 325 × 139 × 67 mm |
| Weight (Card / Package) | 1875 g / 2489 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 × 4320 |
