Description
| Category | Specifications |
| CPU | LGA1851 socket Supports Intel® Core™ Ultra Processors L3 cache varies by CPU (Check GIGABYTE website for latest support list) |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 up to 9066(O.C) 4× DIMM slots, up to 256GB Dual-channel architecture Supports ECC (non-ECC mode), non-ECC, and XMP |
| Graphics | Intel® HD Graphics (integrated) 1× HDMI (4K @ 60Hz) 2× DisplayPort (4K @ 144Hz) Supports triple-display HDMI 2.1, DisplayPort 2.1 |
| Audio | Realtek® Audio CODEC 2/4/5.1/7.1-channel HD Audio |
| LAN | Realtek® 2.5GbE LAN |
| Wireless | Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E Supports 2.4 / 5 / 6 GHz Bluetooth 5.3 |
| Expansion Slots | 1× PCIe 5.0 x16 3× PCIe 4.0 x1 slots |
| Storage | 2× M.2 slots (PCIe 5.0 & 4.0) 4× SATA 6Gb/s RAID 0/1/5/10 support |
| USB | USB-C (Gen1 internal) USB 3.2 Gen2 & Gen1 ports USB 2.0 ports Front & rear connectivity |
| Internal I/O | 24-pin ATX + 8-pin power Fan & pump headers RGB & ARGB headers TPM, USB headers, Q-Flash button |

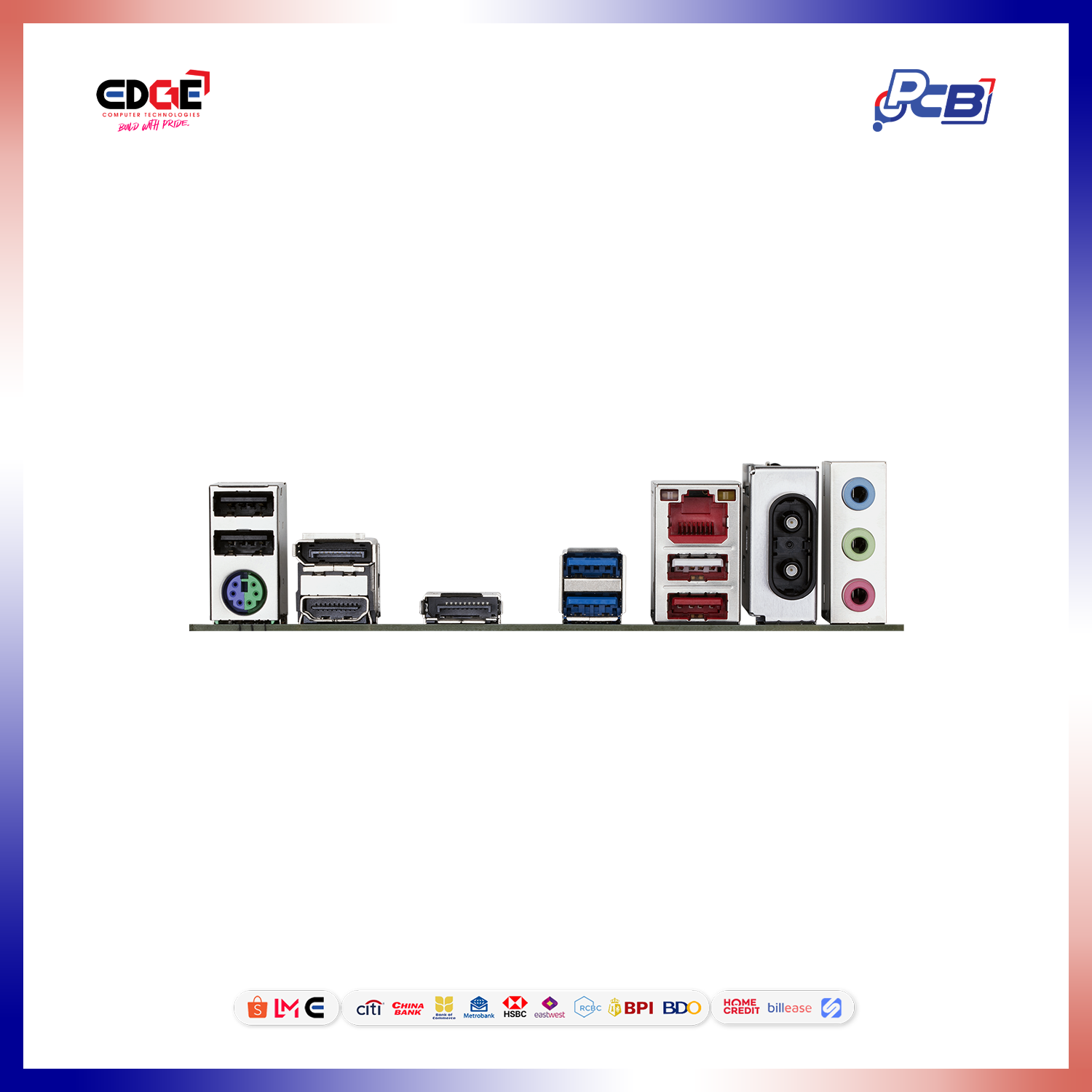

| Back Panel | PS/2 port HDMI + 2× DisplayPort USB ports RJ-45 LAN Audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection Water cooling monitoring Fan control & warnings |
| BIOS | 256 Mbit Flash AMI UEFI BIOS |
| Features | GIGABYTE Control Center (GCC) Q-Flash / Q-Flash Plus Smart Backup |
| Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| OS Support | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX (24.4cm × 24.4cm) |
