Name: TPLINK ER605 Omada 5-ports Gateaway Gigabit VPN
Brand: TPLINK
SKU: 1210002611206
Price: 4190.00 PHP
Availability: InStock

Description

SECURITY
Access Control	Source/Destination IP Based Access Control
DPI	Deep Packet Inspection Support 2421 type Applications
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Filtering	• WEB Group Filtering^§ • URL Filtering • Web Security^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding

VPN
GRE	√ (Only in Standalone Mode)
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) ^** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) ^** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)^§ • 16 OpenVPN Tunnels • “Certificate + Account” Mode • Full Mode
WireGuard VPN	• 20 Tunnels
SD-WAN	√ (Only in Controller Mode)

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface	• 1 Gigabit WAN port • 2 Gigabit LAN/WAN ports • 2 Gigabit LAN ports • 1 USB2.0(supports USB LTE dongle^‡)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button

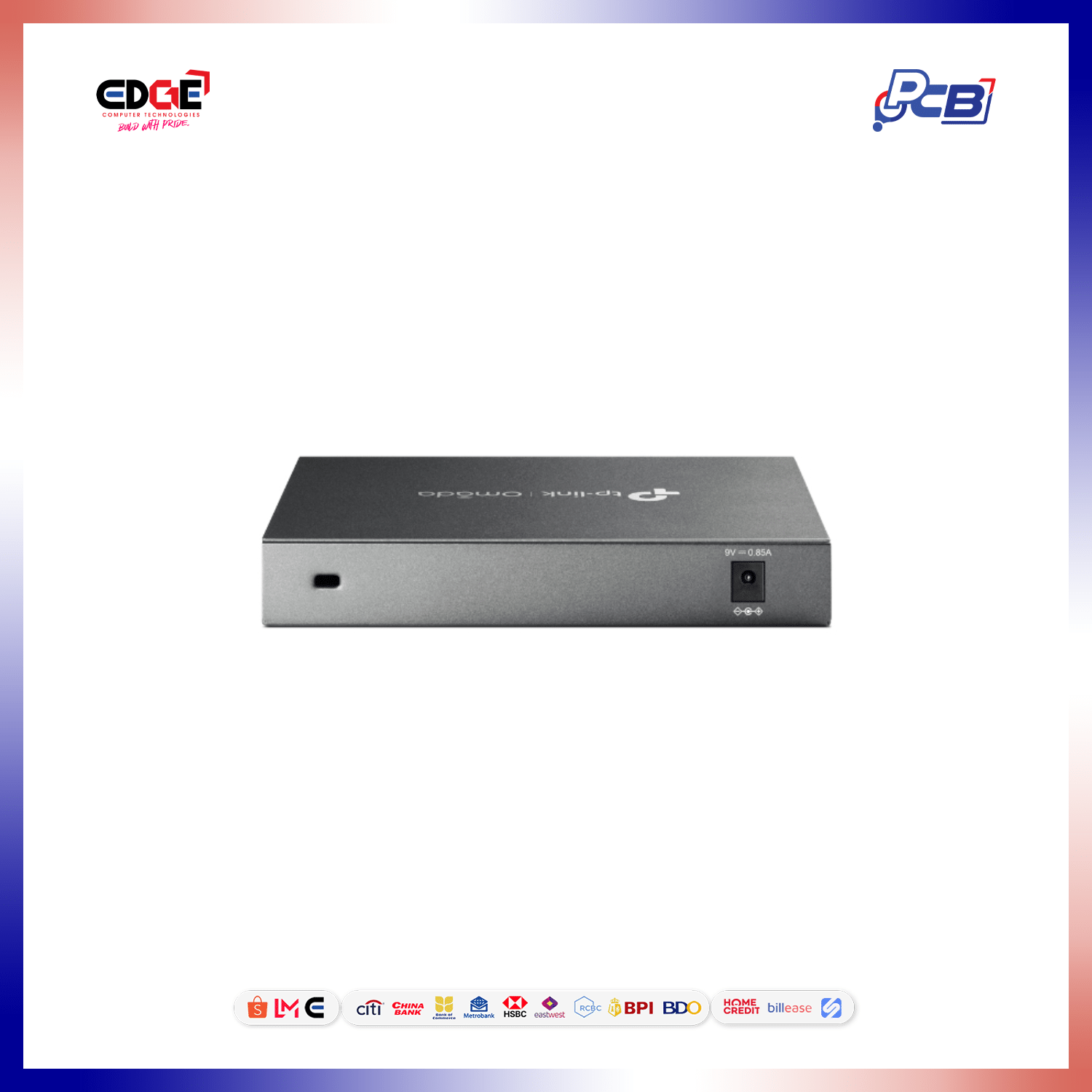

Power Supply	External 12V/1A DC Adapter
PoE Budget	–
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall-mount
Max. Power Consumption	7.94 W

PERFORMANCE
Concurrent Session	150,000
New Sessions /Second	2,600
NAT (Static IP)	• Upload: 945.77 Mbps • Download: 938.79 Mbps • Bi-Directional: 1808.29 Mbps
NAT(DHCP)	• Upload: 945.54 Mbps • Download: 945.66 Mbps • Bi-Directional: 1802.77 Mbps
NAT(PPPoE)	• Upload: 939.71Mbps • Download: 939.43 Mbps • Bi-Directional: 1788.54 Mbps
NAT (L2TP)	• Upload: 815.55 Mbps • Download: 835.59 Mbps • Bi-Directional: 903.13 Mbps
NAT (PPTP)	• Upload: 813.23 Mbps • Download: 850.91 Mbps • Bi-Directional: 894.41 Mbps
66 Byte Packet Forwarding Rate	Upload: 1,388,815pps Download: 1,388,806pps
1,518 Byte Packet forwarding rate	Upload: 81,067pps Download: 81,067pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 259.78 Mbps • ESP-SHA256-AES256: 260.81 Mbps • ESP-SHA384-AES256: 37.65 Mbps • ESP-SHA512-AES256: 38.32 Mbps
GRE	Unencrypted: 460.97 Mbps Encrypted: 161.83 Mbps
OpenVPN	• 21.70 Mbps
L2TP VPN Throughput	• Unencrypted: 640.99 Mbps • Encrypted: 77.31 Mbps
PPTP VPN Throughput	• Unencrypted: 759.55 Mbps • Encrypted: 75.80 Mbps
SSL VPN Throughput	–
WireGuard VPN Throughput	• 123.4 Mbps
DPI Throughput	TCP: 905 Mbps; UDP: 788 Mbps

Management Features
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

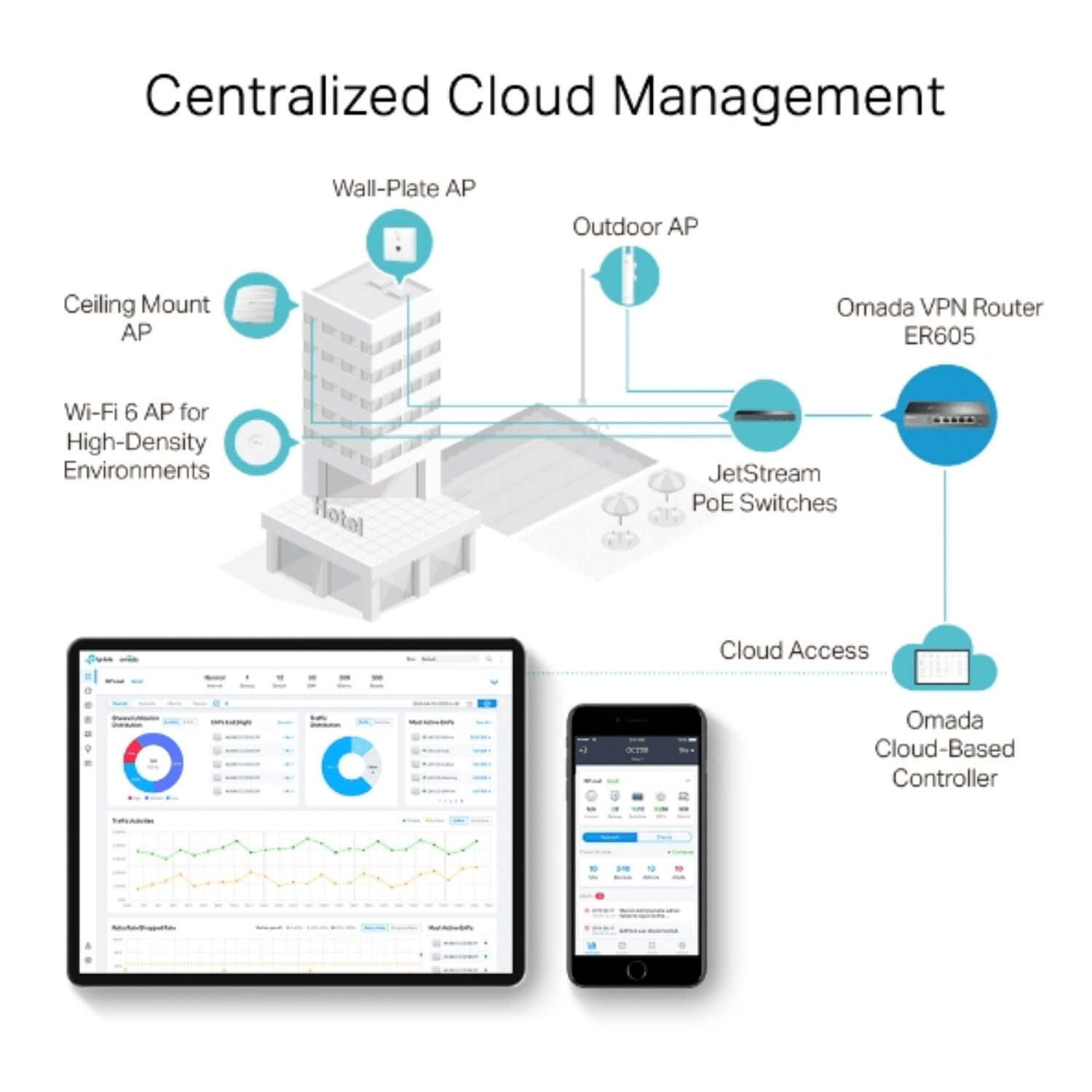

Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^§ • NTP Synchronize^§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

BASIC FUNCTIONS
LAN DNS	√
WAN Connection Type	• Static • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP^§ • OSPF^§
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^* • Hotspot（Local User / Voucher^/ SMS^/ Radius^） • External Radius Sever • External Portal Sever^ • LDAP^§

OTHERS
Certification	CE, FCC
Package Content	• ER605 • Power Adapter • RJ-45 Ethernet Cable • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
