Description

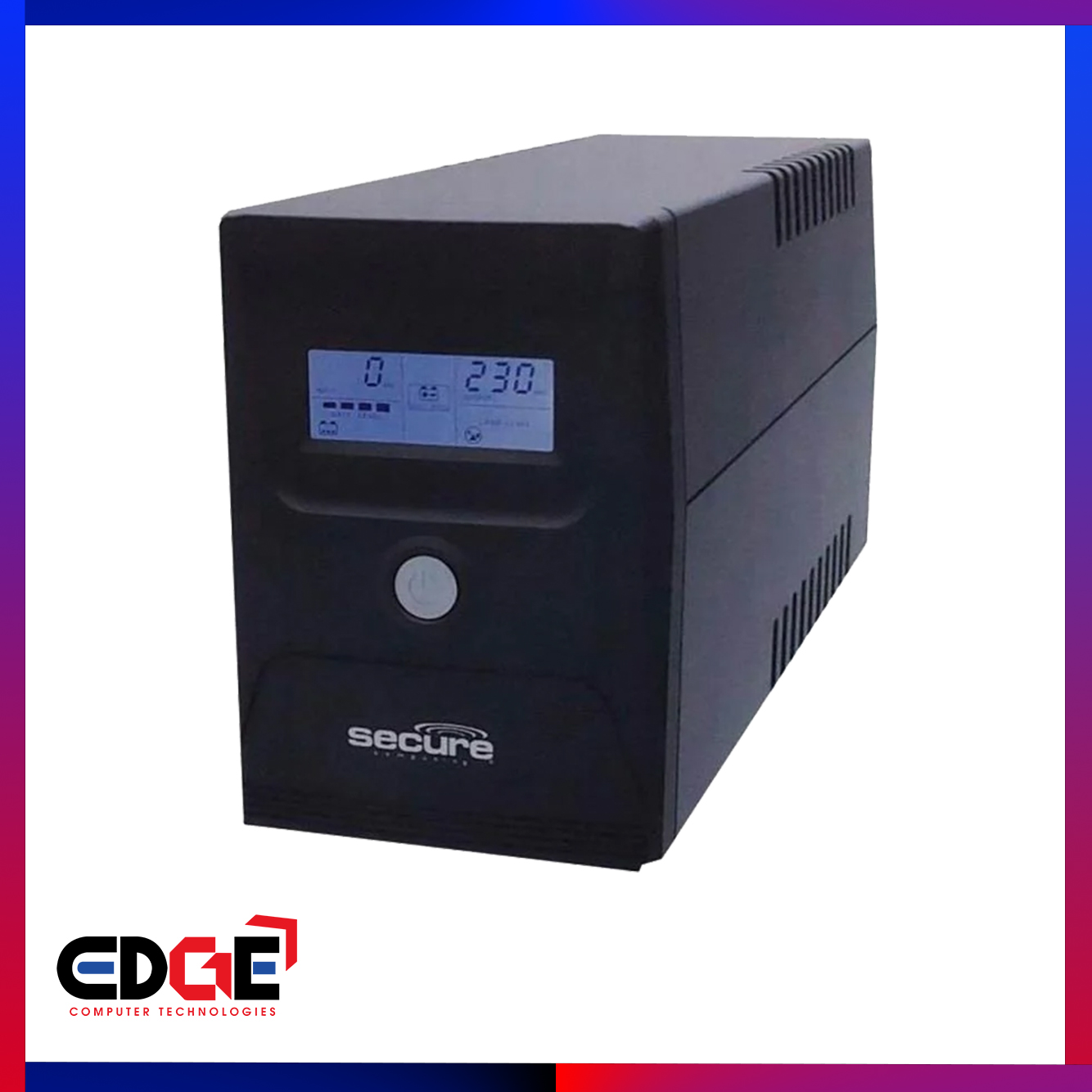

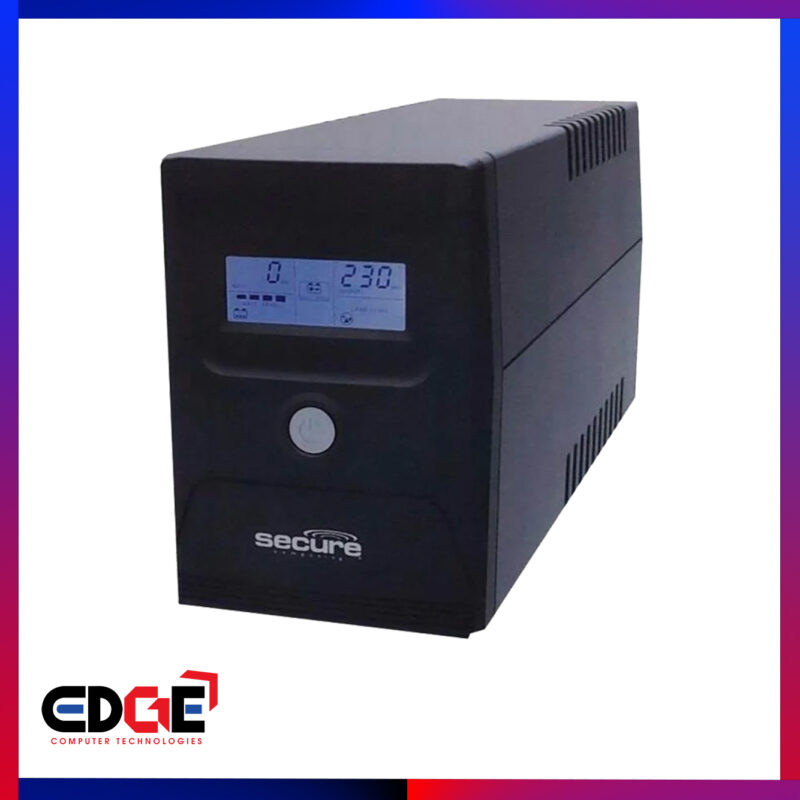

| Model | 650VA PRO |
| Capacity | 650VA/455W |
| Input Voltage | 230VAC |
| Input Voltage Range | 140-300VAC |
| Frequency Range | 50-60Hz (auto sensing) |
| AVR | AVR automatically increase output voltage 20% to 40% above input voltage if -15% to -39% of nominal. AVR decrease output voltage 11% to 15% below input voltage if +10% to 30% of nominal. |
| AC Voltage Regulation (Batt. Mode) | ±10% |
| Frequency Range (Batt. Mode) | 50 or 60Hz ± 1Hz |
| Transfer Time | Typical 4-8ms |
| Topology | Line-interactive with Built-in AVR |
| Wave Form (Batt. Mode) | Pure Sine Wave under main mode, Simulated Sine Wave under battery mode |
| Protection | Overload: As load over 130%, UPS is protected in 3seconds. Load input: Fuse for overload and short circuit protection. Short Circuit: UPS cut off immediately. |
| Battery | 12V/7Ahx1 (compact) Type: Sealed lead acid maintenance-free. Protection: Auto-inspection, discharge protection and battery fault caution. Battery: Normally, battery is charge once in three months. |
| Typical Recharge Time | 9-10 hours |
| Backup Time | 6-30 minutes (depending on computer load) |
| Indicator | AC mode: LCD Battery Mode: LCD Fault Mode: LCD |
| Audible Alarm | Backup mode: sounding every 10secs Low Battery: sounding every 1sec Overload : sounding every 0.5sec Fault: continuous sound |
| Noise Level | less than 45-55dB |
| Outlet Socket | back-up x4, total of 4 sockets |
| Plug & Socket | NEMA 5-15p & NEMA 5-15r |
| Power Cord Length | 1.2meter |
| Dimension | Size (LxWxH) mm: 298x101x142 |
| Weight | GW:3.95kgs NW:3.60kgs |
| Humidity | 0-90% RH @ 0-40°C (non-condensing) |
