₱3,500.00
Availability: Out of Stock
FEATURES
- LED Panel
- Built-in enhanced Buck&Boost AVR
- Cold start function
- Auto restart during AC recovery
- Output short circuit & Overload protection
- Battery Overcharge & Overdischarge protection
- Fast charger
- Smart RS232/USB interface for power management
Out of stock
Description
Description
TECHNICAL SPECIFICATIONS
| MODEL |
| Model Name |

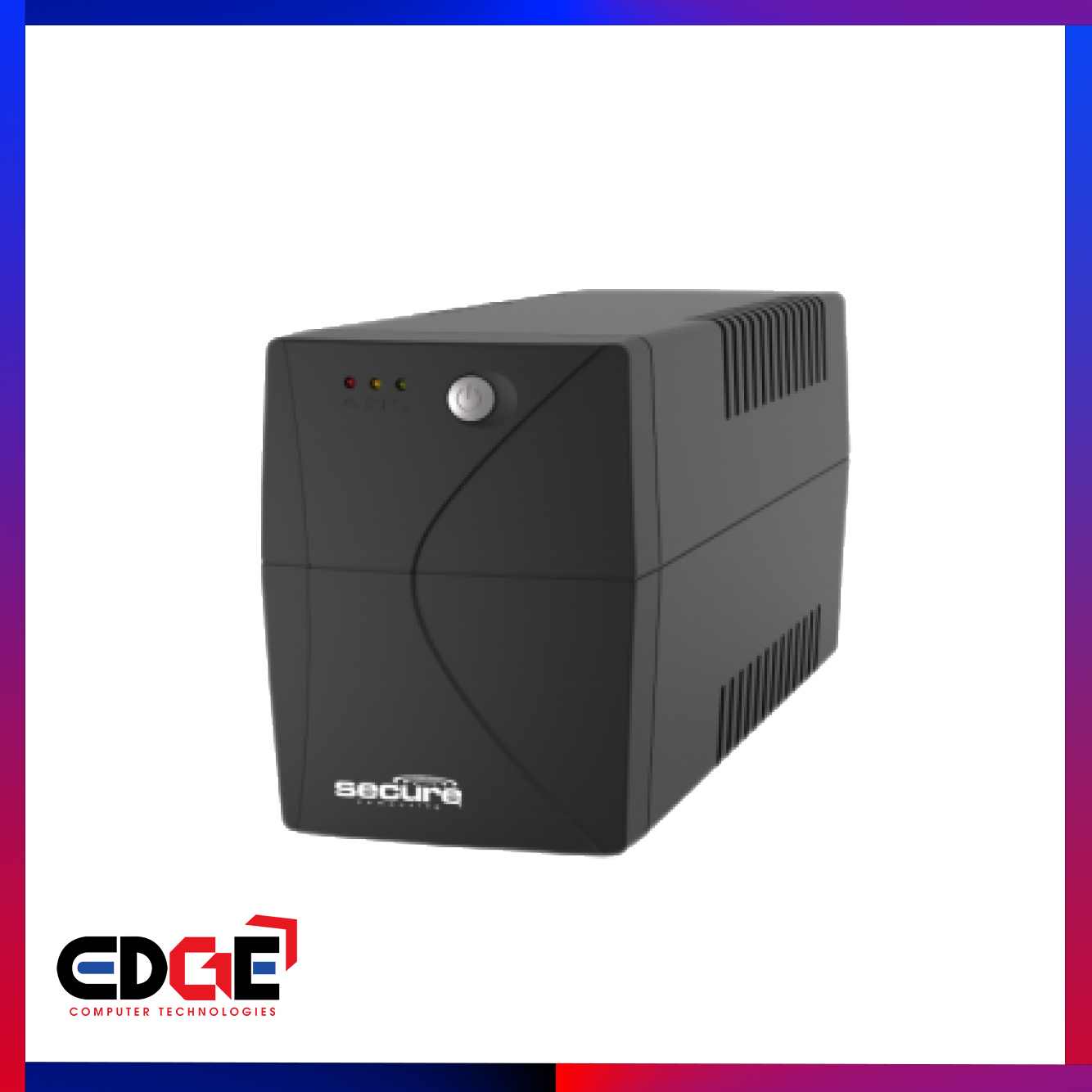

UPS-1500VA |
| Power Rating (VA) |
1500VA |
|
| INPUT |
| Voltage Range |
140-300V |
| Frequency |
>40Hz |
|
| OUTPUT |
| Voltage (Inverter Mode) |
220V |
| Capacity |
1500VA/1050W |
| Frequency (Inverter Mode) |
50/60Hz ± 1Hz |
| Transfer Time |
10ms including direction time |
| Waveform Over/Under Volt. |
AC Mode: Sine wave; DC Mode: Simulated Sine wave |
|
| PROTECTION |
| Spike & Surge Suppression |
YES |
| Over/Under Voltage |
Switch to battery mode, when main’s voltage exceeds range |
| Overload/Short Circuit |
As load over 130%, UPS is protected in 3seconds/ UPS cut off immediately |
|
| BATTERY |
| Type |
Lead-Acid Maintenance Free |
| Recharge Time |
8 Hours > 90% |
|
| PHYSICAL |
|
|
| EFFICIENCY |
|
|
| ACCOUSTIC |
|
|
| ENVIRONMENTAL |
| Temperature |
0°-40°C |
| Humidity |
0-95% |
|
| POWER OUTLETS |
| No. And Types |
4 Sockets NEMA |
| Sockets |
AC input
Output socket
USB & RJ11 communication
USB communication
RS232 communication
RJ45
FUSE
Breaker |
|
