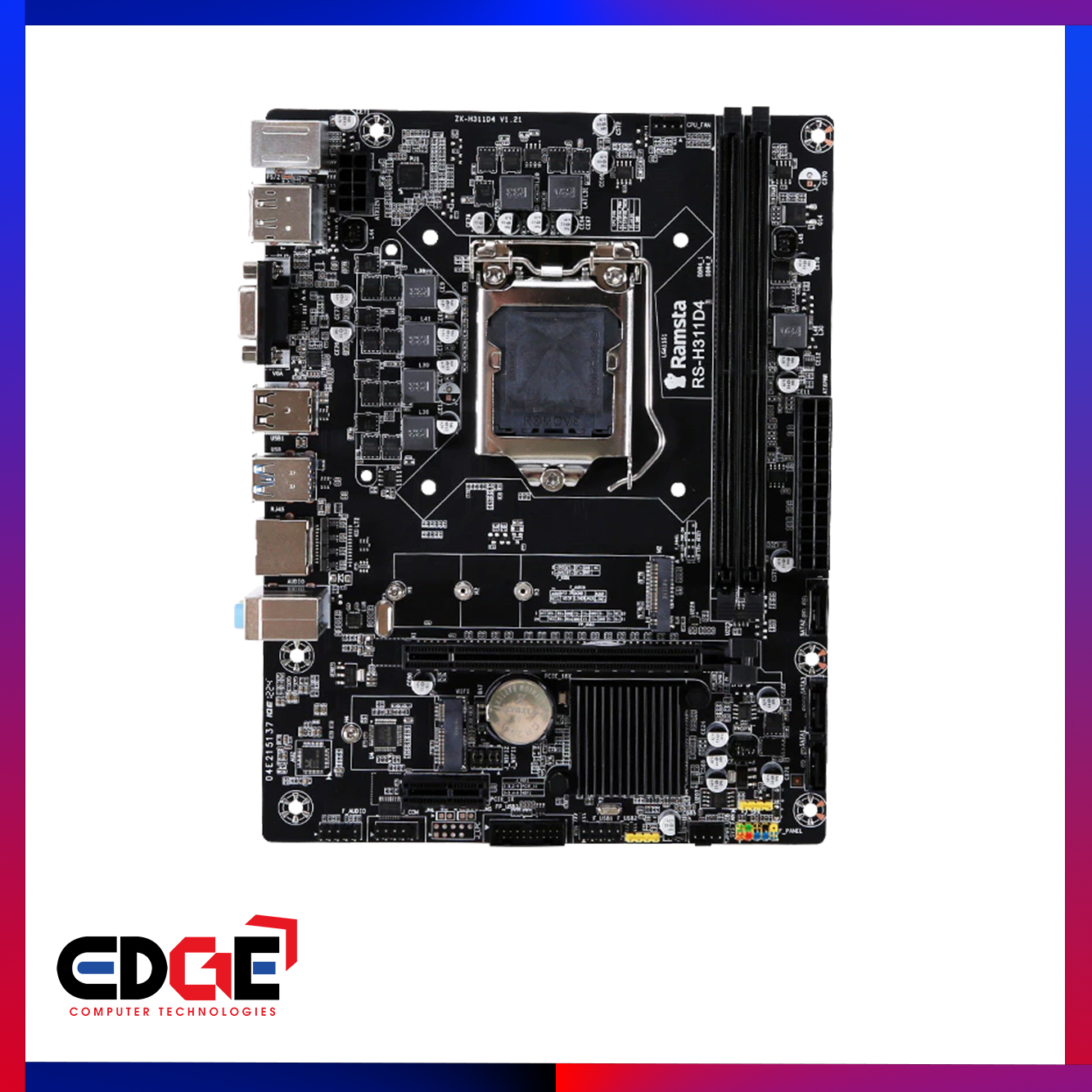

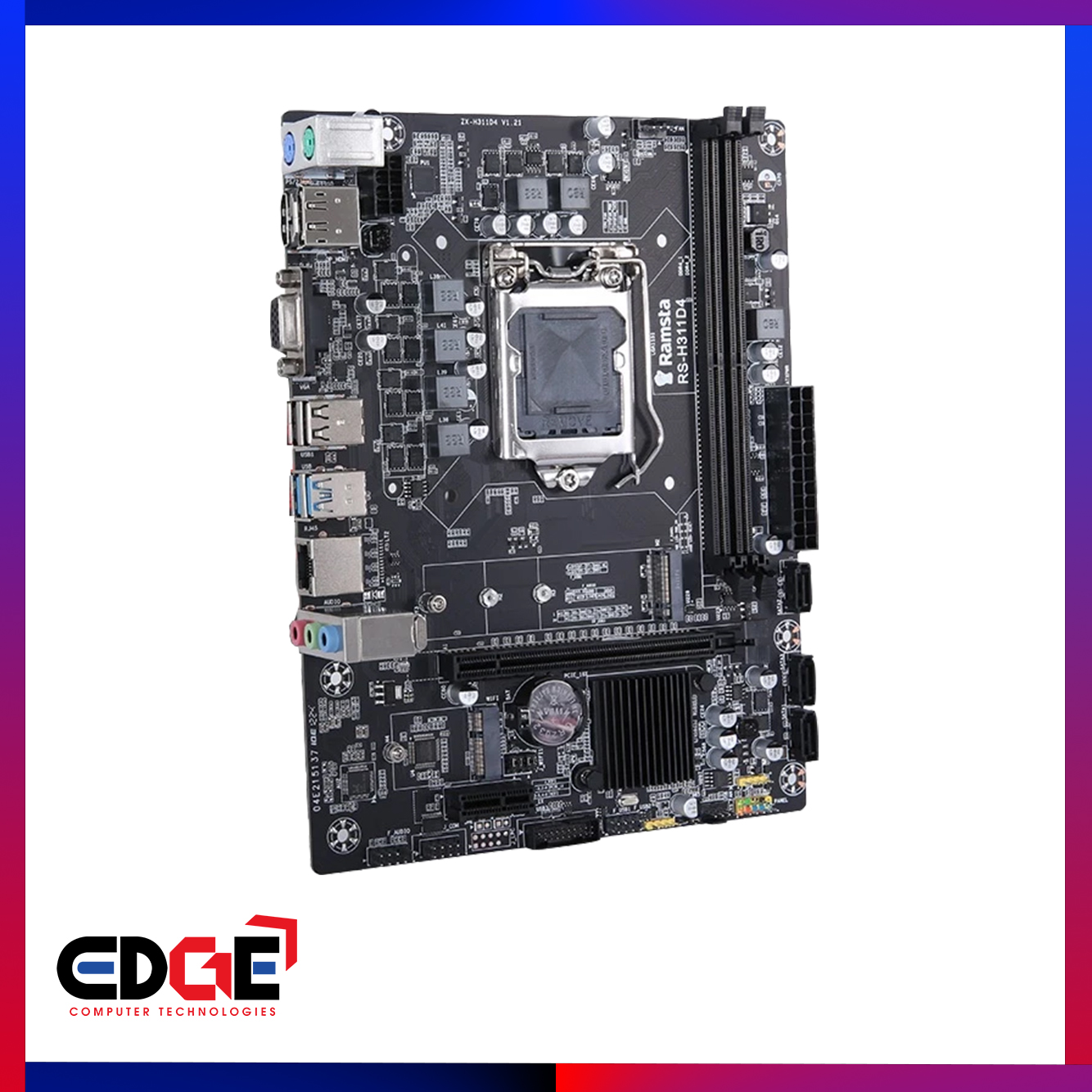

| CPU |
Supports LGA 1151 Socket i3/i5/i7 Series CPU |
| Chipset |
Intel 1110/B150/1170 Chipset (Optional) |
| Memory |
- 2*288-pin DDR4 Slots
- Memory up to 32GB
- Supports dual-channel DDR4 2133MHz/2400/2666MHz memory
|
| BIOS |
EFI-BIOS |
| I/O Interface |
- 1x PS/2 Port
- 1x VGA Port
- 1x DP Port
- 1x HDMI Port
- 2x USB 2.0, compatible with USB 1.0
- 2x USB 3.0 Port
- 1x RJ45 Port
- 1x Audio Port (Line In / Line Out / Mic In)
|
| Onboard Interface |
- 1x 24-pin ATX Power Connector
- 1x 8-pin ATX 12V Power Connector
- 1x USB Connectors, can support 2*USB 2.0
- 1x USB Connectors, can support 1*USB 2.0
- 1x USB Connectors, can support 2*USB 3.0
- 1x F _AUDIO Connector
- 1x F _PANEL Connector
- 1x SPEAKER Connector
- 2x FAN Connectors
- 3x Serial ATA Connection Ports
- 1x COM Connector
|
| Integrated Sound |
- with 6-channel HD Audio Code Onboard
- provides front audio and stereo mic interface
|
| Integrated LAN |
with 10/100/1000Mbps LAN onboard |
| Expansion Slot |
- 1x PCI Express x16 Slot
- 1x M.2 slot
- 1x PCIe
- 1x WIFI Slot
|
| FORM FACTORÂ |
Micro ATX (17cm x 22cm) |
