Description

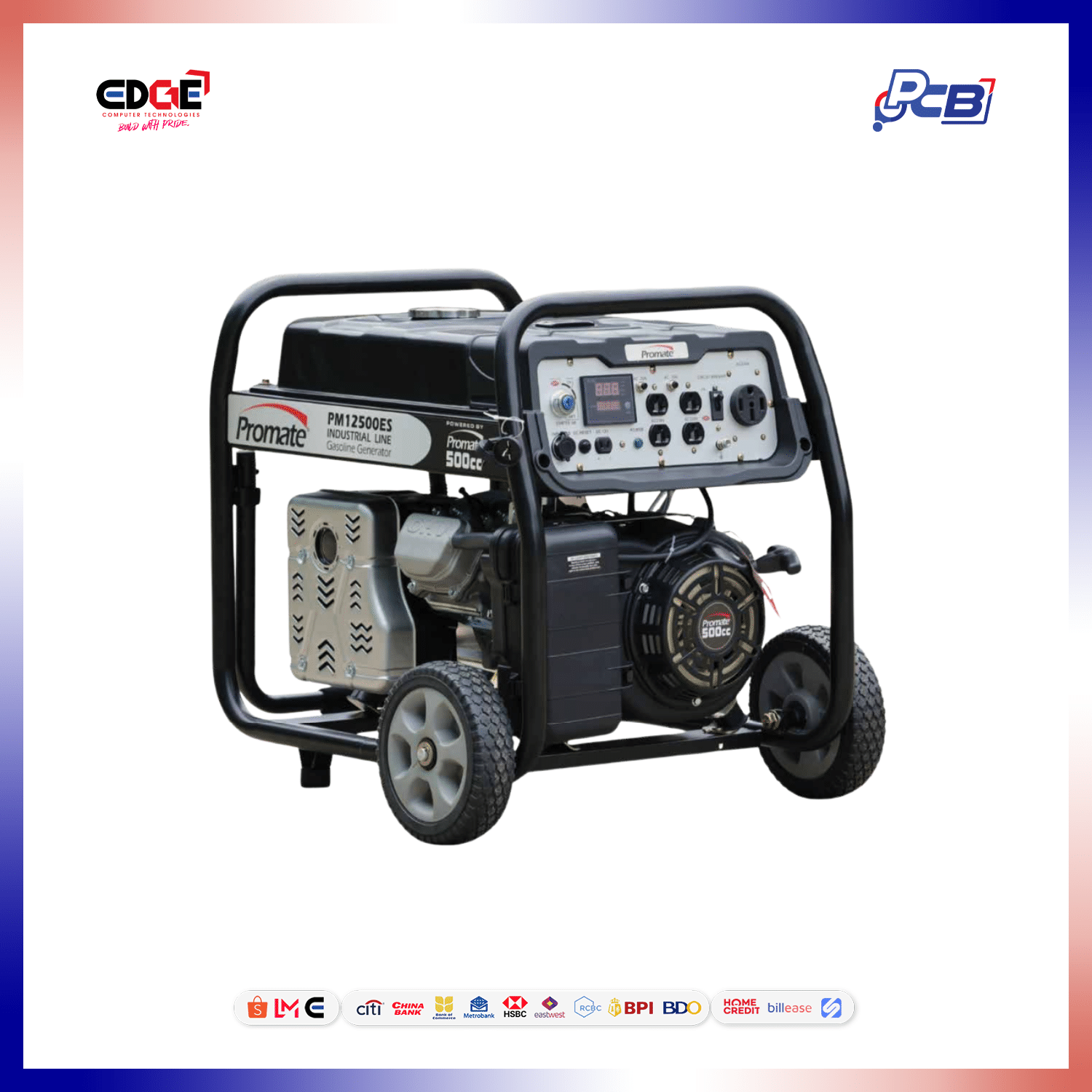

PROMATE PM12500ES Gasoline Generator – Specifications
Electrical Aspects
| Specification | Details |
|---|---|
| Rated Output | 10,000 Watts |
| Surge Output | 12,500 Watts |
| Phase | Single Phase |
| Rated Voltage | 230V |
| Frequency | 60Hz |
| Rated Current | 43.47A |
| Insulation Class | F |
Engine Specifications
| Specification | Details |
|---|---|
| Engine | Promate 500CC |
| Cooling Mode | Air Cooled |
| Cylinder | Single Cylinder OHV 500CC |
| Starter | Manual / Electric Start |
| Noise Level @ 7m | 84dB(A) |
| Fuel Used | Unleaded Gasoline |
| Fuel Capacity | 28L |
| Low Oil Alert | Yes |
| Run Time @ 75% Load | 6.15 Hours |
General Specifications
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 720 × 530 × 610 mm |
| Weight | 88kg |
| Receptacles | 2 × 20A Duplex 230V; 1 × 50A 230V; 1 × 12V DC |
| 5-in-1 Digital Display | Frequency, Hour, Volts, Ampere, Watts |
| Auto Choke | Yes |
| ATS Input Ready | Yes |
| Wheels | Pre-installed |
| Warranty | 1 Year Limited Warranty |
Note: ATS accessories are sold separately.
