Description
SPECIFICATIONS
| Graphics Processing | GeForce RTX™ 5070 12G GAMING TRIO OC |
| Model Name | G5070-12GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz |
| CUDA® CORES | 6144 Units |
| Memory Speed | 28 Gbps |
| Memory | 12GB GDDR7 |
| Memory Bus | 192-bit |

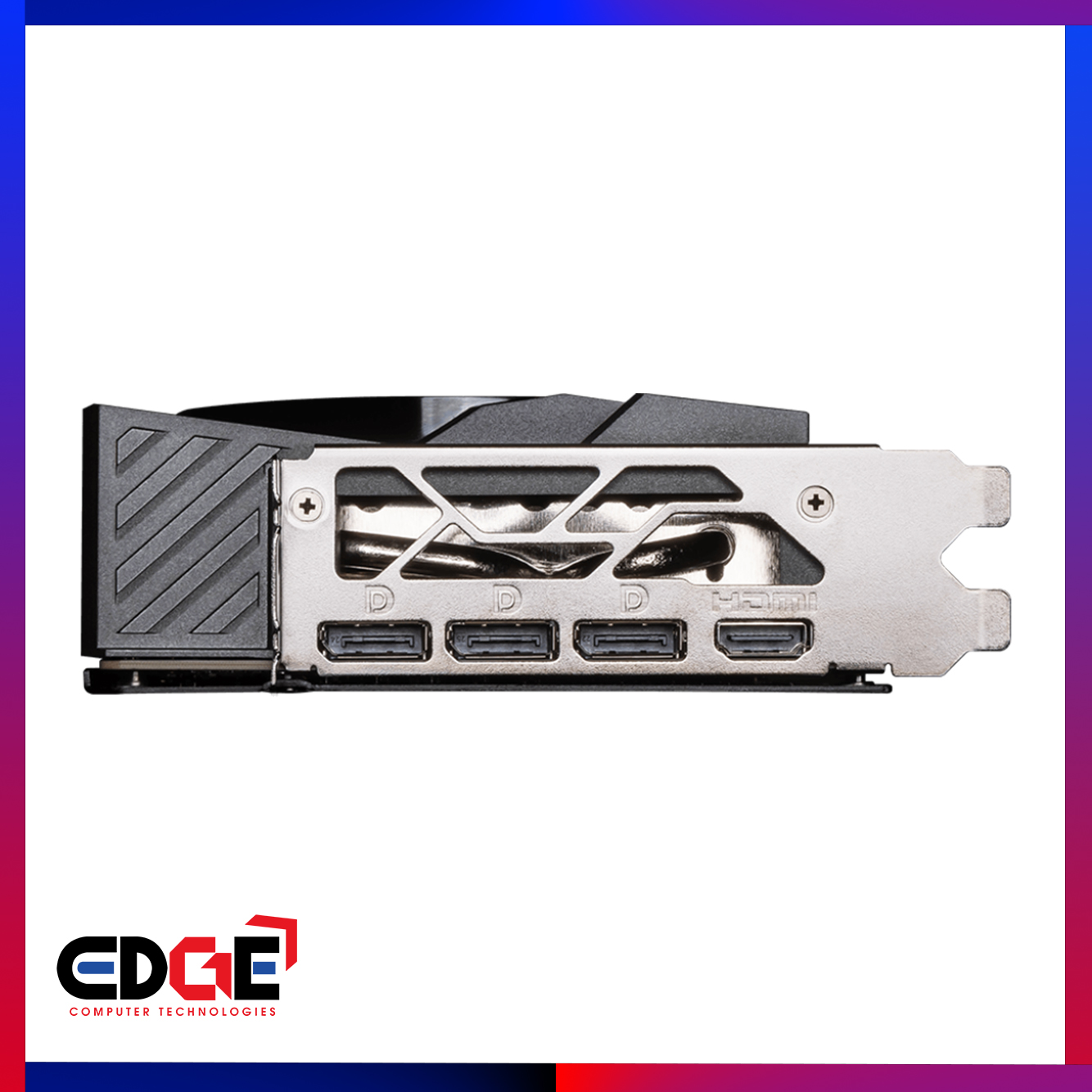

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 250W |
| Power Connectors | 16-pin x 1 (ATX 3.1 PSU recommended) |
| Recommended PSU | 650W |
| Card Dimension (mm) | 338 x 140 x 50 mm |
| Weight (Card / Package) | 1187 g / 1705 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
