Description
SPECIFICATIONS
| Marketing Name |

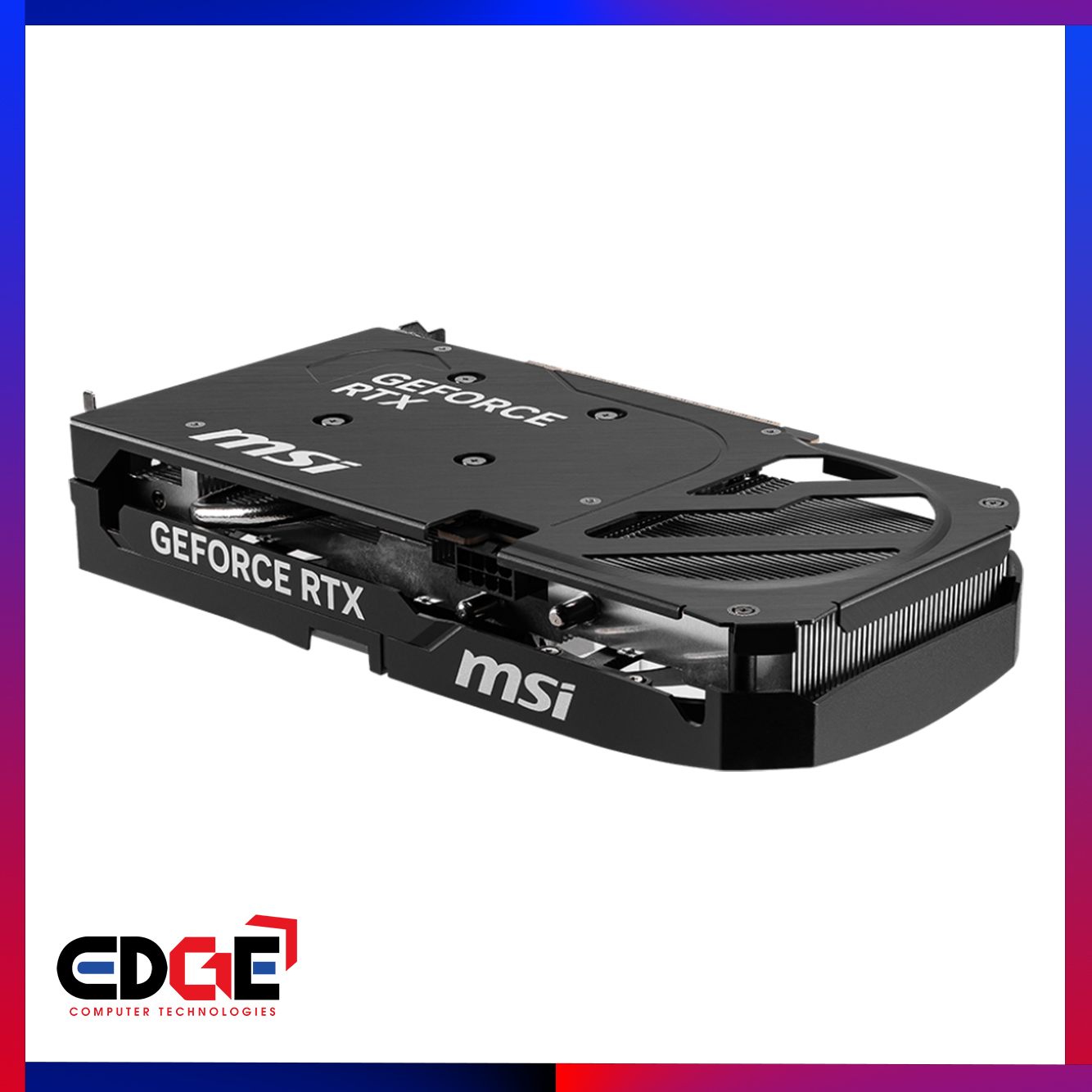

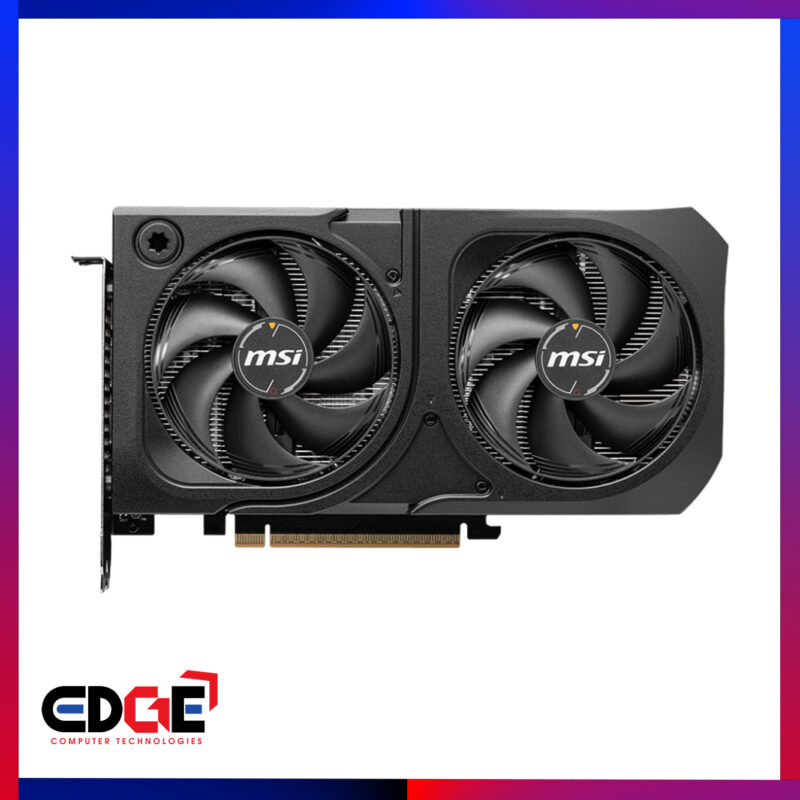

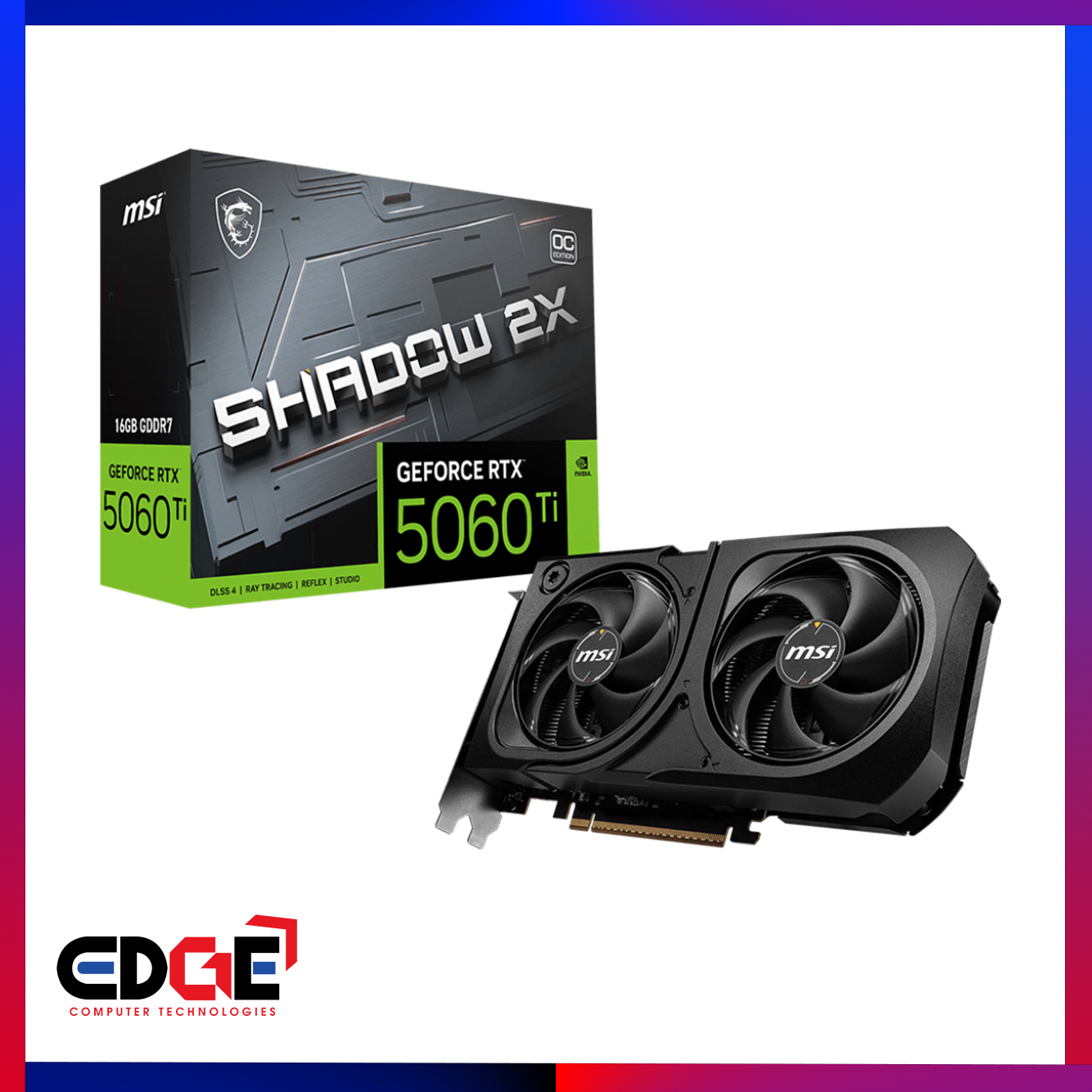

GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS
|
| Model Name |
G506T-16S2CP
|
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5060 Ti
|
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® Cores |
4608 Units
|
| Memory Speed |
28 Gbps
|
| Memory |
16GB GDDR7
|
| Memory Bus |
128-bit
|

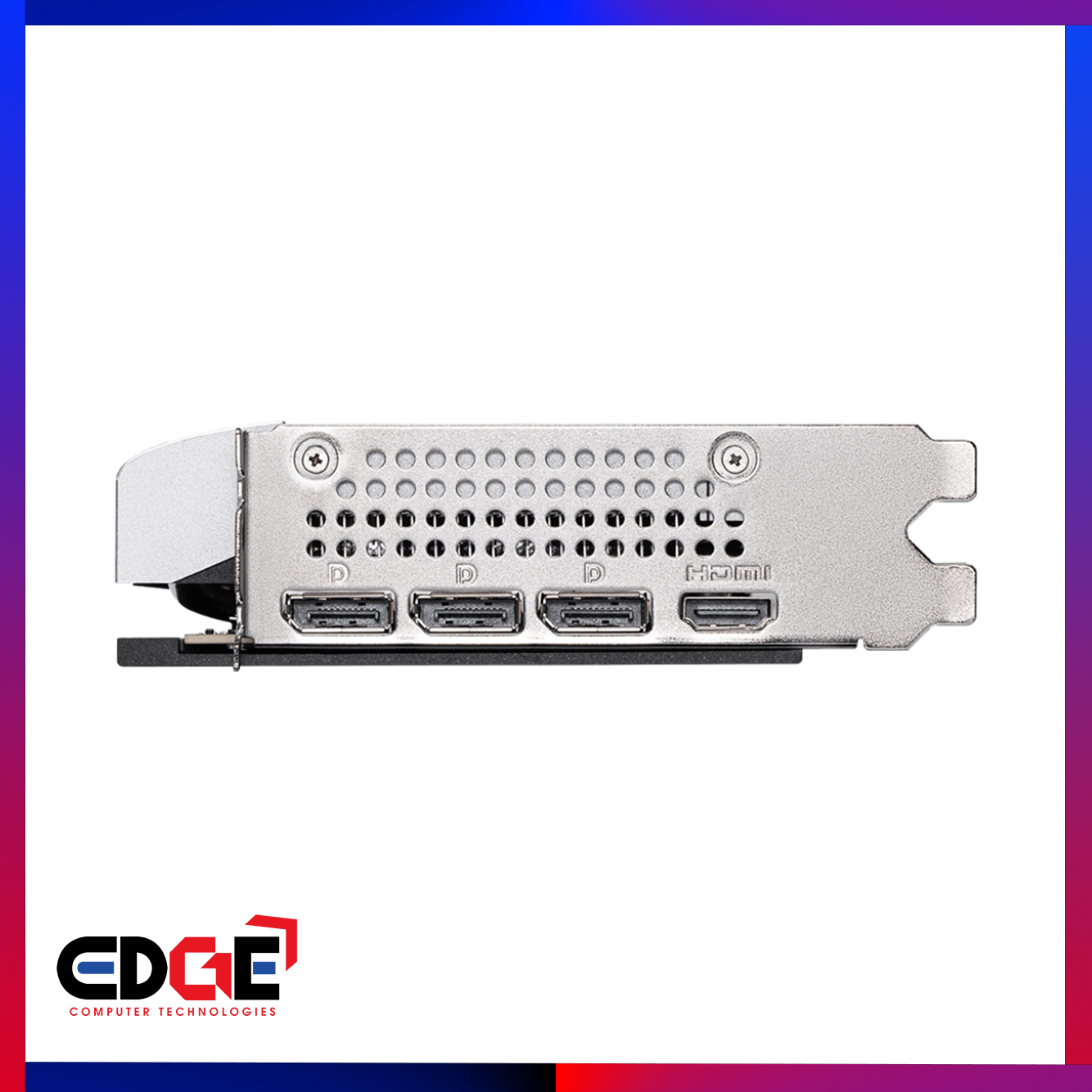

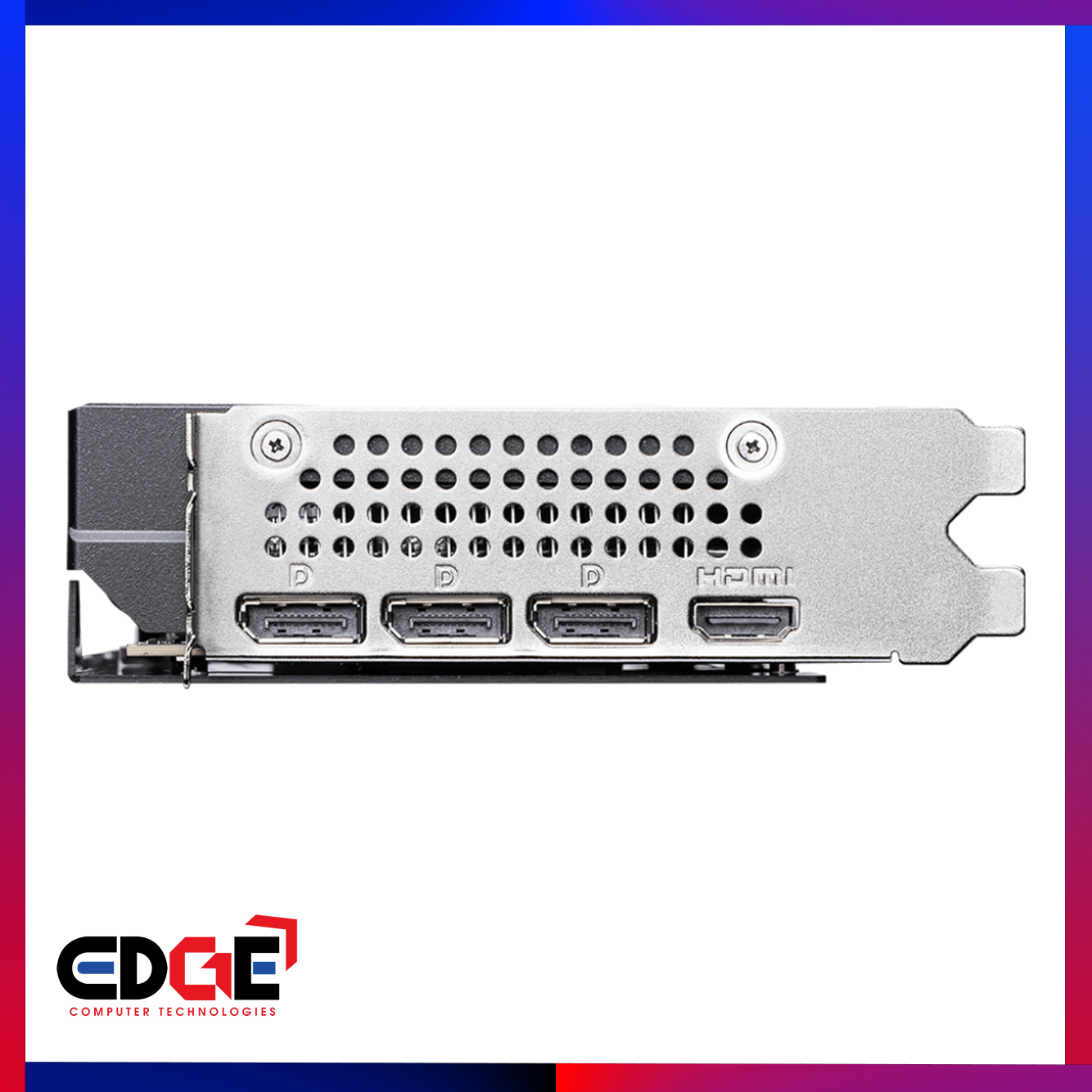

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power Consumption |
180 W
|
| Power Connectors |
8-pin x 1
|
| Recommended PSU |
600 W
|
| Card Dimension |
226 x 126 x 41 mm
|
| Weight (Card / Package) |
578 g / 851 g
|
| DIRECTX Version Support |
12 Ultimate
|
| OPENGL Version Supoort | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Y |
| Digital Maximum Resolution |
7680 x 4320
|
