Description
SPECIFICATIONS
| Marketing Name | GeForce RTX™ 5060 8G SHADOW OC |
| Model Name | G5060-8S2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2535 MHz (MSI Center) Boost: 2527 MHz |
| CUDA® Cores | 3840 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |

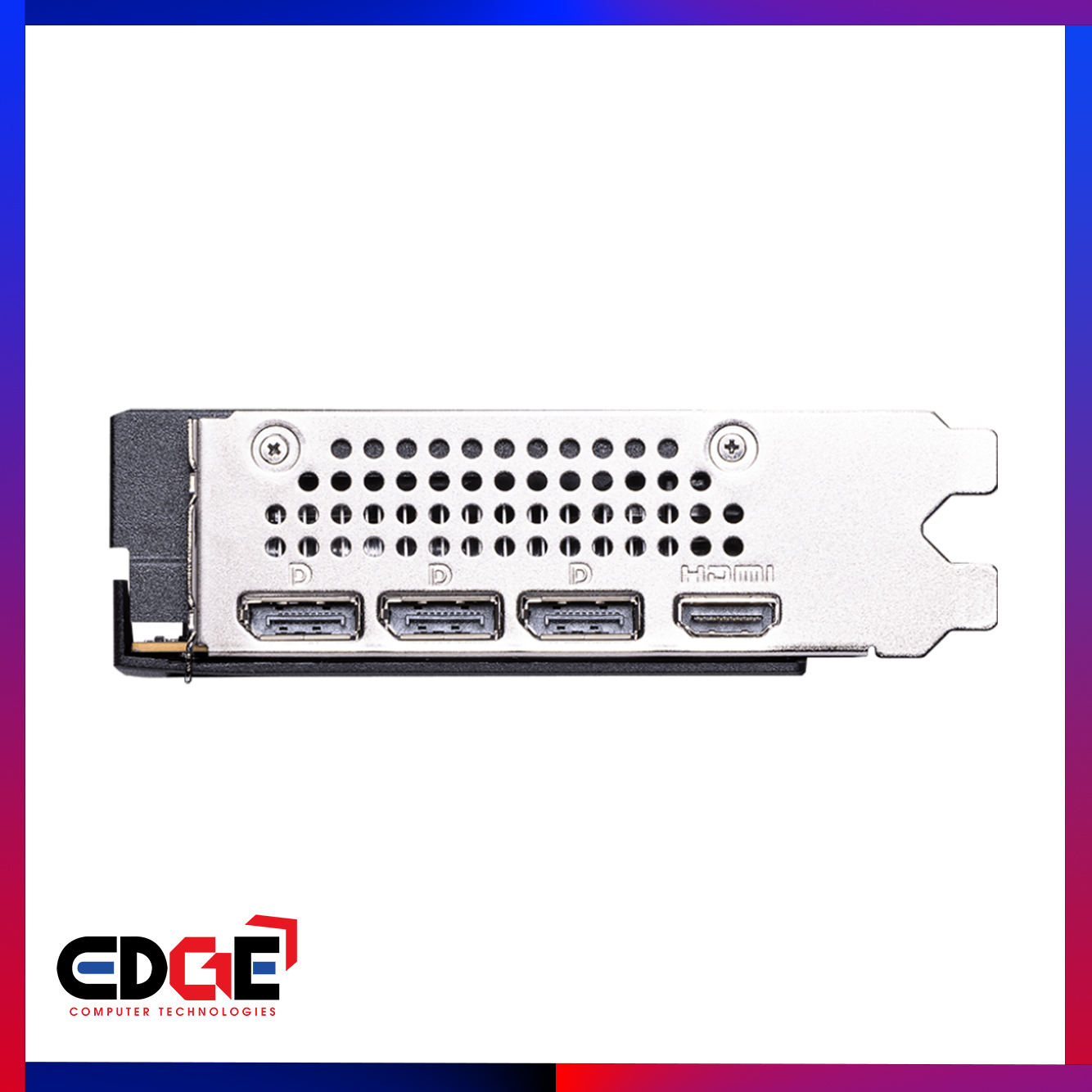

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power Consumption | 145 W |

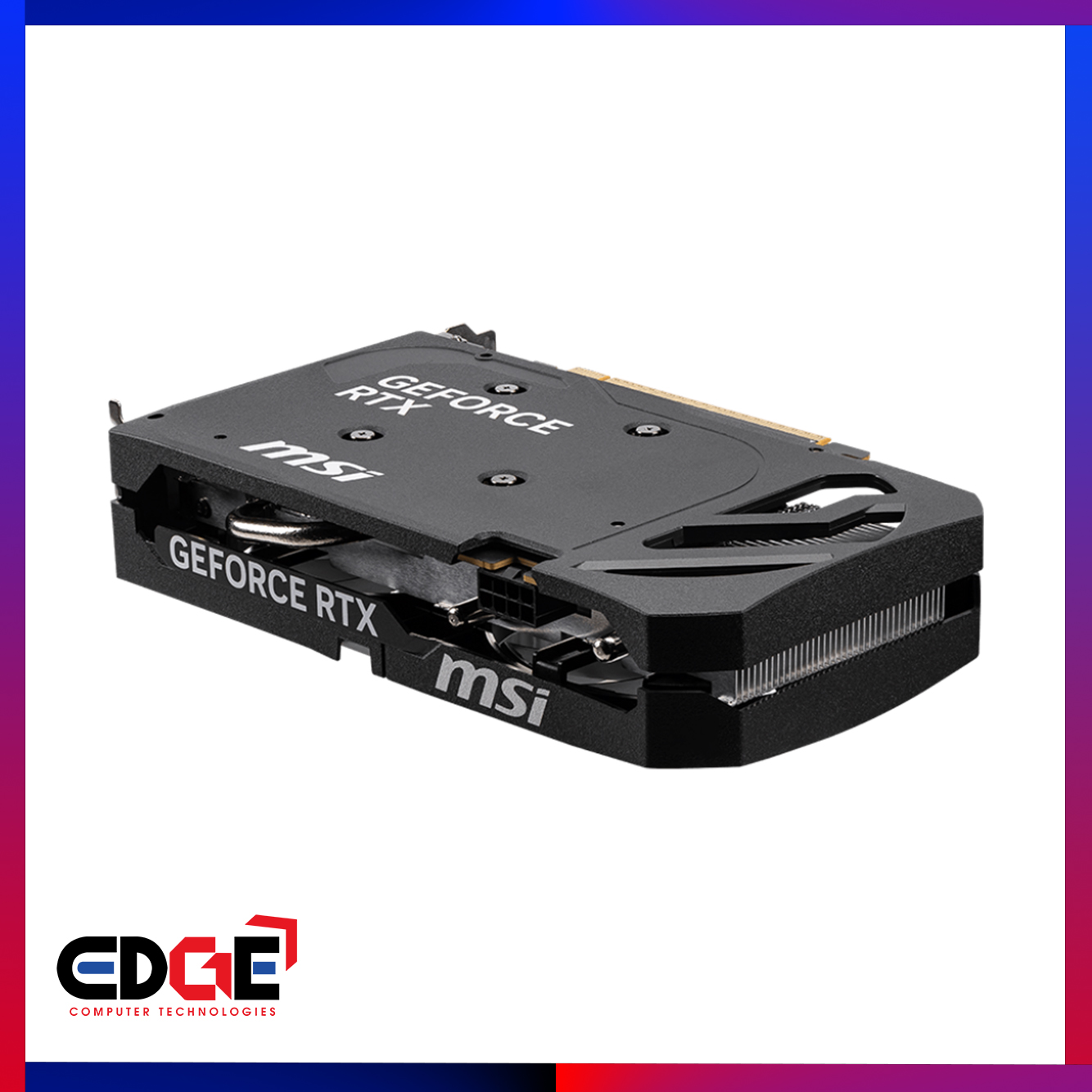

| Power Connectors | 8-pin x 1 |
| Recommended PSU | 550 W |
| Card Dimension | 197 x 120 x 40 mm |
| Weight (Card / Package) | 493 g / 814 g |
| DIRECTX Version Support | 12 Ultimate |
| OPENGL Version Supoort | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
