Description
| Technical Specifications | |
|---|---|
| Processor & Chipset | |
| CPU Socket | AMD Socket AM5 |
| Supported CPU | AMD Ryzen™ 9000 / Ryzen™ 8000 / Ryzen™ 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | |
| Memory Type | DDR5 |
| Supported Memory Speed | DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600 / 5200 / 4800 MT/s |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | Up to 256GB (64GB per DIMM) |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Overclocking Support | AMD EXPO™ and XMP Memory Modules |
| Onboard Graphics | |
| Integrated Graphics | AMD Radeon™ Graphics Support |
| USB4 Display Output | 2 x USB4® USB Type-C®, DisplayPort output up to 3840 x 2160 @240Hz |
| HDMI Output | 1 x HDMI 2.1, up to 4096 x 2160 @60Hz, HDCP 2.3, HDR Support |
| Front HDMI | 1 x HDMI 1.4, up to 1920 x 1080 @30Hz |
| Audio | |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Support | High Definition Audio, 2/4/5.1/7.1-channel |
| Additional Audio | S/PDIF Out Support, DSD Audio Support |
| Network & Wireless | |
| LAN | Realtek® 5GbE LAN (5Gbps / 2.5Gbps / 1Gbps / 100Mbps) |
| Wi-Fi | Qualcomm® Wi-Fi 7 QCNCM865 |
| Wireless Standard | 802.11a/b/g/n/ac/ax/be, 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.4 |
| Wireless Feature | 11be 320MHz Support |
| Expansion Slots | |
| PCI Express x16 | 1 x PCIe 5.0 x16 (Ryzen™ 9000/7000 Series) PCIe 4.0 x8 (Ryzen™ 8000 Phoenix 1) PCIe 4.0 x4 (Ryzen™ 8000 Phoenix 2) |
| Additional PCIe Slots | 1 x PCIe 4.0 x4 1 x PCIe 3.0 x2 |
| Storage Interface | |
| M.2 Slots | 4 x M.2 Socket 3 (M Key) |
| M.2 Support | PCIe 5.0 x4/x2 SSD Support (Ryzen™ 9000/7000) PCIe 4.0 x4/x2 SSD Support (Ryzen™ 8000) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | NVMe: RAID 0 / 1 / 5 / 10 SATA: RAID 0 / 1 / 10 |
| USB | |
| Rear USB Ports | 2 x USB4® Type-C® (DisplayPort) 1 x USB Type-C® USB 3.2 Gen 2 5 x USB 3.2 Gen 2 Type-A 3 x USB 3.2 Gen 1 |
| Internal USB Headers | 1 x USB Type-C® Gen 2×2 (65W PD/QC4+ Support) 2 x USB 3.2 Gen 1 Headers 2 x USB 2.0 Headers |
| Internal I/O Connectors | |
| Power Connectors | 1 x 24-pin ATX 2 x 8-pin ATX 12V 1 x PCIe Power Connector |
| Fan Headers | 1 x CPU Fan Header 1 x CPU Water Cooling Pump Header 4 x System Fan Headers 2 x System Fan/Water Cooling Pump Headers |
| RGB Headers | 3 x Addressable RGB Gen2 Headers 1 x RGB LED Header |
| Other Connectors | Front Panel Header Front Audio Header TPM Header Temperature Sensor Headers Noise Detection Header |

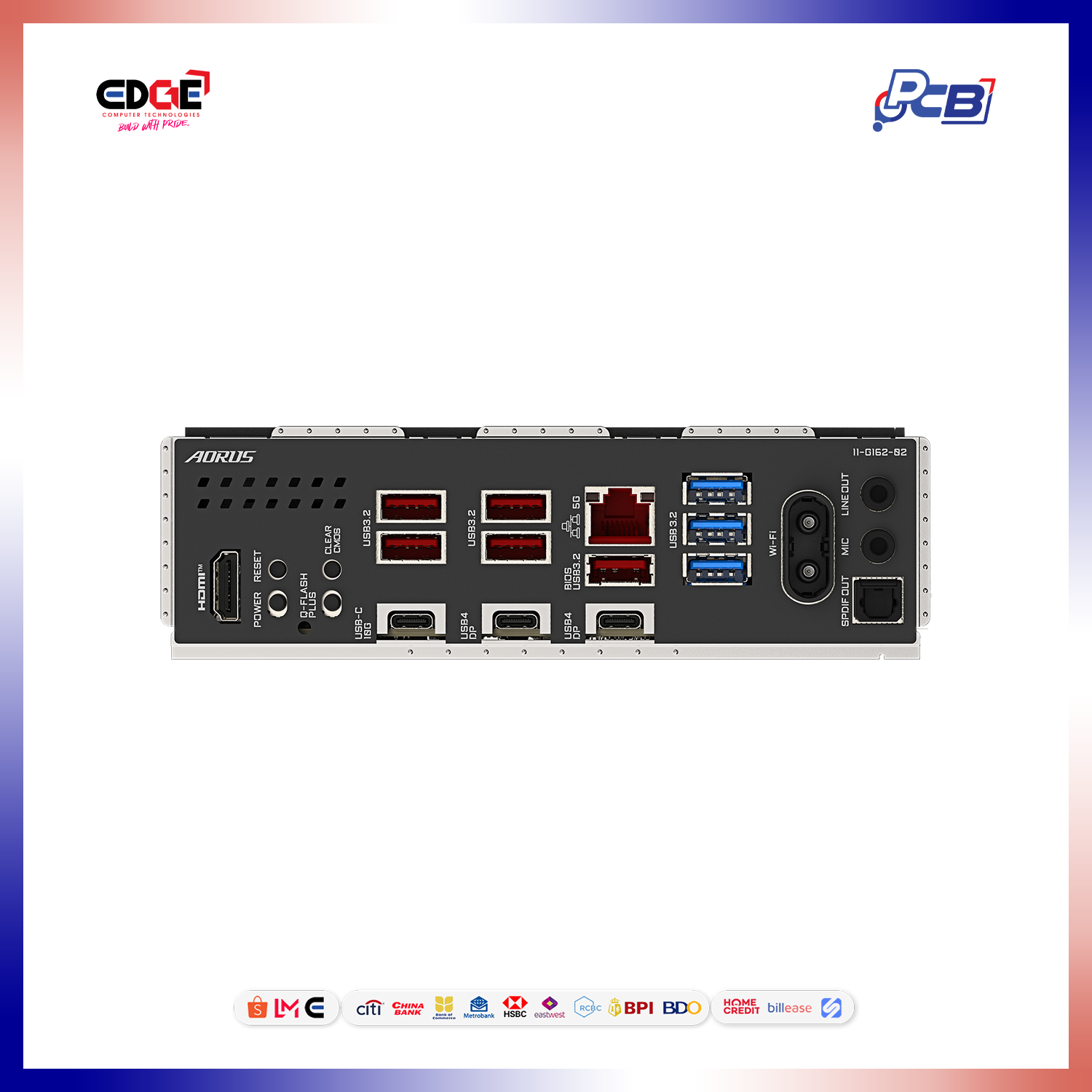

| Back Panel Connectors | |
| Display | 1 x HDMI Port |
| USB | 5 x USB 3.2 Gen 2 Type-A 1 x USB Type-C Gen 2 2 x USB4® Type-C 3 x USB 3.2 Gen 1 |
| Network | 1 x RJ-45 Port |
| Antenna | 2 x SMA Antenna Connectors (2T2R) |
| Audio | 2 x Audio Jacks + Optical S/PDIF Out |
| Buttons | Power Button, Reset Button, Clear CMOS, Q-Flash Plus |
| Hardware Monitoring | |
| Monitoring Features | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Noise Detection |
| BIOS | |
| BIOS | AMI UEFI BIOS |
| BIOS Flash | 512 Mbit Flash |
| Special Features | |
| Software Support | GIGABYTE Control Center (GCC) |
| Features | Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | |
| Included Software | Norton® Internet Security (OEM Version) |
| Operating System | |
| Supported OS | Windows 11 64-bit |
| Form Factor | |
| Size | ATX Form Factor – 30.5cm x 24.4cm |
