Description
| Specifications | |
|---|---|
| Processor & Chipset | |
| CPU Socket | AMD Socket AM4 |
| Supported Processors | AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 G-Series Processors AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | |
| Memory Slots | 4 × DDR4 DIMM |
| Maximum Memory | 128GB (4 × 32GB) |
| Memory Speed | DDR4 2133–3200MHz (Native), up to DDR4-4733MHz (OC) |
| Memory Architecture | Dual Channel |
| Memory Support | ECC & Non-ECC Unbuffered DIMM, XMP Support |
| Onboard Graphics | |
| Integrated Graphics | AMD Radeon™ Graphics (APU Required) |
| DisplayPort | 1 × DisplayPort 1.4 (Up to 5120 × 2880 @ 60Hz) |
| HDMI | 1 × HDMI 2.1 (Up to 4096 × 2160 @ 60Hz) |
| Maximum Shared Memory | 16GB |
| Audio | |
| Audio Codec | Realtek® ALC1220 High Definition Audio |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel |
| Special Feature | DSD Audio Support |
| Networking | |
| LAN | Realtek® Gigabit Ethernet (10/100/1000 Mbps) |
| Wireless | Realtek® Wi-Fi 5 (802.11ac Dual-Band 2.4GHz / 5GHz) |
| Bluetooth | Bluetooth 5.0 |
| Expansion Slots | |
| PCIe Slots | 1 × PCIe 4.0 x16 (Ryzen 5000/3000 Series) 1 × PCIe 3.0 x16 (x4 Mode) 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slots | 2 × M.2 Socket 3 (2280) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (NVMe & SATA) |
| USB | |
| Rear USB | 4 × USB 3.2 Gen 1 2 × USB 2.0 |
| Internal USB | 1 × USB Type-C (USB 3.2 Gen 1) 2 × USB 3.2 Gen 1 2 × USB 2.0 |
| Internal Connectors | |
| Power Connectors | 24-pin ATX, 8-pin ATX 12V |
| Cooling Headers | 1 × CPU Fan, 2 × System Fan |
| RGB Headers | 2 × Addressable RGB, 2 × RGB, 1 × CPU Cooler LED/RGB |
| Storage Headers | 2 × M.2, 4 × SATA |
| Additional Headers | Front Panel Front Audio USB Type-C Header USB 3.2 Gen 1 Header USB 2.0 Header TPM Header Serial Port Header Clear CMOS Jumper Q-Flash Plus Button |
| Rear I/O Ports | |

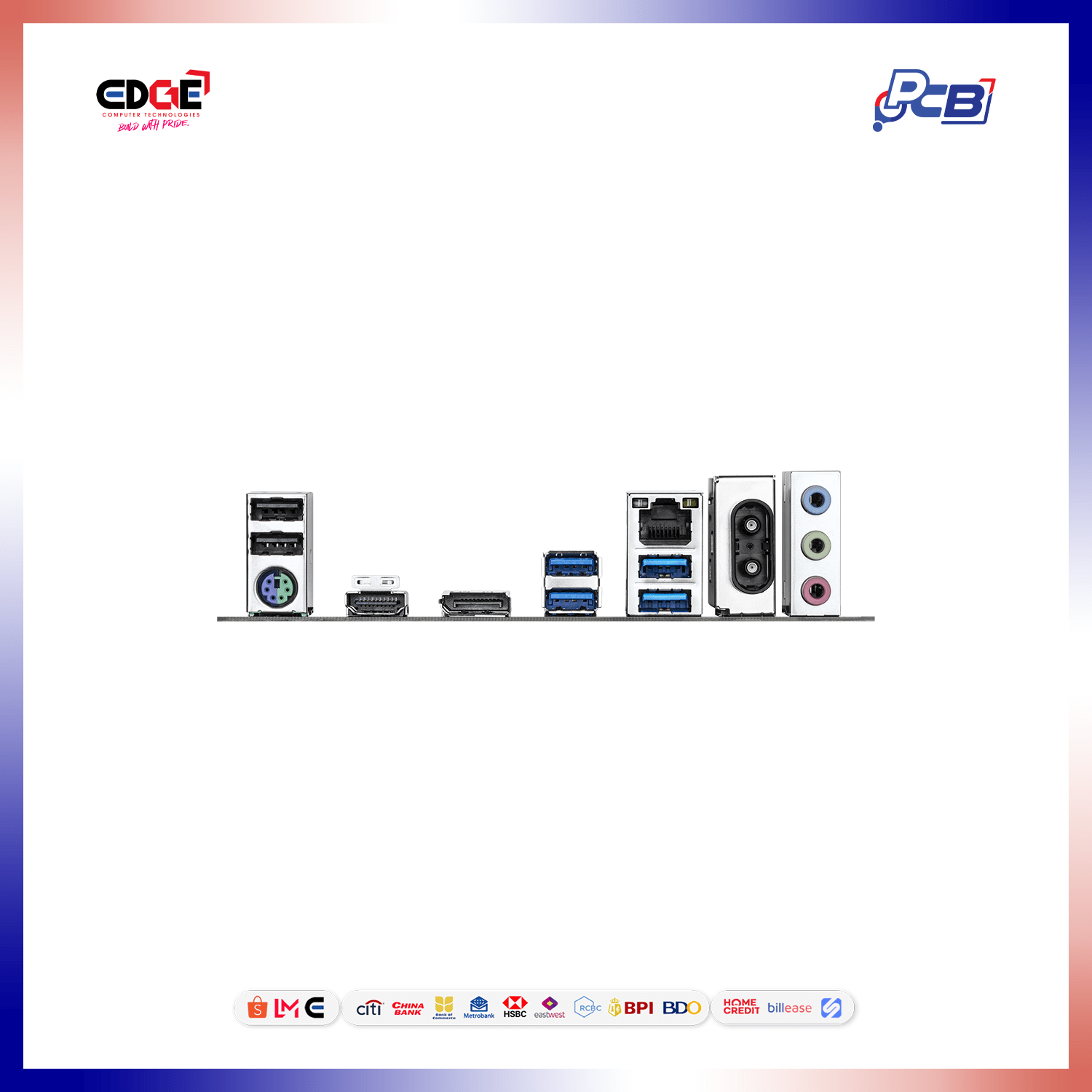

| Rear Ports | 2 × USB 2.0 4 × USB 3.2 Gen 1 1 × HDMI 1 × DisplayPort 1 × PS/2 Combo Port 1 × RJ-45 LAN 2 × Wi-Fi Antenna Connectors 3 × Audio Jacks |
| Monitoring & BIOS | |
| Hardware Monitoring | Voltage, Temperature, Fan Speed, Overheating Warning, Fan Failure Warning, Smart Fan Control |
| BIOS | 128 Mbit AMI UEFI BIOS |
| Software & Features | |
| Exclusive Features | APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Physical Characteristics | |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 24.4 cm |
