Description
| Input Voltage | 230VAC |
| Frequency | 50Hz – 60Hz (auto sensing) |
| Voltage Range | 170 – 280VAC |
| Capacity VA/Wattage | 650VA / 390W |
| Transfer Time | 2 – 6 ms (typical), 12 ms (max) |

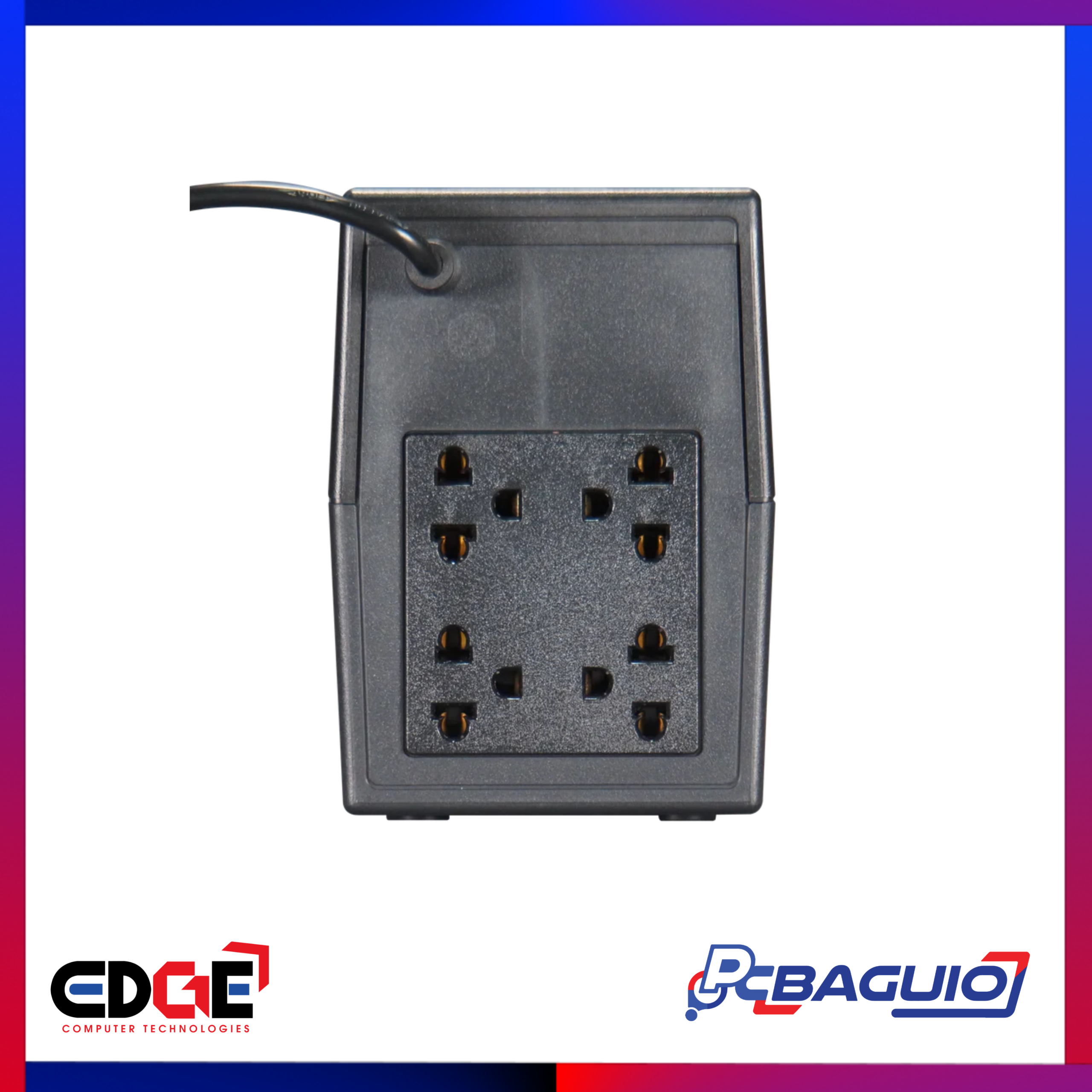

| Outlet Socket | Back-up x4 / Bypass x4 (total 8 sockets) |
| Plug & Socket | NEMA 5-15p to C13 plug, IEC C14 input socket & NEMA 5-15r output socket |
| Back up time | 6 – 30 mins depending on computer load |
| Wave Form | Pure Sine Wave under main mode, Simulated Sine Wave under battery mode |
| Protection | Discharge, overcharge, overload protection |
| Indicator | AC mode: Green LED, Battery mode: Yellow LED flashing, Fault mode: Red LED |
| Audible Alarm | Backup mode: every 10 secs, Low Battery: every 1 sec, Overload: every 0.5 sec, Fault: continuous |
| Noise Level | Less than 45 dB |
| Battery | 12V/7Ah x1, Sealed lead acid, maintenance-free, auto-inspection, discharge protection, battery fault caution, typically charged once every 3 months |
| Recharge Time | Typical 6 – 8 hrs to 90% after complete discharge |
| Dimension | L293 x W202 x H93 mm |
| Mounting | Flat surface & Wall mountable |
