Description

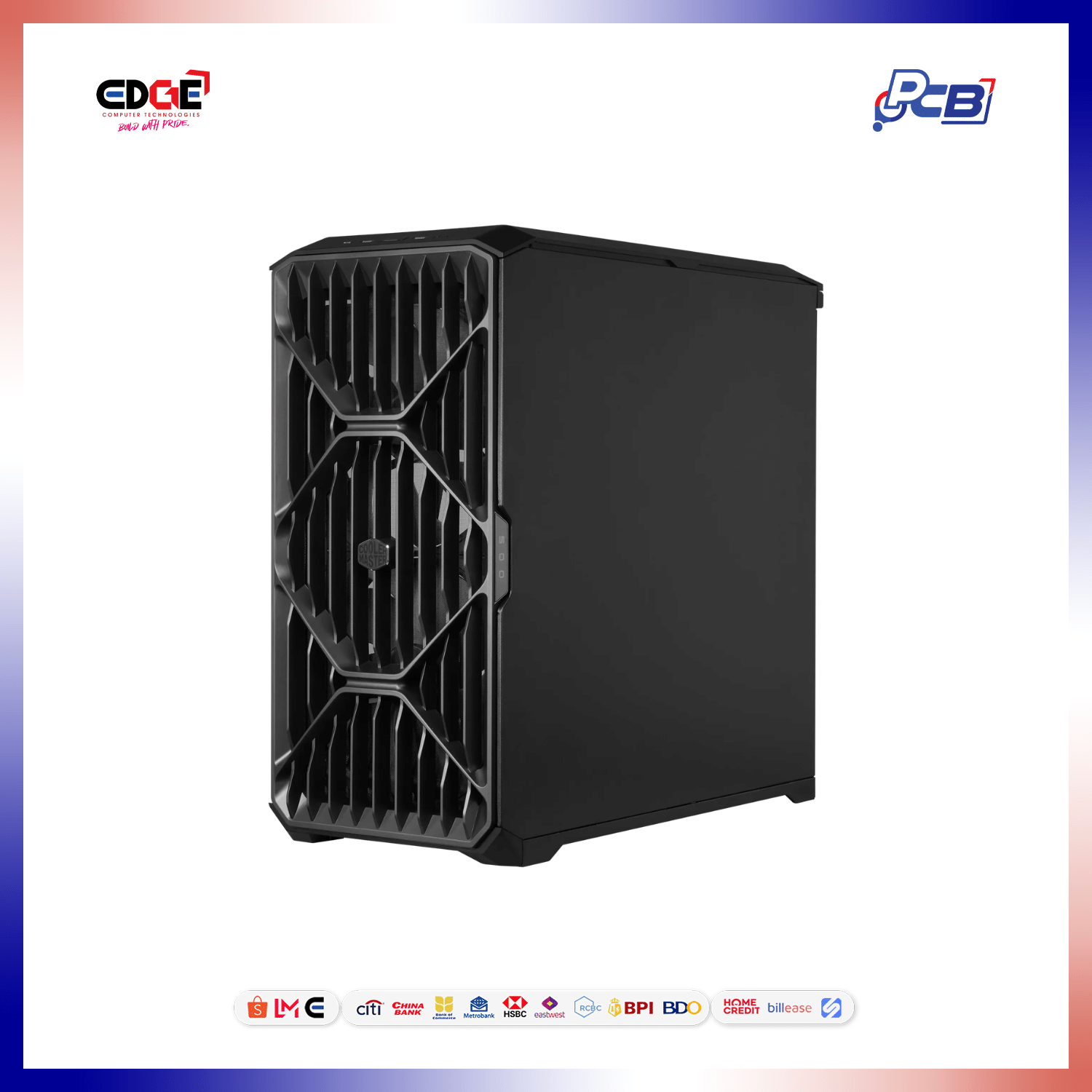

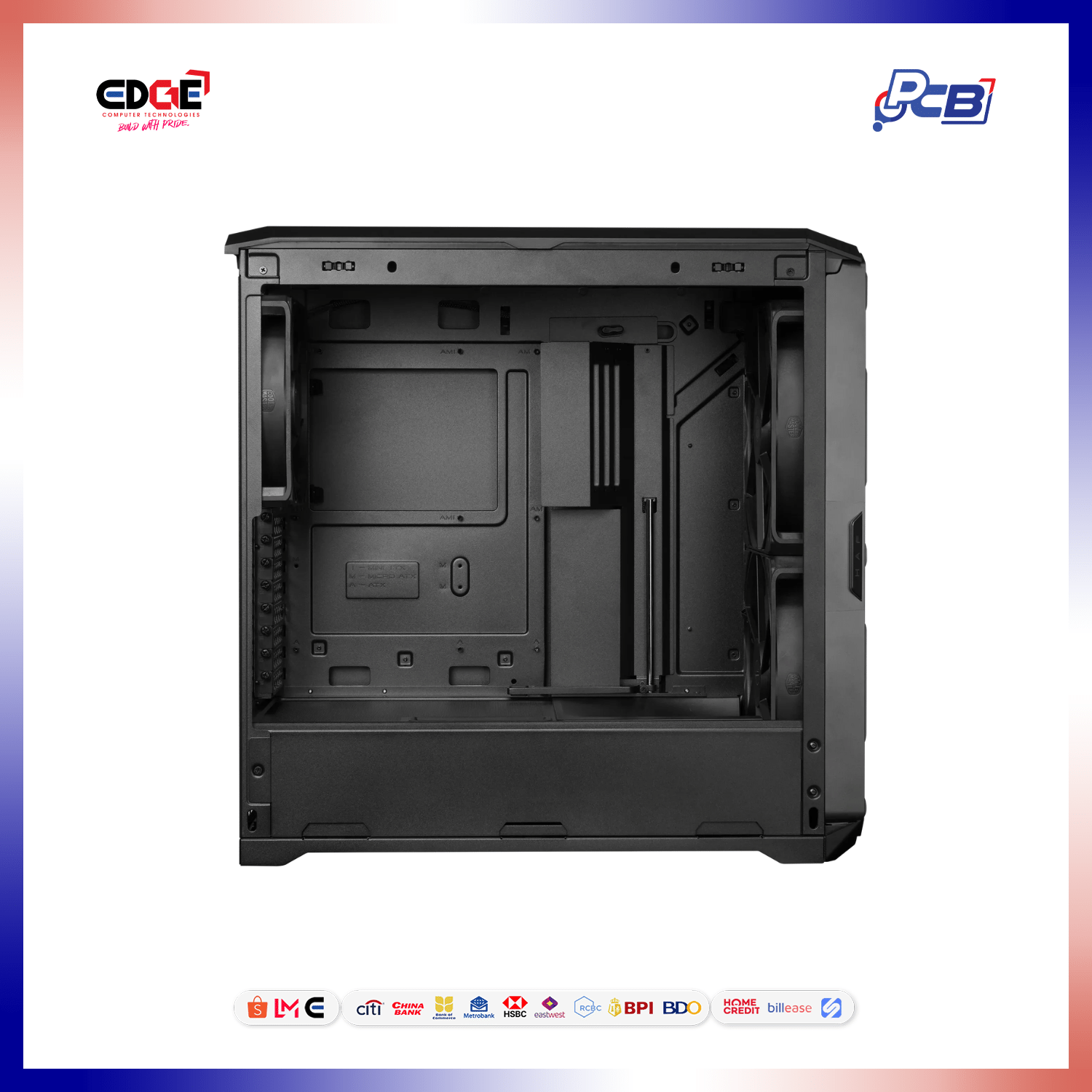

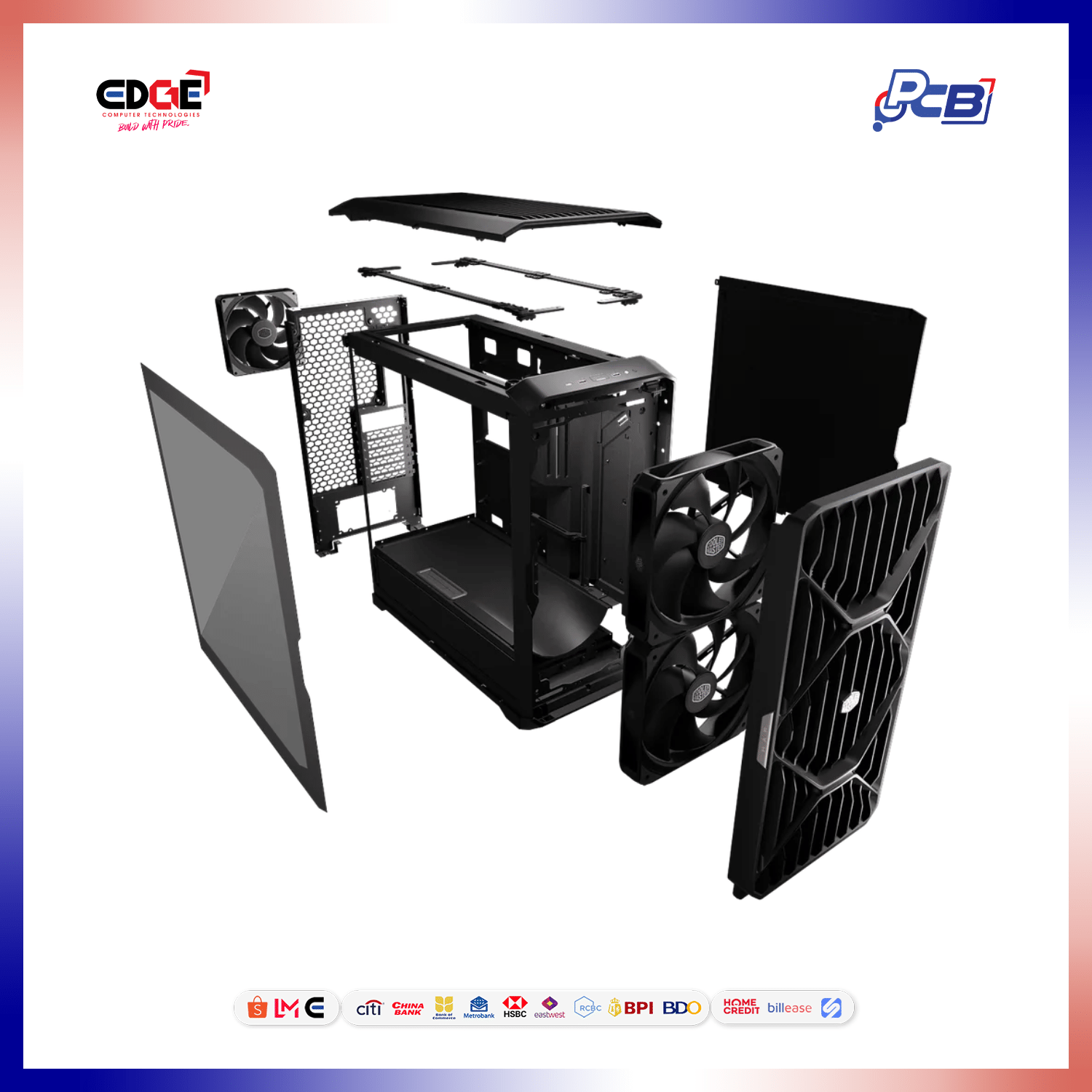

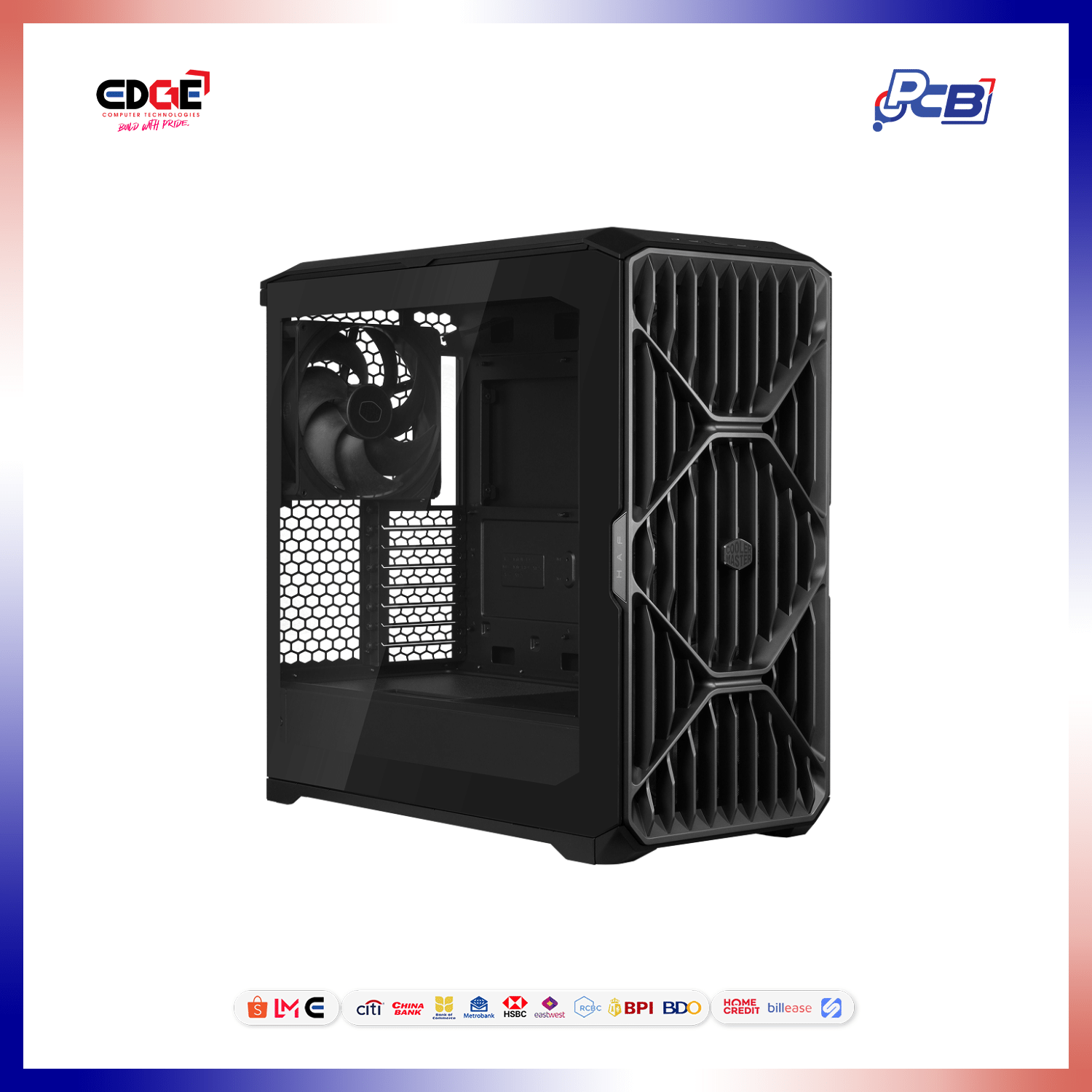

| Product Name | HAF II 500 |
|---|---|
| Dimensions (L × W × H), incl. protrusions | 557 × 262 × 548 mm |
| Volume | 79.98 L |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB (ATX-compatible standoff pattern), E-ATX up to 310 mm wide (ATX-compatible standoff pattern) |
| Materials | SGCC chassis (0.7–0.8 mm), ABS panel, tempered-glass left side panel, SGCC right side panel |

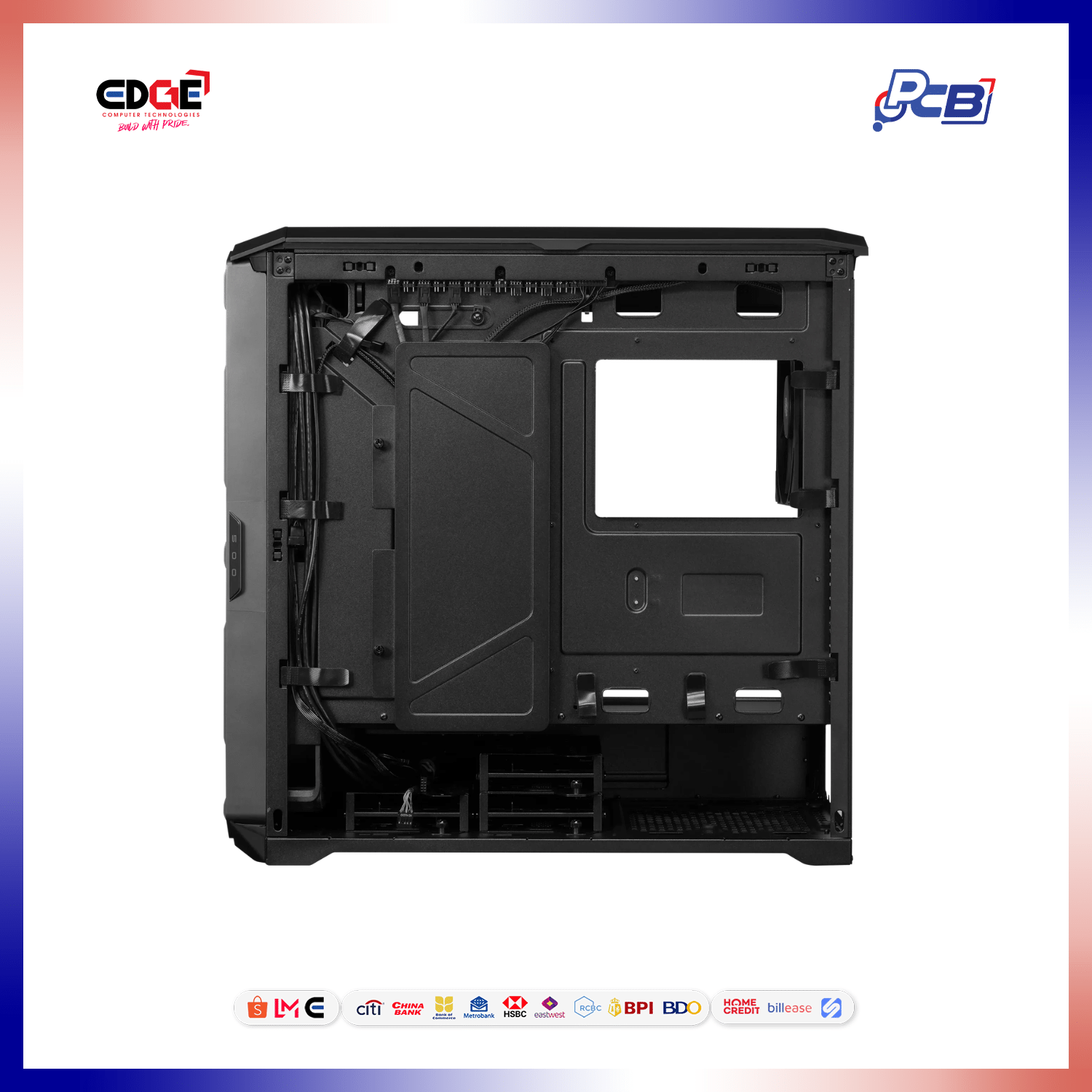

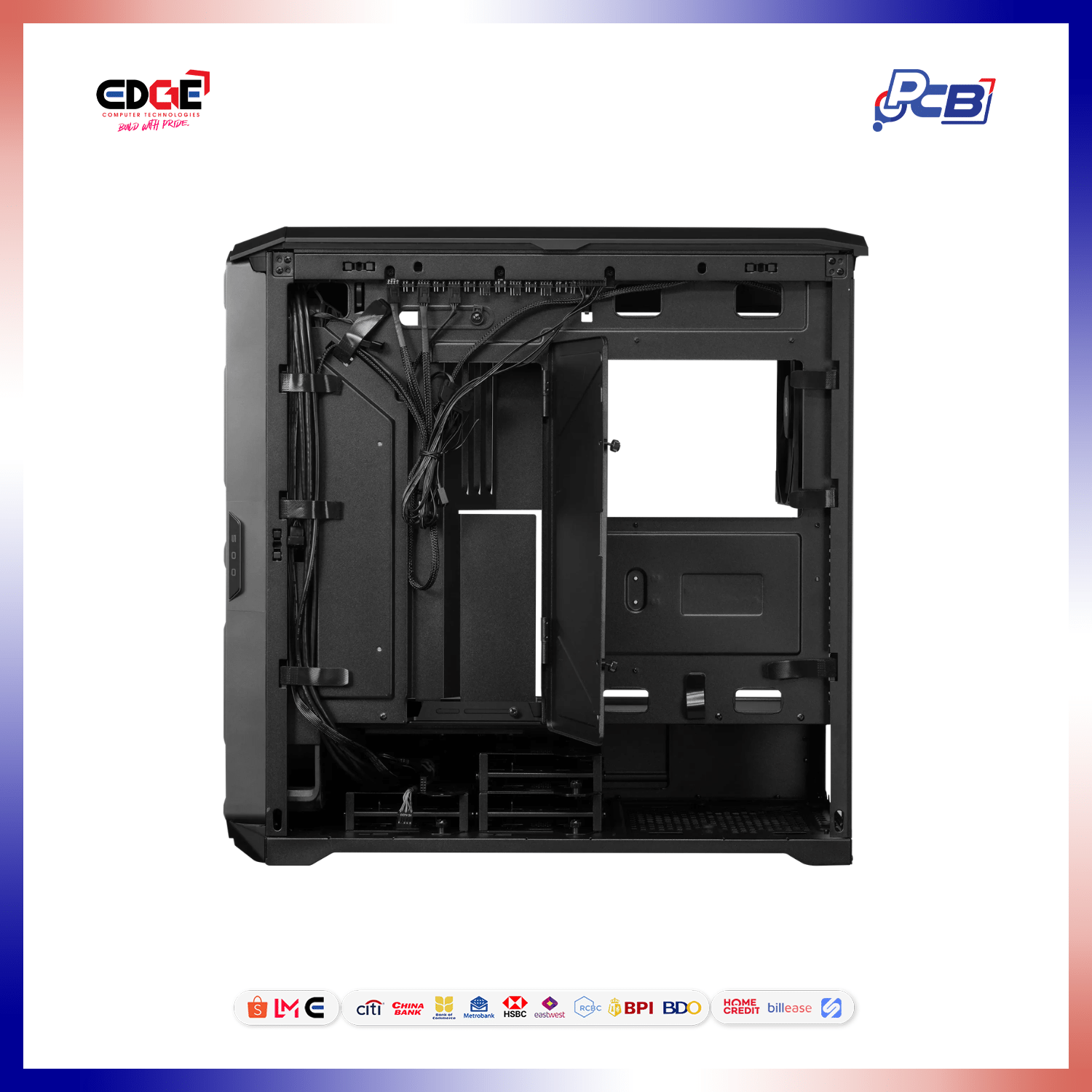

| Clearance | Cable routing: 15–40 mm · CPU cooler: 221 mm Intel / 220 mm AMD · PSU: 150 mm north-south drive orientation / 210 mm east-west · GPU length: 430 mm with Mighty40 F220 fans installed |
| GPU Thickness | 72 mm per card when installing 2 GPUs; 40 mm per card when installing 4 GPUs |
| Dust Filters | Top / Front / Bottom (PSU) |
| Expansion Slots | 8 |
| Drive Bay Support — 3.5” / 2.5” | 3 / 6 with PSU ≤150 mm; 2 / 4 with PSU over 150 mm and ≤210 mm |
| Top Fan Support | 3 × 120 / 140 mm, or 2 × 160 / 180 mm |
| Front Fan Support | Default: 2 × 220 mm; with MasterRail: 3 × 120 / 140 mm, or 2 × 160 / 180 mm |
| Rear Fan Support | 1 × 180 mm |

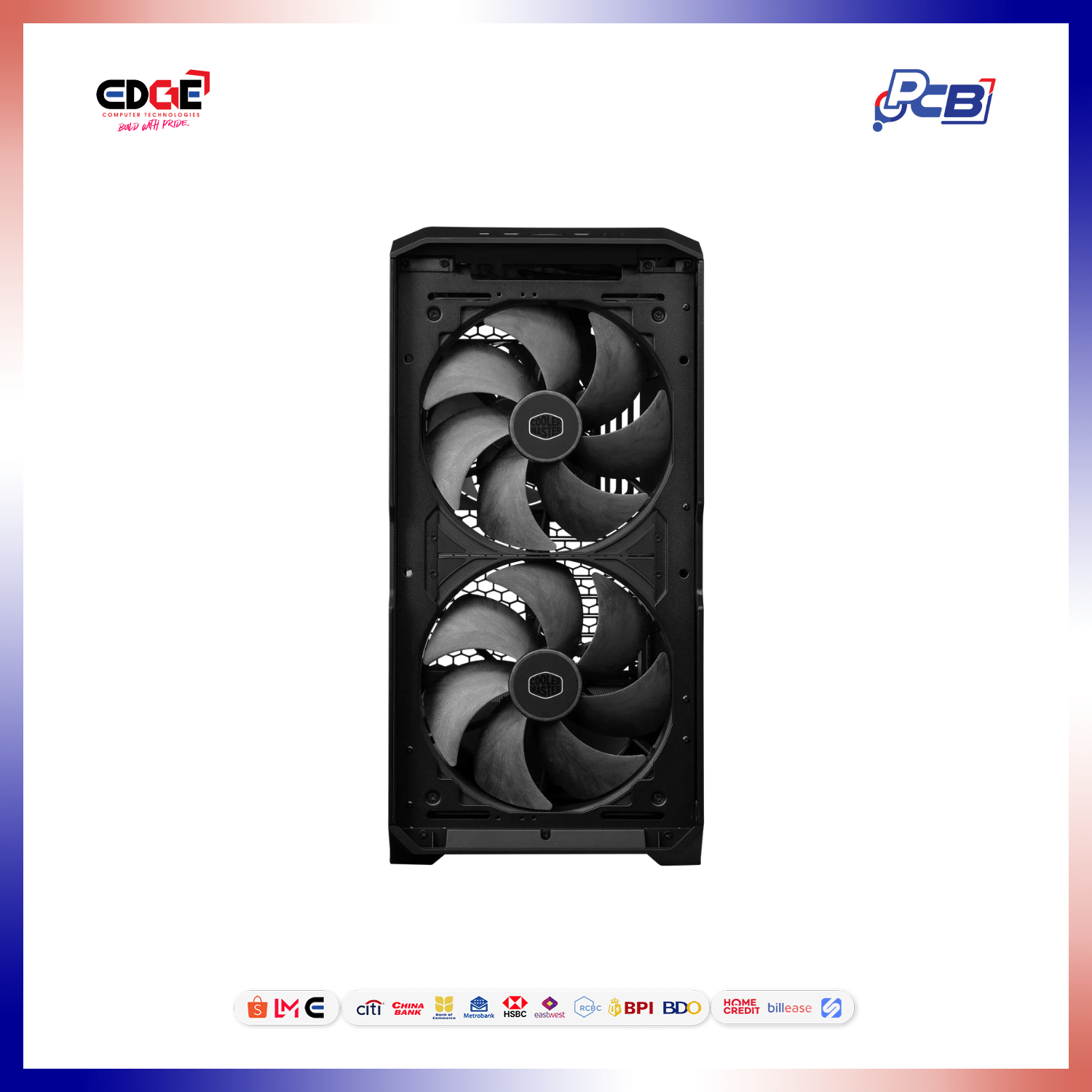

| Fans | Front: 2 × Mighty40 F220 · Rear: 1 × Mighty40 V180 |
| Fan Hub | 6 × PWM + 6 × ARGB ports; 54 W total power capacity |
| Radiator Support | Top: 240 / 280 / 360-120 / 360-180 mm (conditional) · Front with MasterRail: 240 / 280 / 360-120 / 360-180 mm (conditional) |

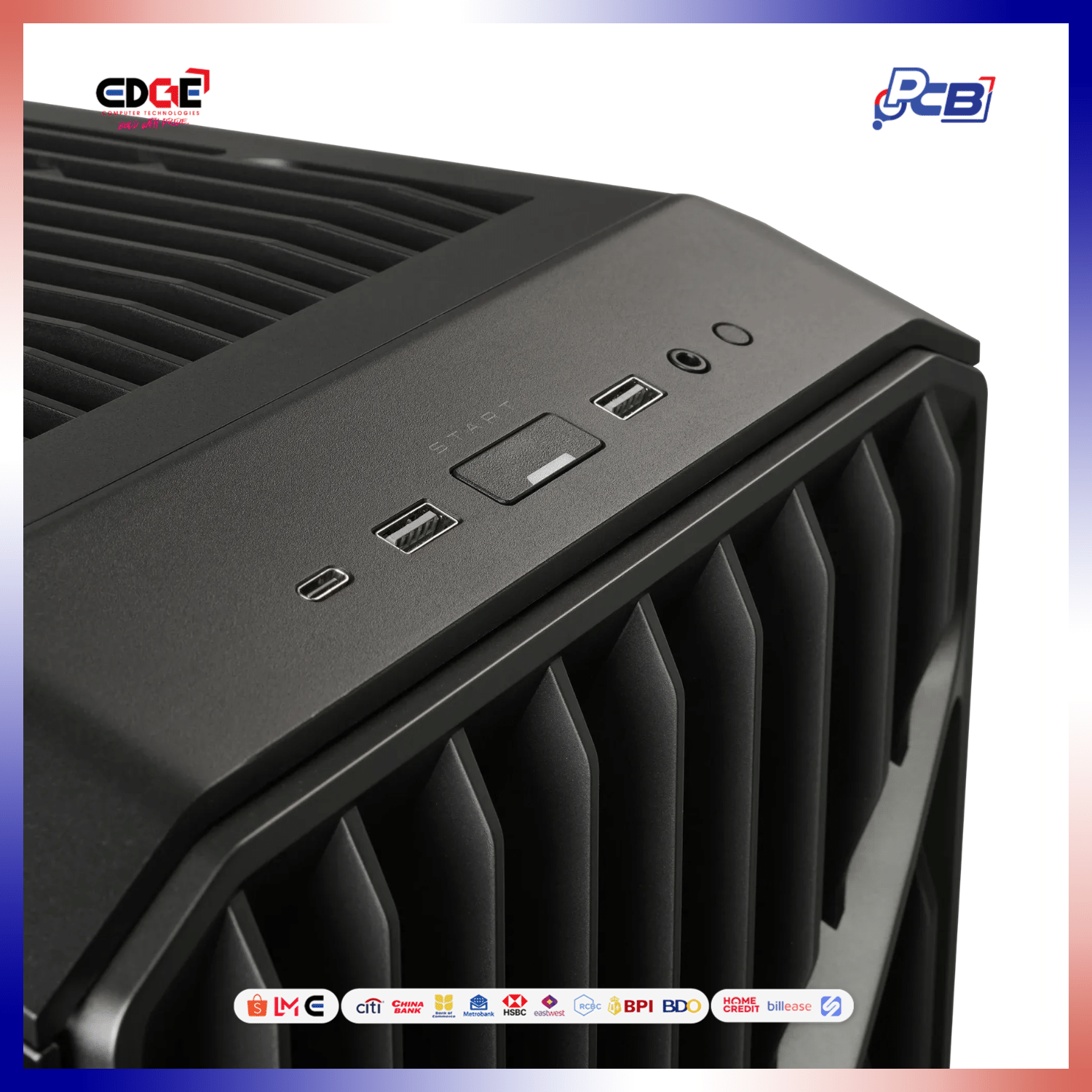

| Front I/O | 1 × USB 3.2 Gen 2×2 Type-C · 2 × USB 3.2 Gen 1 Type-A · 1 × 3.5 mm headset jack · Power LED · Reset switch |
