Description
| GENERAL SPECIFICATIONS | |
|---|---|
| TIM | MX-6 (0.8 g) |
| Operating Ambient Temperature | 0—40 °C |
| Pump | 800–2800 rpm (PWM controlled) |
| Current | Voltage | 0.35 A | 12 V DC |
| Cold Plate | Copper, Micro Skived Fins |
| Tube Length | 450 mm |
| Tube Diameter | Outer: 12.4 mm Inner: 6.0 mm |
| Weight | 2005 g |
| COMPATIBILITY | |
|---|---|
| Intel | LGA1851, LGA1700 |
| AMD | AM5, AM4 |
| PI | NNPI | 396 | 326 |
| RADIATOR | |
|---|---|
| Material | Aluminium |

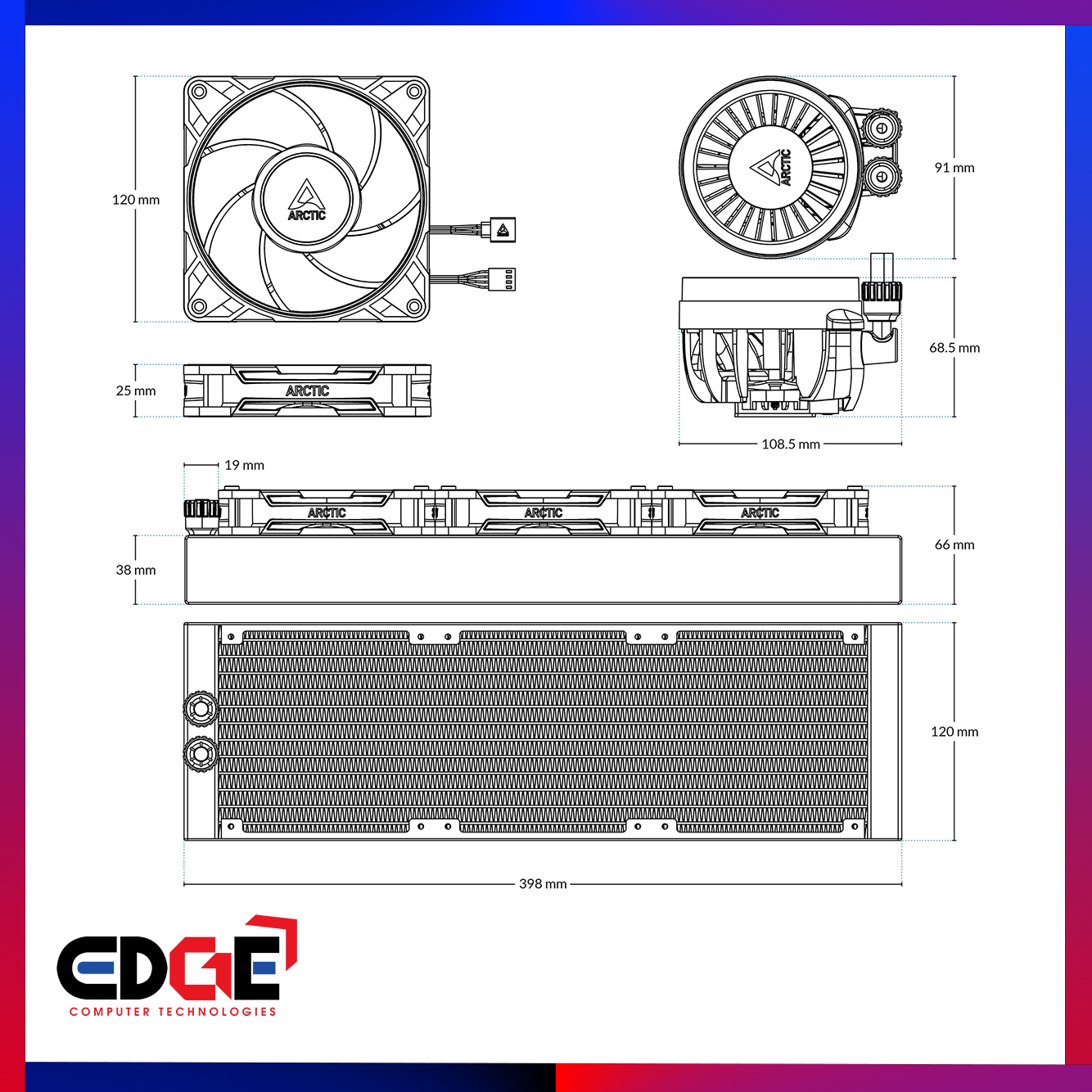

| Dimensions | 398 (L) x 120 (W) x 38 (H) mm |
| VRM Module | |
|---|---|
| VRM Fan | 400—2500 rpm (PWM controlled) |
| Current | Voltage | 0.05 A | 12 V DC |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 A | 5 V DC |
| RADIATOR FAN | |
|---|---|
| General | 3x P12 Pro A-RGB |
| Speed | 600–3000 rpm |
| Air Flow | 77 cfm | 131 m³/h3/h |
| Static Pressure | 6.9 mmH2O |
| Bearing | Fluid Dynamic Bearing |
| Current | Voltage | 0.33 A | 12 V DC |
| Connector | 4-Pin Fan Plug |
| RGB | |
|---|---|
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 V | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
