Description
| Specifications | |
|---|---|
| General | |

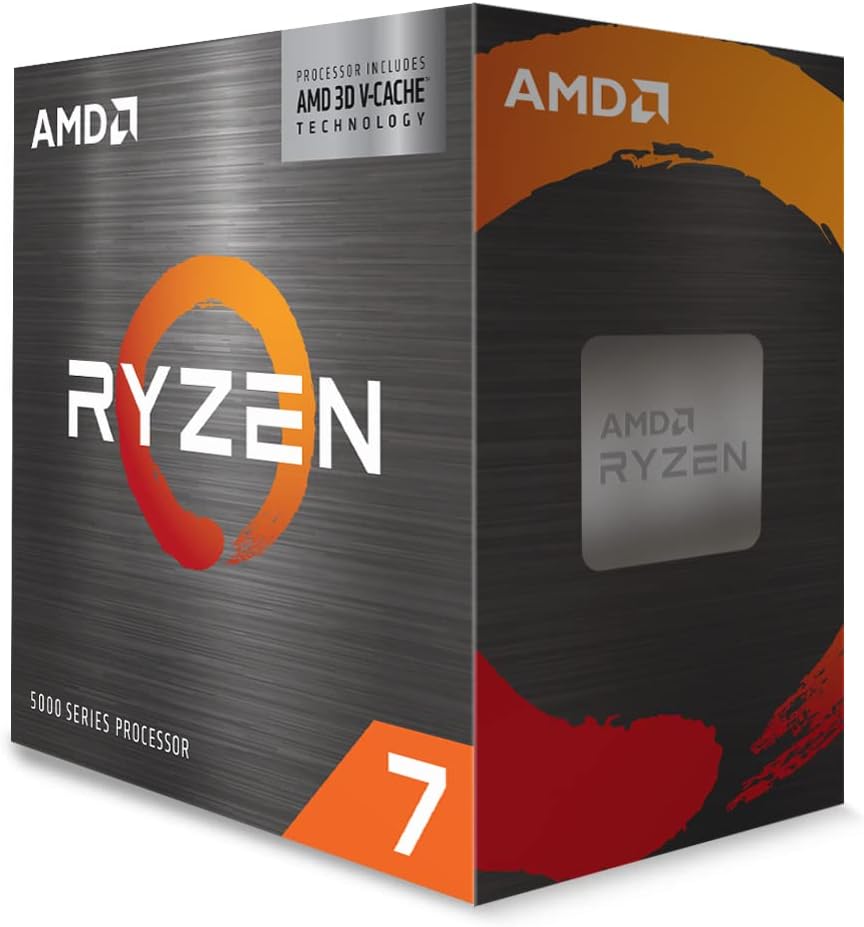

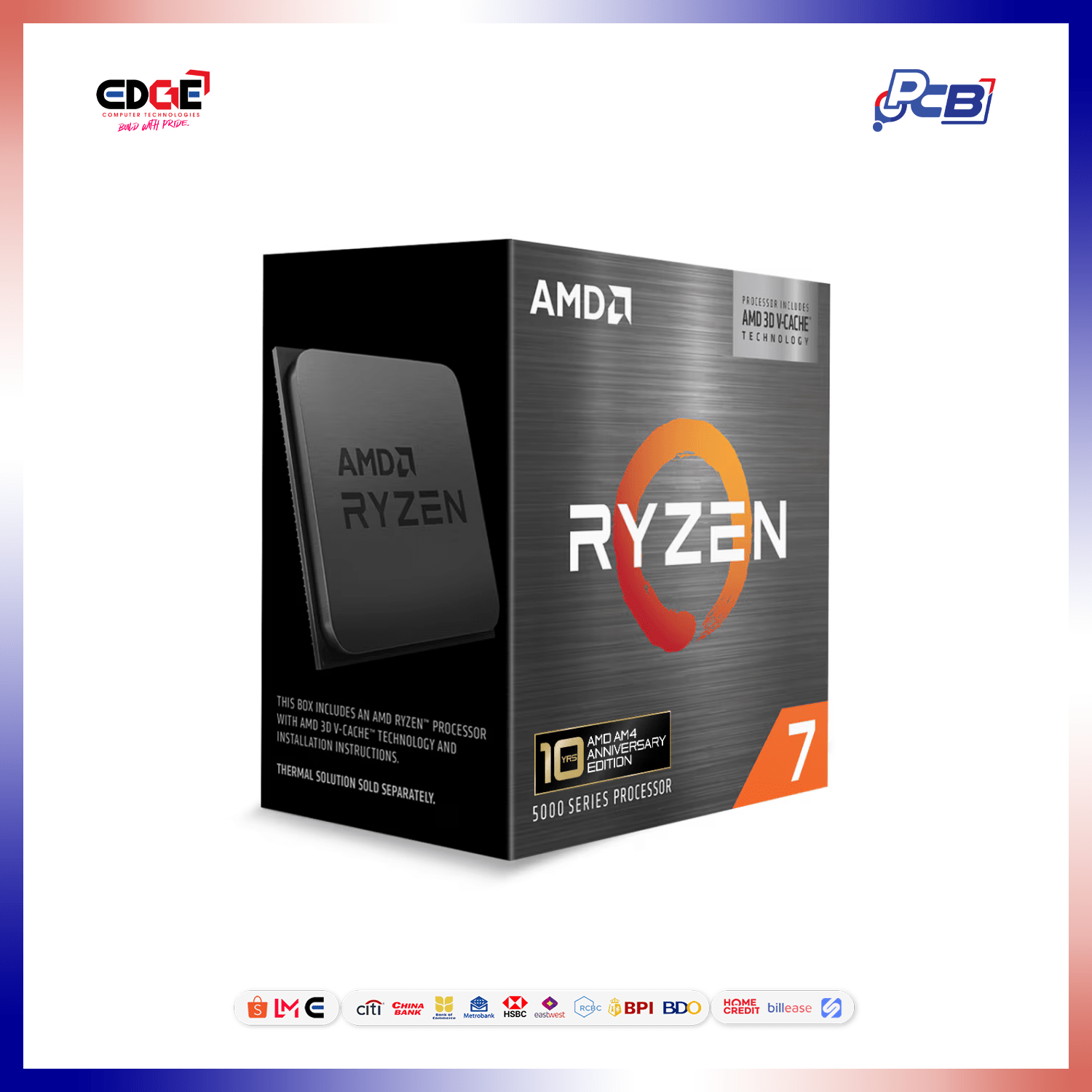

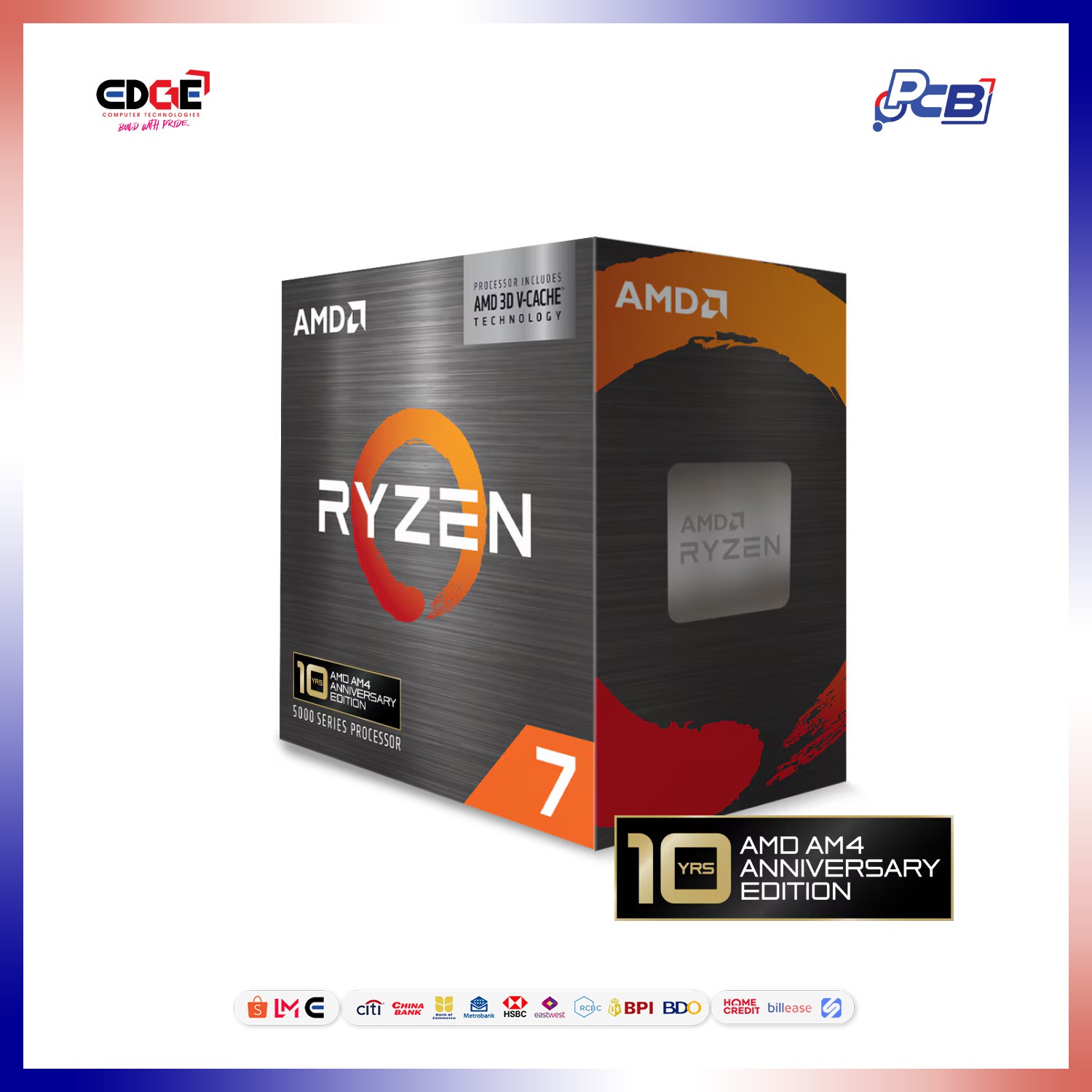

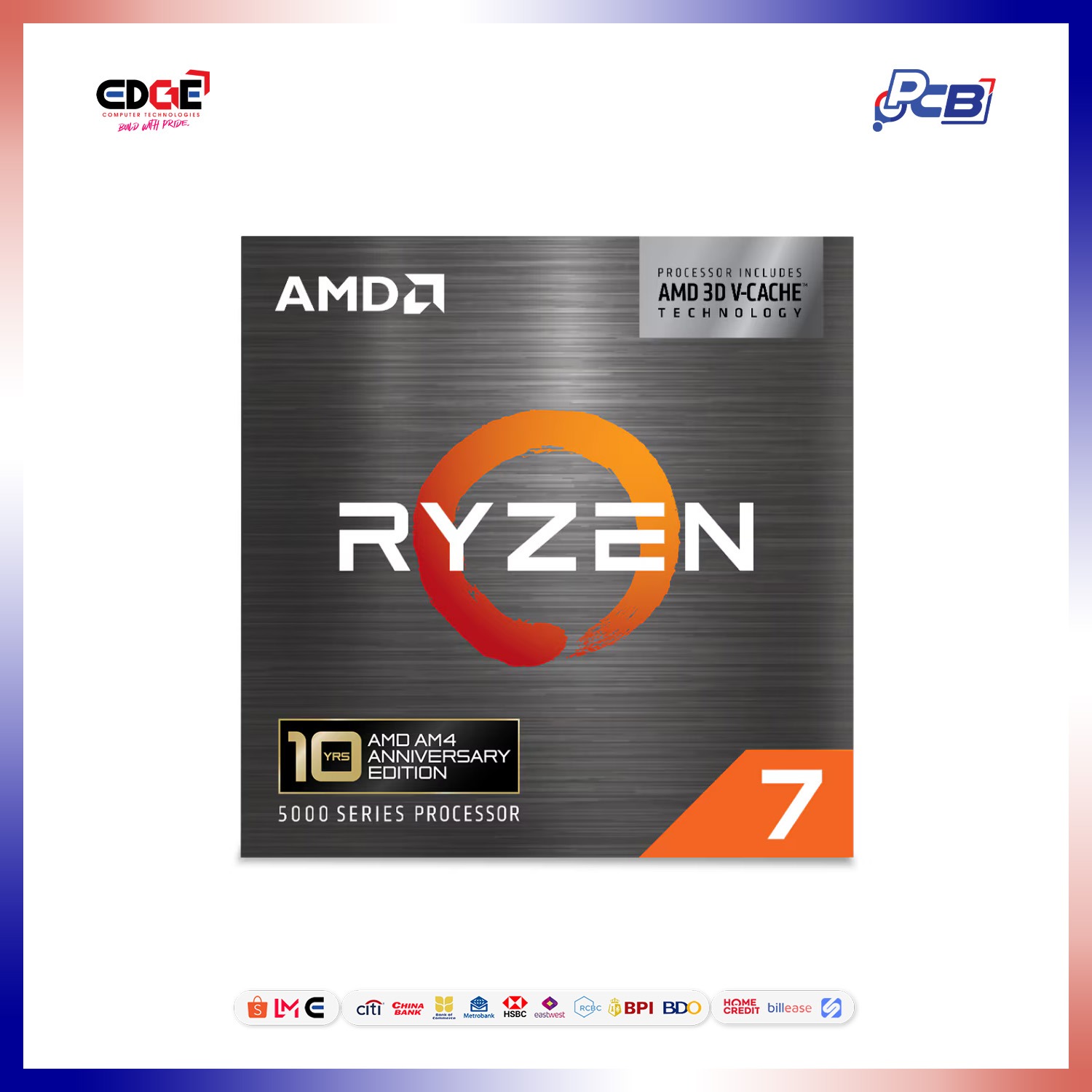

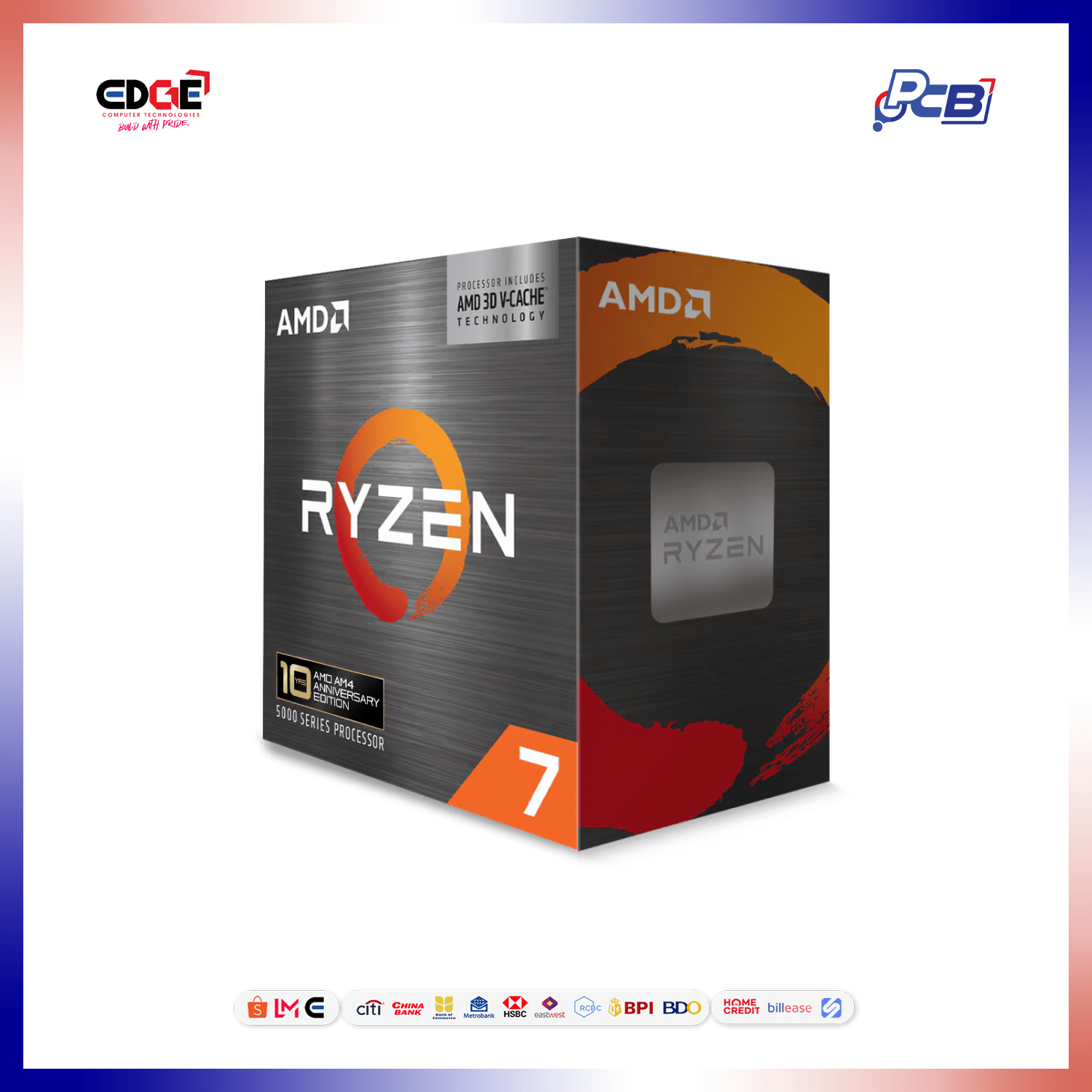

| Name | AMD Ryzen™ 7 5800X3D |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Regional Availability | Global, China, NA, EMEA, APJ, LATAM |
| Former Codename | Vermeer |
| Processor Architecture | Zen 3 |
| Launch Date | April 20, 2022 |
| Processor Performance | |
| CPU Cores | 8 |
| Threads | 16 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.4 GHz |
| Max. Boost Clock | Up to 4.5 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 96 MB |
| Default TDP | 105W |
| CPU Boost Technology | Precision Boost 2 |
| Architecture & Technology | |
| CPU Core Process Technology | TSMC 7nm FinFET |
| I/O Die Process Technology | 12nm (GlobalFoundries) |
| CPU Compute Die (CCD) Size | 74 mm² |
| I/O Die (IOD) Size | 125 mm² |
| Package Die Count | 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Socket & Chipset Compatibility | |
| CPU Socket | AM4 |
| Supported Chipsets | X570, X470, B550, B450, A520 |
| Thermal Specifications | |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 90°C |
| Memory | |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Maximum Memory | 128 GB |
| Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R: DDR4-3200 2x2R: DDR4-3200 4x1R: DDR4-2933 4x2R: DDR4-2667 |
| ECC Support | Yes (Requires motherboard support) |
| Expansion & Connectivity | |
| PCI Express® Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total / Usable) | 24 / 20 |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 0 |
| Native SATA Ports | 2 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Additional Usable PCIe Lanes from Motherboard | X570: 16x Gen 4 X470: 2x Gen 3, 8x Gen 2 |
| Graphics | |
| Graphics Model | Discrete Graphics Card Required |
| Operating System Support | |
| Supported Operating Systems | Windows 11 64-Bit Edition Windows 10 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit |
| Product Identification | |
| Product ID (Boxed) | 100-100000651POF |
| Product ID (Tray) | 100-000000651 |
| Supported Technologies | |
| Technologies | AMD 3D V-Cache™ Technology, Windows® 11 Gaming, AMD Ryzen™ VR-Ready Premium |
