Description
| Specification | Details |
|---|---|

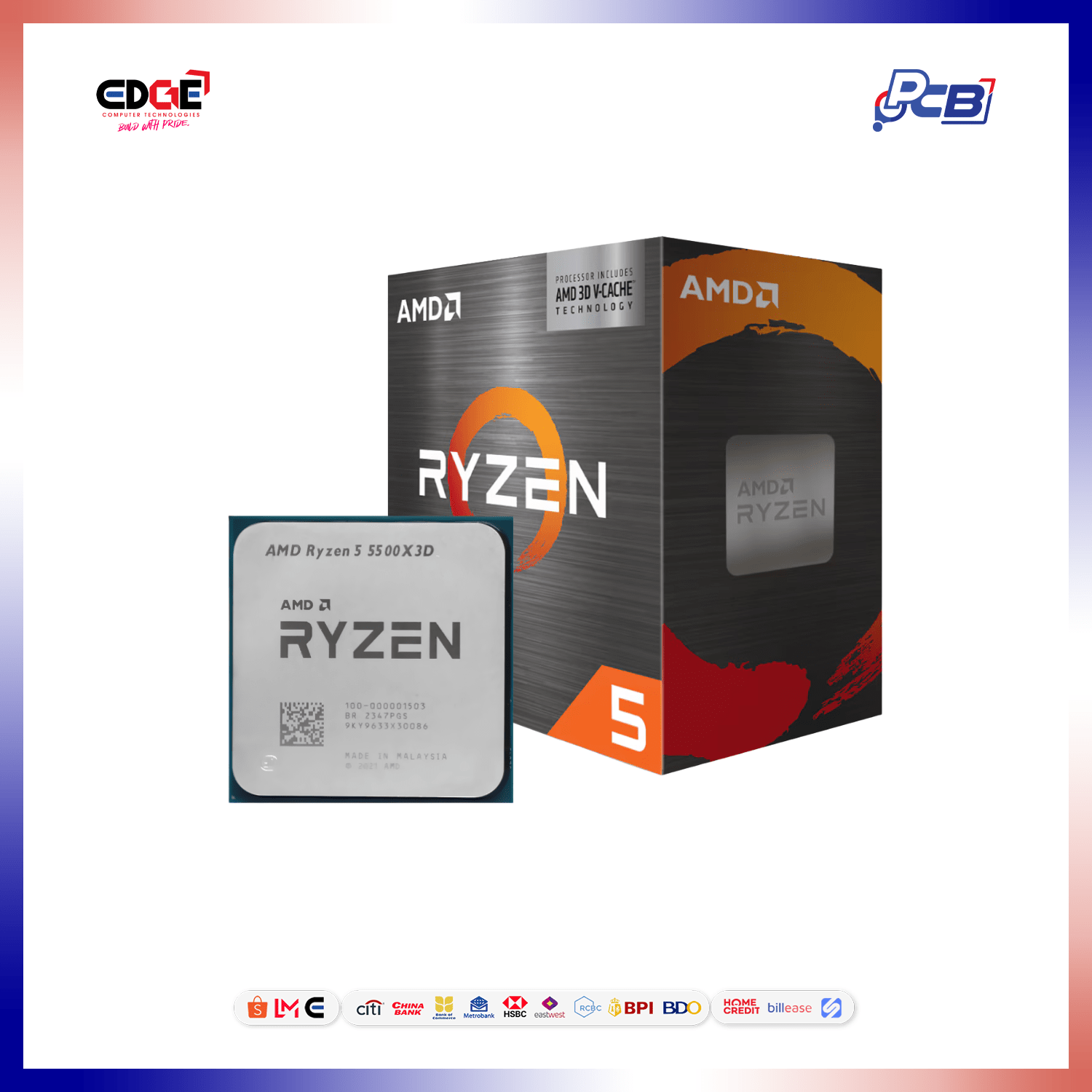

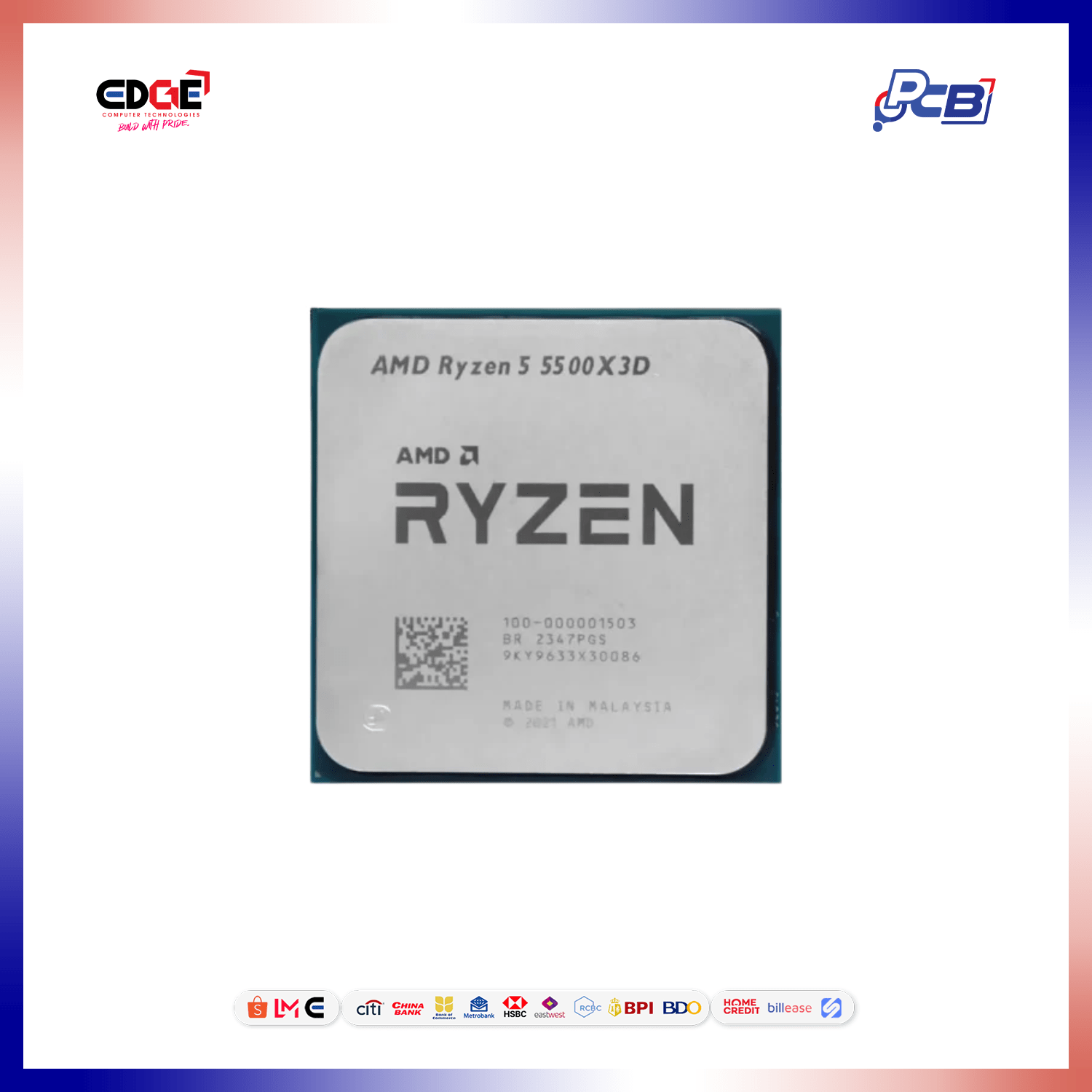

| Name | AMD Ryzen™ 5 5500X3D |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Regional Availability | LATAM |
| Former Codename | Vermeer |
| Processor Architecture | Zen 3 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4 GHz |
| Base Clock | 3 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 3 MB |
| L3 Cache | 96 MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 2 |
| CPU Socket | AM4 |
| Supporting Chipsets | X570, X470, X370, B550, B450, B350, A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature | 90°C |
| Launch Date | 6/5/2025 |
| *OS Support | Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
