Description
SPECIFICATIONS
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (full modular) |
| FAN SIZE | 120 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DxWxH) | 140 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| POWER WATT | 850W |
| POWER EXCURSION | 1700W (*up to 200% of the PSU’s rated power for 100μs) |
| INPUT FREQUENCY RANGE | 47-63Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |

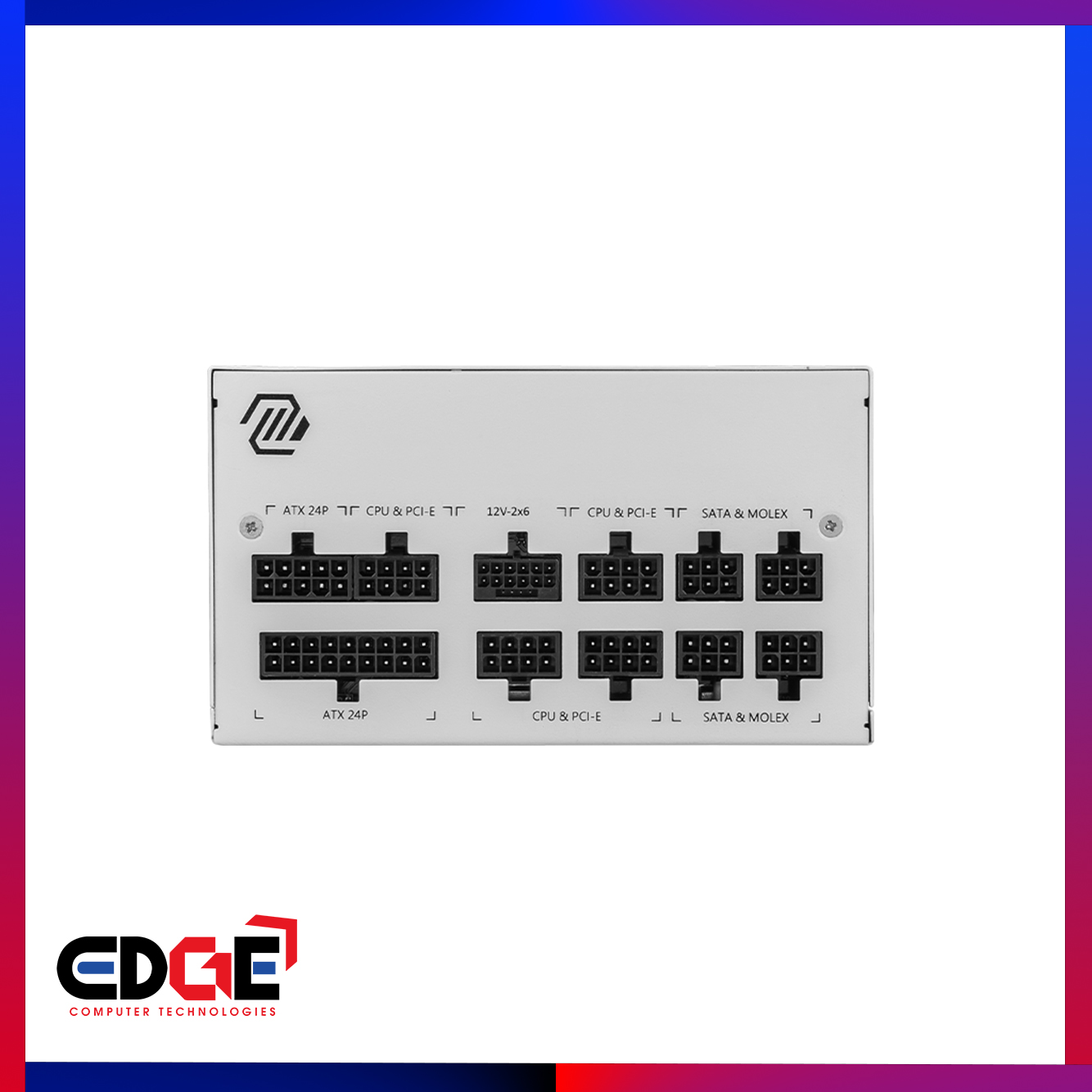

| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 (600W) |
| PCI-E (6+2 PIN) | 4 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
vayne213 –
I recently brought one last June 2025 for my 9070xt, so far I have not experienced any inconvenience when using it. I would highly recommend this product if you ever needed a 850w PSU! Cheers!
