Description
| Monitor Specifications | |
|---|---|
| General | |
| Screen Size | 23.8-inch (604.5 mm Viewable) |
| Native Resolution | 1920 × 1080 (Full HD) |
| Maximum Image Width | 527.0 mm (20.75 in.) |
| Maximum Image Height | 296.5 mm (11.67 in.) |
| Pixel Pitch | 0.2745 (H) × 0.2745 (V) mm |
| Dimensions | |
| Width | 540.4 mm (21.28 in.) |
| Height | 408.3 ~ 543.3 mm (16.08 ~ 21.39 in.) |
| Thickness | 214.0 mm (8.43 in.) |

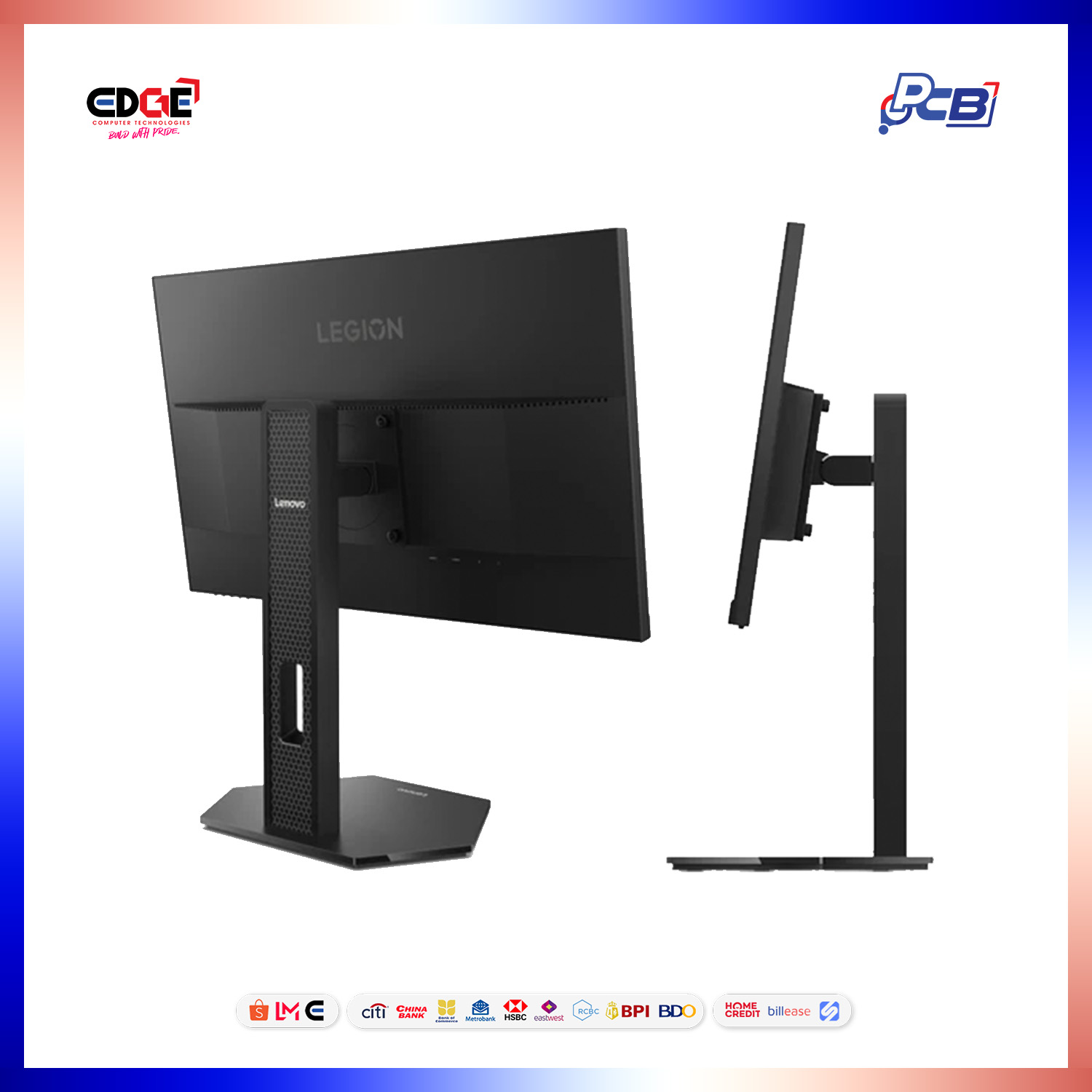

| Ergonomic Stand | |
| Tilt | -5° to +22° |
| Swivel | -30° to +30° |
| Pivot | -90° to +90° |
| Height Adjustment | 135 mm |

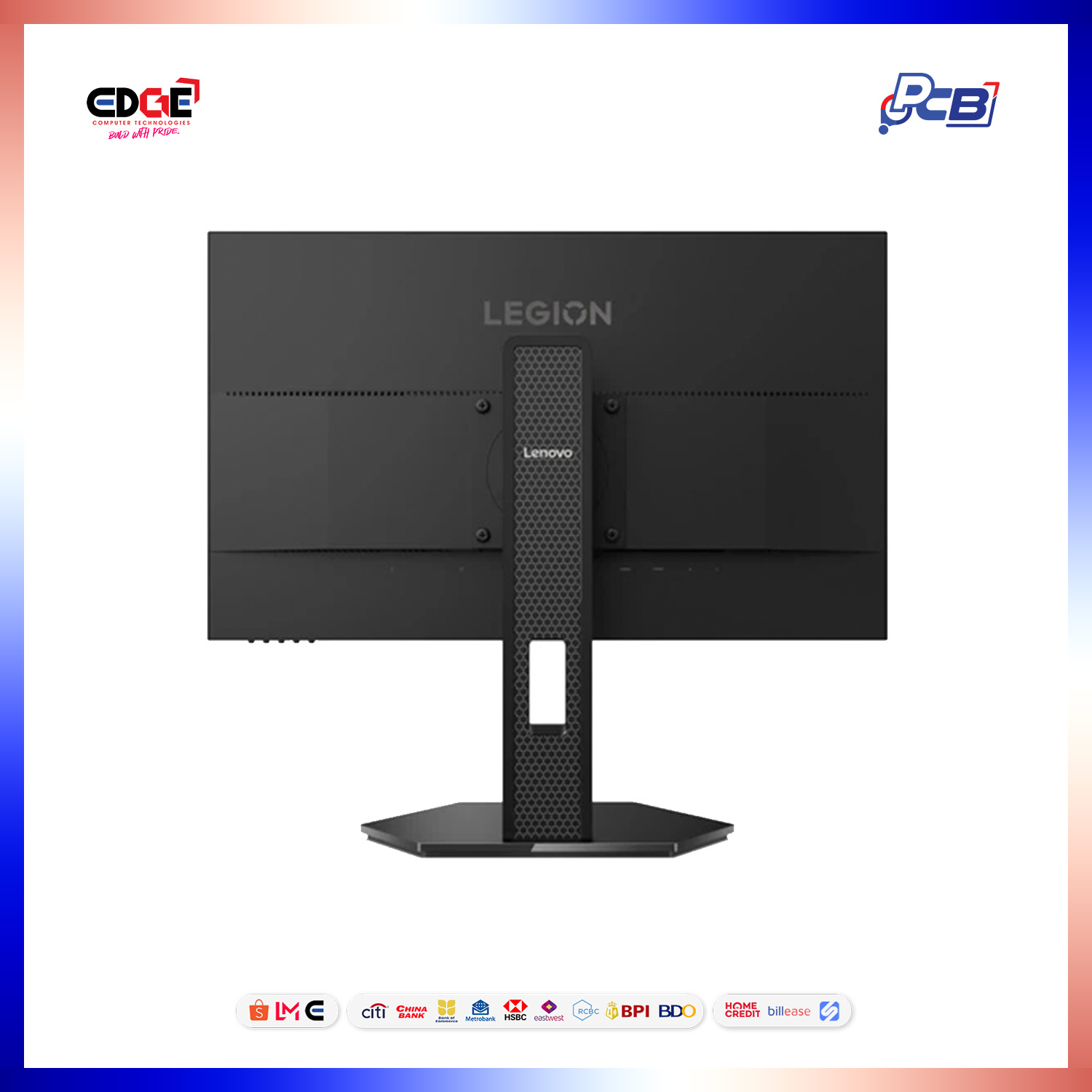

| VESA Mount | 100 × 100 mm |
| Power | |
| Power Input | 100–240V AC, 0.8A |
| Typical Power Consumption | <20 W |
| Maximum Power Consumption | <34 W |
| Standby Mode | <0.5 W |
| Power Off | <0.3 W |
| Display Inputs | |
| HDMI | 1 × HDMI |
| DisplayPort | 1 × DisplayPort (DP) |
| Maximum Resolution | 1920 × 1080 |
| Maximum Pixel Clock | 600 MHz (HDMI / DP) |
| Display Performance | |
| Horizontal Frequency | 30–255 kHz (HDMI), 255 kHz (DP) |
| Vertical Refresh Rate | 48–240 Hz |
| Native Resolution | 1920 × 1080 @ 60 Hz |
| Communication | VESA DDC/CI |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Transport Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10%–80% (Non-condensing) |
| Storage Humidity | 5%–95% (Non-condensing) |
| Transport Humidity | 5%–95% (Non-condensing) |
| Software Requirements | |
| Supported Operating Systems | Microsoft Windows 11 (64-bit), Microsoft Windows 10 (64-bit) |
| Package Contents | |
| Included Items | Monitor with Stand 1 × Power Cable (1.8 m) 1 × HDMI 2.0 Cable (1.8 m) Quick Setup Guide 4 × Mounting Screws Warranty Booklet |
